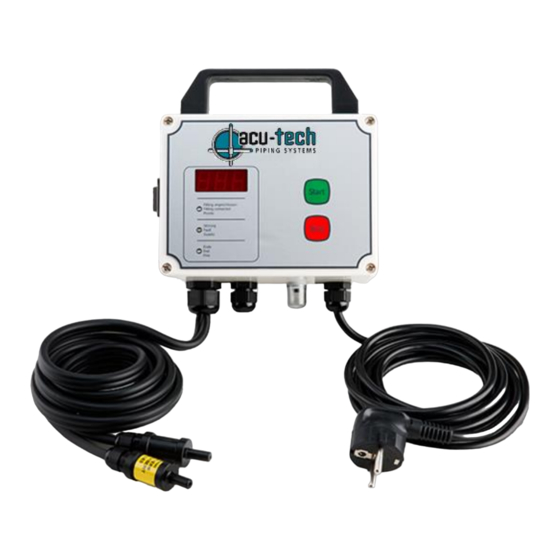

Acu-Tech EFD160 Electrofusion Drainage Welder Manual
The Acu-Tech EFD160 Electrofusion Drainage Welder contains an impressive array of unique characteristics.
Building on decades of experience, these welders have been developed and built in Germany, incorporating
a light-weight design with excellent performance.
Contents:
1. Introduction
2. Safety Messages
3. Operation
4. Error Codes
5. Technical Specifications
6. Service & Repair
1. Introduction
This product is designed exclusively for jointing PE discharge lines assembled with electrofusion fittings.
This product has been checked for operational, reliability and safety features are functioning correctly. In
the event of errors of handling or misuse, however, the following may be exposed to hazards:
▪ The operator's health,
▪ The product and other hardware of the operator,
▪ The efficient work of the product.
All persons involved in the installation, operation, maintenance, and service of the product must:
▪ Be properly qualified,
▪ Be able to operate the product only when observed,
▪ Read carefully and conform to the User's Manual before working with the product.
EFD160 Electrofusion Drainage Welder
Model EFD160
Version 1.1
Page 1 of 5
Advertisement
Related Manuals for Acu-Tech EFD160
Summary of Contents for Acu-Tech EFD160
- Page 1 Acu-Tech EFD160 Electrofusion Drainage Welder Manual Model EFD160 The Acu-Tech EFD160 Electrofusion Drainage Welder contains an impressive array of unique characteristics. Building on decades of experience, these welders have been developed and built in Germany, incorporating a light-weight design with excellent performance.
- Page 2 The product must not be sprayed with or immersed in water. Opening the Unit Caution: The cover of the product may be removed only by Acu-Tech Piping Systems personnel, or of a partner organization properly trained and approved by the manufacturer.
- Page 3 There is no properly established electrical contact between the welding unit and the fitting (check push-on terminal on fitting), or the heater coil is defective. 3. Low Voltage ( The input voltage is below 180 volts. Adjust generator output voltage. EFD160 Electrofusion Drainage Welder Version 1.1 Page 3 of 5...
- Page 4 We also declare that equipment manufacture complies to the directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (so-called RoHS Directive). EFD160 Electrofusion Drainage Welder Version 1.1 Page 4 of 5...
- Page 5 The manufacturer recommends having the product serviced at least every twelve months. Service and Repair Contact Acu-Tech Piping Systems 119 Kelvin Rd, Maddington, Western Australia, 6109. 1300 270 270 www.acu-tech.com.au sales@acu-tech.com.au EFD160 Electrofusion Drainage Welder Version 1.1 Page 5 of 5...
