Summary of Contents for Foxtech FH230 TIR

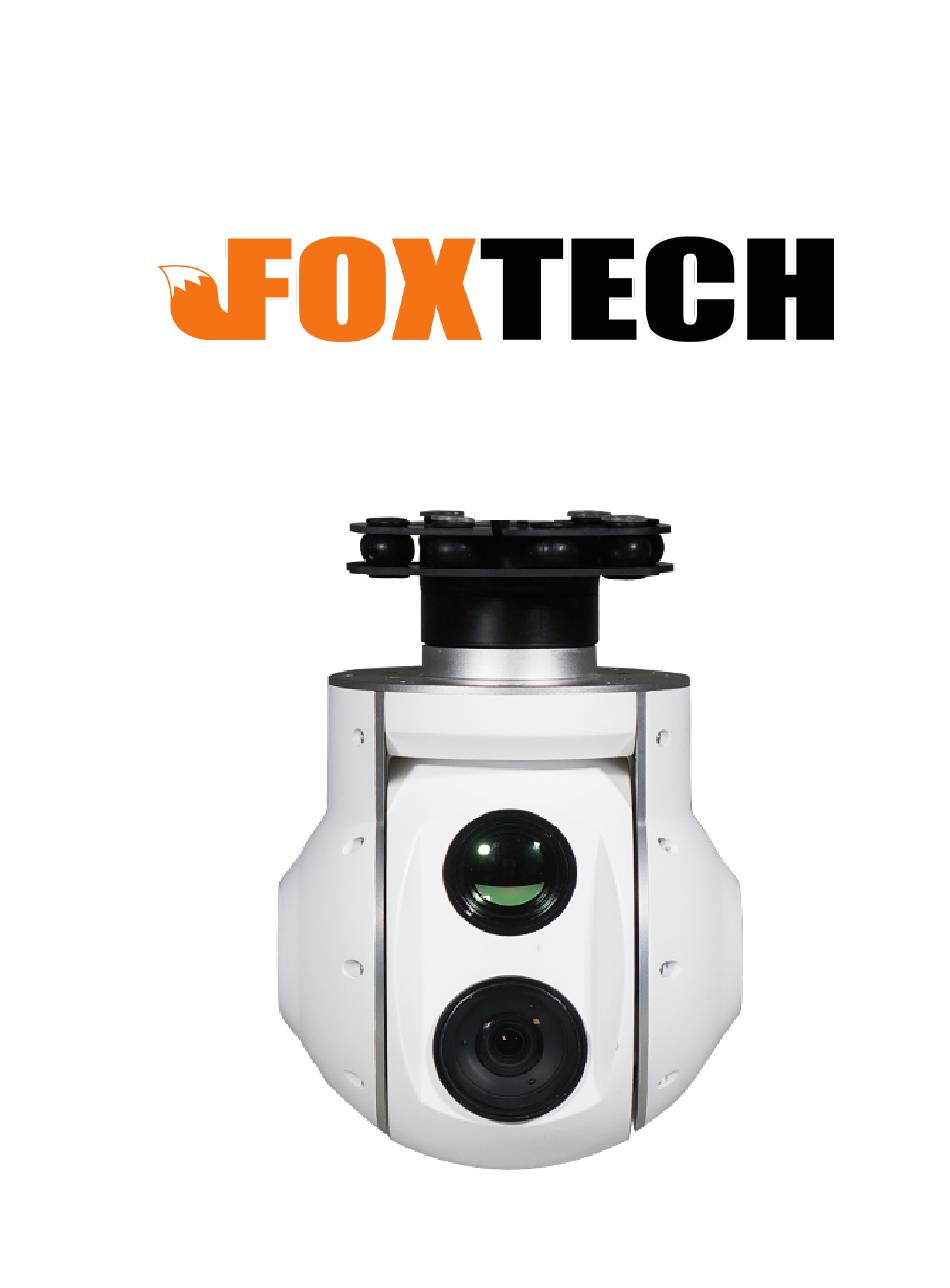

- Page 1 FH230 TIR 30X Optical Zoom Camera with 2-axis Gimbal...
-
Page 2: Table Of Contents
Contents 2-Axis Gimbal Gimbal Introduction …………………………… …………… ……………………… Object tracking function…… ………………………………………………………2 2、 3、Gimbal description………………………………………………………………3 4、Packing list………………………………………………………………………………4 5、Mounting plate dimension drawing ……………………………………4 6、Installing………………………………………………………………………………………5 7、 M e c h a n i c s @ E l e c t r o n i c c h a r a c t e r i s t i c s … … … … … … …… … … …5 8、Working Characteristics…………………………………………………………5 9、Gimbal Signal wire box…………………………………………………………6 SONY EV7520 30X Camera... -
Page 3: 2-Axis Gimbal
2-Axis Gimbal FH230 TIR with a 2-axis high precision gimbal. The 2-axis gimbal can not only be controlled via PWM signal, but also serial command. Also gimbal status like Yaw, Pitch, zoom can be obtained by sending serial command to the gimbal via its serial port. -
Page 4: 3、Gimbal Description
Gimbal Description [1]Yaw Axis Motor [2]Thermal Camera [3 ] P itch Axis Motor [4]HD Zoom Camera Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: 4、Packing List
Packing List Gimbal Screws M3*5mm half round inner six angle screw *16 Damper*12 Damper*12 Copper pillar*4 DIMENSIONS Unit: mm... -
Page 6: 6、Installing
Installing M e c h a n i c s @ E l e c t r o n i c c h a r a c t e r i s t i c s 3S~4S Static 400mA@16V voltage Dynamic 500mA@16V -20 ~+80... -
Page 7: 9、Gimbal Signal Wire Box
Gimbal Signal wire box HDMI : micro HDMI OUTPUT 1080P 60fps default SD card: max 128G ,class10 FAT32 or exFAT format PWM in 5V output USER BOARD TTL 9600/8/1/N... - Page 8 S.bus/Rx:connect to Rx2 for track function. Roll/ Tx:connect to Tx2 for track function. Pitch:PWM in, pitch control 1 pitch up 俯仰向上 2 pitch stop 俯仰停止 We have protocol for c o n t ro l t h e g i m ba l and camera, please contact our technical 3 pitch down 俯仰向下...
- Page 9 Mode:change the speed / home position (调整云台控制速度/一键回中） Position 1 lowest speed for pitch and yaw. 云台低速） Position 2: middle speed for pitch and yaw.(云台中速） Position 3: highest speed for pitch and yaw. the speed is continuously quickly from 1 to 3. (云台高速 ）...
- Page 10 Pic/Rec picture / start record stop record （拍照 ， ， 开始录像 ， 停止录像） Switch 2 to 1 start record / stop record.( 2 从 切到 ,开始录像，再切一次， 停 止录像） start record, the OSD display rec hh:mm:ss ; (录像开始后，会显 示录像时间） stop record, the OSD display STBY. (录像停止后，显示STBY) Switch 2 to 3: take a picture .
-
Page 11: Sony Ev7520 30X Camera
SONY EV7520 30X Camera FCB-EV7520 Imager sensor 1/2.8-typeExmor R CMOS Lens Picture quality Full HD 1080p (1920 x 1080) Colour: 0.01 lx(F1.6, AGC on, Minimum 1/30 s) illumination* Digital zoom 12x (360x with optical zoom) ● Defog Image sensor 1/2.8-type Exmor R CMOS Image sensor(Number Approx.2.13 Megapixels of effective pixels) - Page 12 FCB-EV7520 Shutter speed 1/1 s to 1/10,000 s, 22 steps Internal Sync system Auto, Manual, Priority mode Exposure control (shutter priority & iris priority), Bright, EV compensation, Slow AE Backlight compensation Aperture control 16 steps Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor White balance Lamp (Fix/Auto/Outdoor Auto), One-push, Manual...
-
Page 13: 640 25Mm Thermal Camera
640 25mm Thermal imaging Camera Horizontal FOV(°)水平 24.6 Vertical FOV(°)垂直视场 18.5 Diagonal FOV(°)对角 30.4 Detective Distance Man:1.8x0.5m )探测 距离 Recognize Distance Man 1.8x0.5m 识别距离 Verified Distance Man 1.8x0.5m 验证距离 Detective Distance Car 4.2x1.8m )探测距离 2255 Recognize Distance Car 4.2x1.8m 识别距离 Verified Distance Car 4.2x1.8m 验证距离... -
Page 14: Gps Data Overlay And Serial Port Wiring Diagram
GPS data overlay and serial port wiring diagram 1 2 3 S.bus/Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi Serial ports will be needed(marked by the black box, see photo above),please connect RX1 and RX2,TX1 and TX2,with wire jumper.TX and RX from external serial cableconnect to TX3 and RX3 respectively. GND from external serial cable connect to GNDof the wiring hub.
