D-Link DKVM-8E User Manual page 22

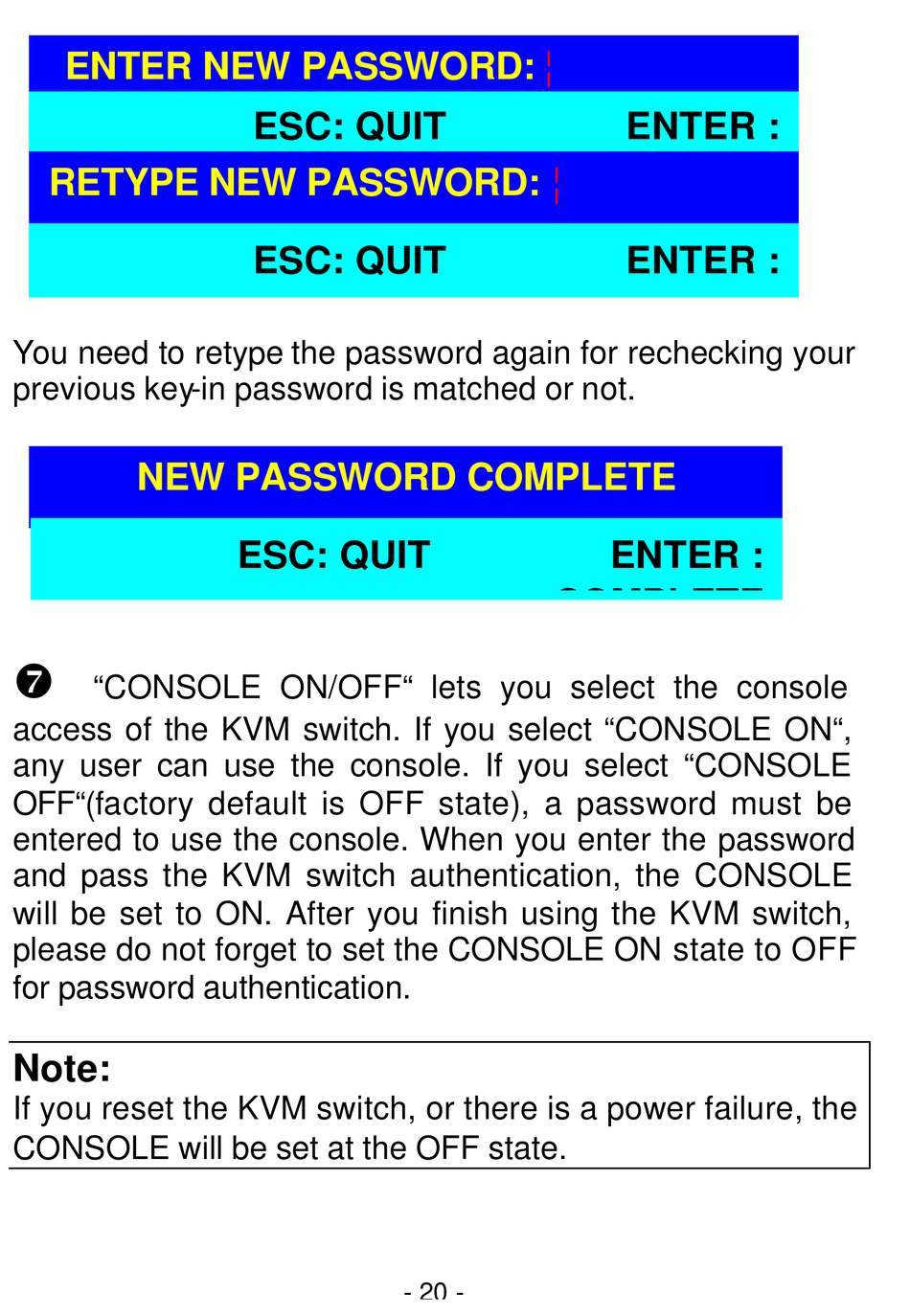

ENTER NEW PASSWORD:
RETYPE NEW PASSWORD:
You need to retype the password again for rechecking your
previous key-in password is matched or not.
NEW PASSWORD COMPLETE
{
"CONSOLE ON/OFF" lets you select the console
access of the KVM switch. If you select "CONSOLE ON",
any user can use the console. If you select "CONSOLE
OFF"(factory default is OFF state), a password must be
entered to use the console. When you enter the password
and pass the KVM switch authentication, the CONSOLE
will be set to ON. After you finish using the KVM switch,
please do not forget to set the CONSOLE ON state to OFF
for password authentication.
Note:
If you reset the KVM switch, or there is a power failure, the
CONSOLE will be set at the OFF state.
ESC: QUIT
ESC: QUIT
ESC: QUIT
- 20 -
¦
ENTER :
COMPLETE
¦
ENTER :
COMPLETE
ENTER :
COMPLETE
