di Marchioni Davide & Daniele s.n.c.

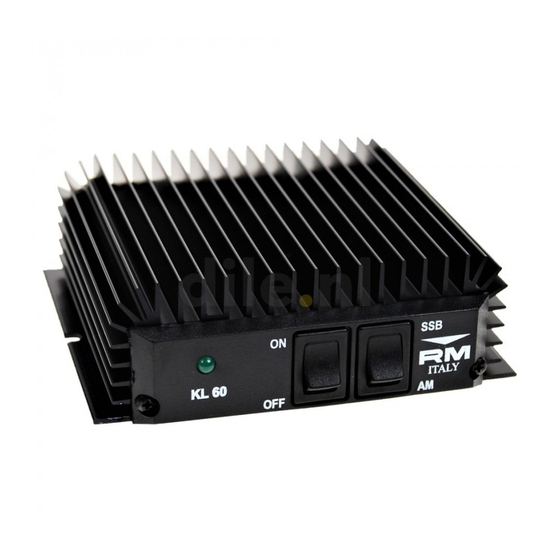

KL 60 linear amplifier

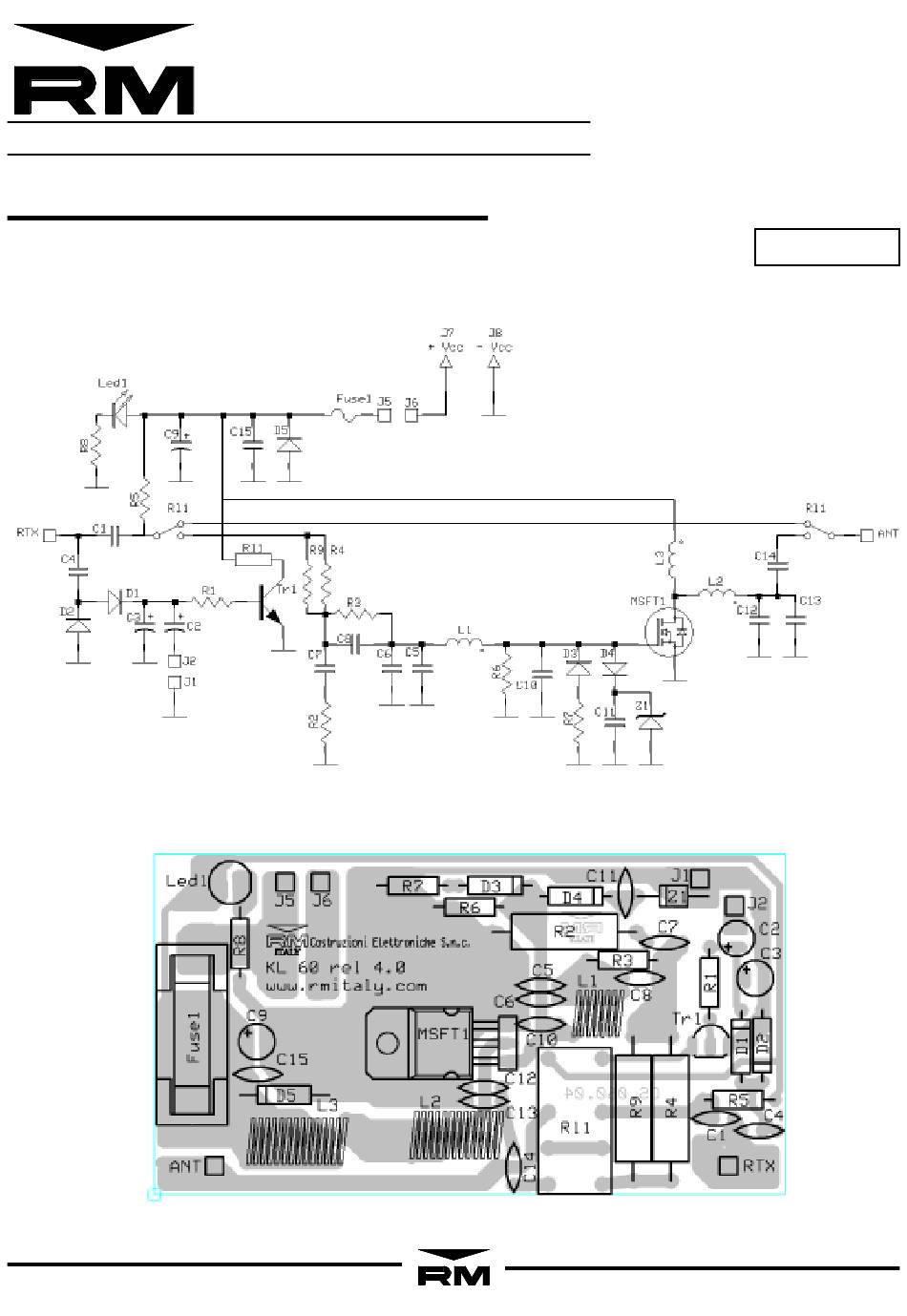

Schematic diagram
date 17-02-2003
Costruzioni Elettroniche
Via IV Novembre 215/5
Casella postale N° 33
40045 Ponte della Venturina (BO) ITALY
Tel +39 0534 60460
Fax +39 0534 60463
E-MAIL ufftec@rmitaly.com
http://www.rmitaly.com
Version 4.00
Page 1 di 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RM KL 60
Summary of Contents for RM KL 60
- Page 1 Casella postale N° 33 Costruzioni Elettroniche 40045 Ponte della Venturina (BO) ITALY Tel +39 0534 60460 Fax +39 0534 60463 di Marchioni Davide & Daniele s.n.c. E-MAIL ufftec@rmitaly.com http://www.rmitaly.com KL 60 linear amplifier Schematic diagram Version 4.00 date 17-02-2003 Page 1 di 2...
- Page 2 KL 60 4.00 List of components = 10 nF 50 V = 33 µF 16 V = 10 µF 16 V = 8,2 pF 50 V N750 = 220 pF 50 V N750 = 120 pF 50 V N750 = 10 nF...
