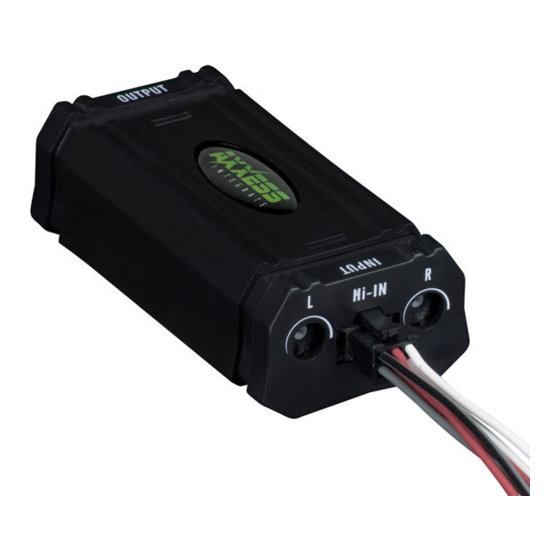

Axxess AX-ALOC618 Installation Instructions

AX-ALOC618

INSTALLATION INSTRUCTIONS

Wire Color & Function: The audio input wire colors are an EIA

standard for

car stereo

applications as follows.

WHITE = LEFT Front (+) Input

WHITE/BLACK = LEFT Front (-) Input

GRAY = RIGHT Front + Input

GRAY/BLACK = RIGHT Front (-) Input

BROWN = Reference Ground(-)

(REFERENCE GROUND OPTIONAL IF NOISE IS PRESENT)

NOTE: Be sure that all audio input connections are polarized or

in phase with each other. That is, the positive output wires from

the audio source need to be connected to the corresponding

positive input wires of the AX-ALOC618. The same goes for the

negative audio wires. Failure to do this will result in poor bass

response and low quality audio.

After completing all of the necessary connections, turn the AX-

ALOC618 adjustment pots all of the way down by rotating them

completely counter-clockwise. Now, turn the stereo system on

and adjust the main volume control on the stereo to approxi-

mately ¾ maximum volume. Select one of the adjustment pots

on the AX-ALOC618 and turn it slowly clockwise until you notice

audio distortion and then stop. Turn the remaining pot to the

same position as the previously adjusted pot. The audio set-up

of the AX-ALOC618 is now complete and ready to be enjoyed.
