swiftech MCB-120 Installation Manual

Parts
MCB-120™ Housing assembly
Retention hardware (screws, etc..)
½" tubing

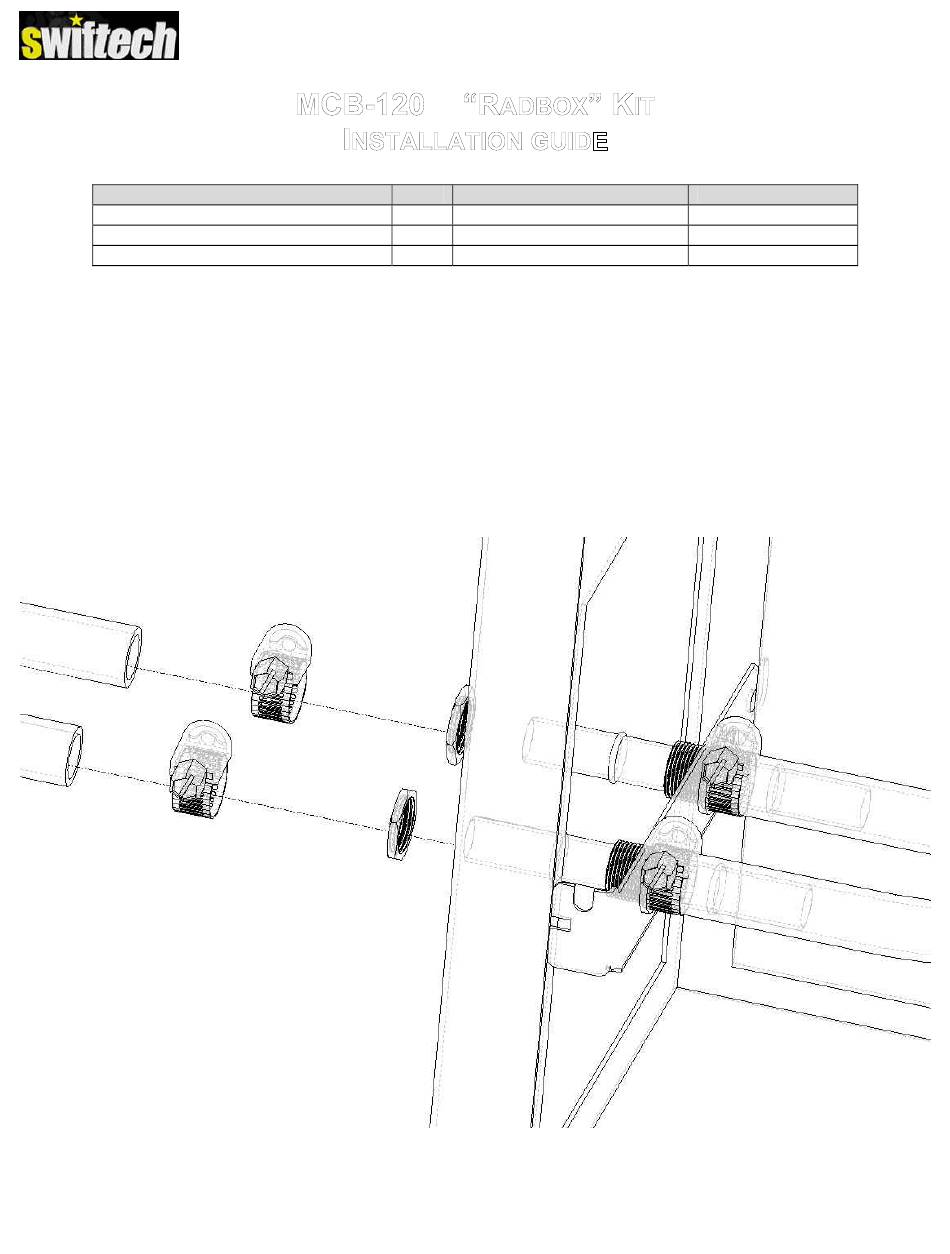

1/ PCI pass-thru kit installation

o
o
o
o
2/ Housing / fan & radiator installation: please refer to diagram page 2.
1 of 2
th
1703, E. 28 St, Signal Hill, CA 90755 USA – Tel. (562) 595-8009 – F 562-595-8769 – www.swiftnets.com
(*) only included with complete kit
Insert the PCI bracket into an available opening, and secure it to the chassis.
Insert your fan electrical connector through the slotted hole of the PCI bracket now. Only 3-pin
connectors (the type that connect to the motherboard) are small enough to pass through the
slotted hole. 4-pin Molex connectors (the type that connect to your power supply) will require that
the terminals be removed from the Molex housing first.
From inside of the chassis, insert the pass-thru adapters through each hole of the PCI bracket.
The threaded portion of the adapters should be exposed outside of the case.
Screw the nuts to the adapters. The nuts are designed to slightly overlap the edges of the PCI
chassis opening, to provide a more secure installation.
™

Parts list

QTY PARTS
1 Coolsleeves™
1 PCI Pass-Thru kit
2' (*) Worm drive clamps
QTY
20" (*)
1 (*)
4 (*)
