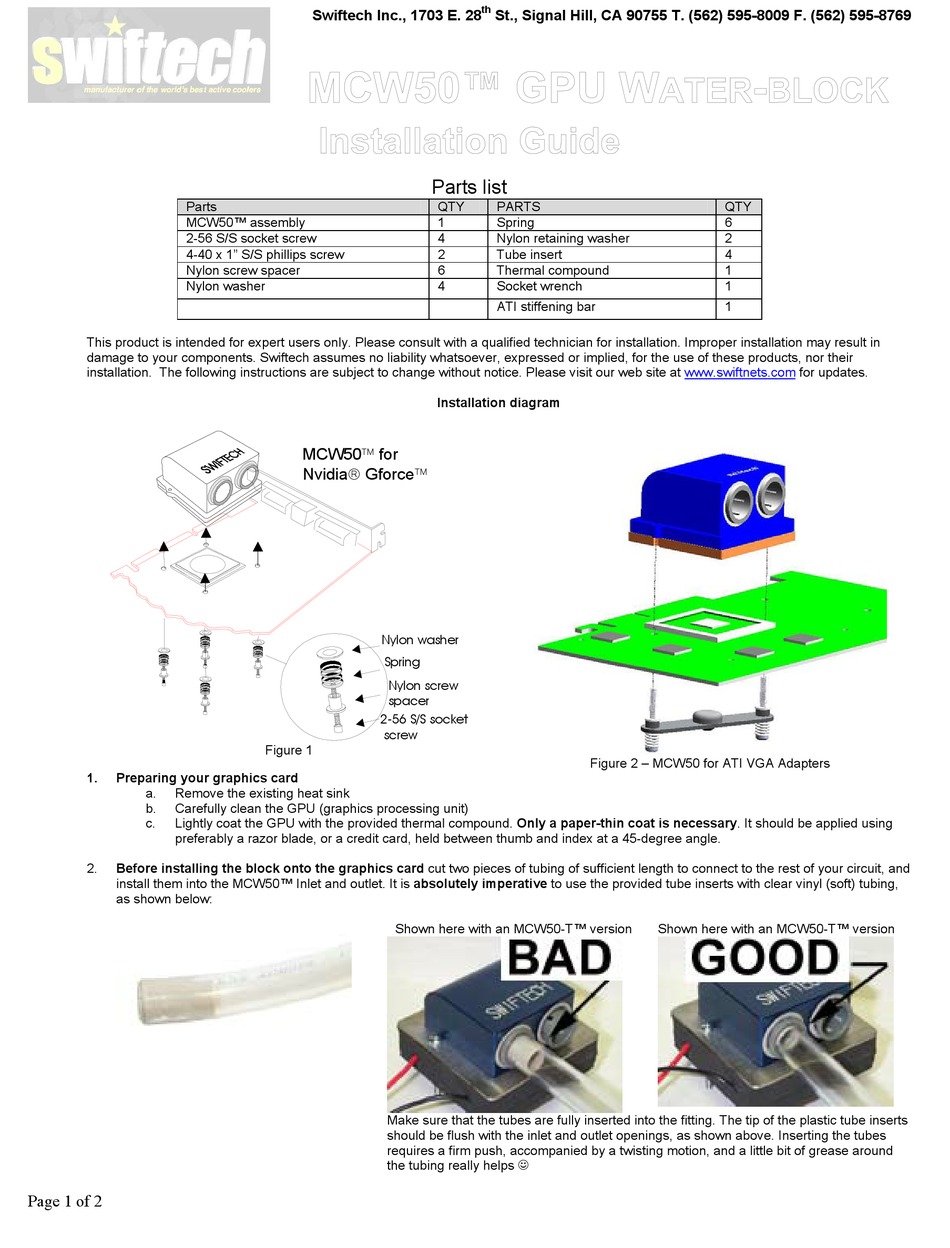

swiftech MCW50 Installation Manual

Parts
MCW50™ assembly
2-56 S/S socket screw
4-40 x 1" S/S phillips screw
Nylon screw spacer
Nylon washer
This product is intended for expert users only. Please consult with a qualified technician for installation. Improper installation may result in
damage to your components. Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their
installation. The following instructions are subject to change without notice. Please visit our web site at
1.

Preparing your graphics card

a. Remove the existing heat sink
b. Carefully clean the GPU (graphics processing unit)
c. Lightly coat the GPU with the provided thermal compound. Only a paper-thin coat is necessary. It should be applied using
preferably a razor blade, or a credit card, held between thumb and index at a 45-degree angle.
2. Before installing the block onto the graphics card cut two pieces of tubing of sufficient length to connect to the rest of your circuit, and
install them into the MCW50™ Inlet and outlet. It is absolutely imperative to use the provided tube inserts with clear vinyl (soft) tubing,
as shown below:
Page 1 of 2
Swiftech Inc., 1703 E. 28

Parts list

QTY
1
4
2
6
4
Installation diagram

MCW50 for
 
Nvidia Gforce
Nylon washer
Spring
Nylon screw
spacer
2-56 S/S socket
screw
Figure 1
Shown here with an MCW50-T™ version
Make sure that the tubes are fully inserted into the fitting. The tip of the plastic tube inserts
should be flush with the inlet and outlet openings, as shown above. Inserting the tubes
requires a firm push, accompanied by a twisting motion, and a little bit of grease around
the tubing really helps ☺
th
St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769
PARTS
Spring
Nylon retaining washer
Tube insert
Thermal compound
Socket wrench
ATI stiffening bar
Figure 2 – MCW50 for ATI VGA Adapters
Shown here with an MCW50-T™ version
QTY
6
2
4
1
1
1
www.swiftnets.com for updates.
