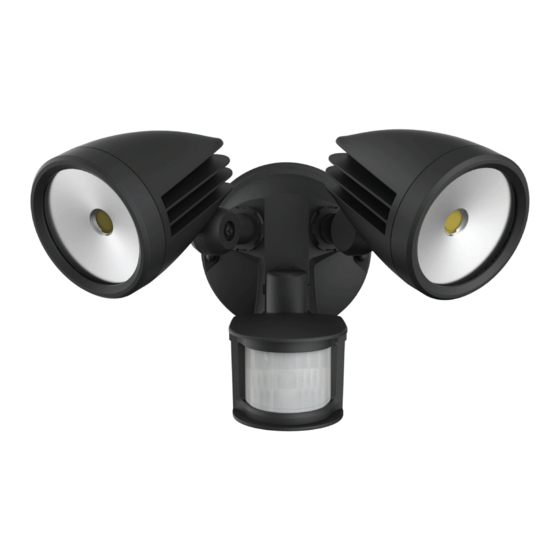

Domus MURO-30S-B-W Installation Manual

MURO-30S
Order Code Product Code
25022 MURO-30S-B-W
25023 MURO-30S-S-W
25024 MURO-30S-W-W
Thank you for purchasing your new LED MURO-30S, Please take the time to read and understand the instruction
sheet below. Failure to do so may void warranty.
Specifications
Voltage: 240V AC
Power: 30W
IP Rating: 44

Introduction

The LED Light incorporates a PIR (Passive Infra Red) sensing device which continuously scans a preset operating
zone and immediately switches the light on when it detects movement in that area.
This means that whenever movement is detected within the range of the sensor the light will switch on
automatically to illuminate pathways, steps, patios, porches, or whatever area you have selected to light for
reasons of safety, convenience.
While there is movement within range of the unit the light will remain on.

While to fit your LED lamp

To achieve best results, we suggest you take into account the following points:
• Ideally the LED lamp should be mounted 1.8 to 2.5 metres (6 to 8ft) above the ground to be scanned
• To avoid damage to unit - do not aim the sensor towards the sun.
• To avoid nuisance triggering, the sensor should be directed away from heat sources such as barbecues, Air
conditioners, other outside lighting, moving cars and flue vents.
• To avoid nuisance triggering, keeping away from the area of strong electromagnetic disturbance.
• Do not aim towards reflective surfaces such as smooth white walls, swimming pools, etc. The LED lamp
scanning specifications (approximately 12 meters at 180°) may vary slightly depending on the mounting height
and location. The detection range of the unit may also alter with temperature change. Before selecting a place
to install your LED lamp you should note that movement across the scan area is more effective
than movement directly toward or away from the sensor. If movement is made walking directly towards or
away from the sensor and not across, the apparent detection range will be substantially reduced.

Installation

• Switch power off at the meter box and ensure that there is no power to the lamp.
• Unscrew the screws on the main body, remove the backcover.
• Remove the Cable Anchorage and connect the cable to the Terminal Block.
• Use the back cover to mark the position of screw holes onto mounting surface. Drill the wall to depth of about
3cm and fit the wall plugs (supplied), then fix the support to the mounting surface with the screws. Care
should be taken to avoid drilling or screwing into concealed electrical wiring.
• Re-place the Cable Anchorage.
• Fit main body onto the backcover. Adjust the light direction desired and tighten the screws.
• Switch the main power back on.
Note:
-The lamp must be installed by professional electrician
-Ensure the power supply is switched off before fitting this product
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
enquiries@domuslighting.com
Description
30W Spotlight with sensor, Black Die Cast Aluminium. White 5000K
30W Spotlight with sensor, Silver Die Cast Aluminium. White 5000K
30W Spotlight with sensor, White Die Cast Aluminium. White 5000K
Lumen (±5%): 2000lm
Beam Angle: 115°
CCT: 5000K
Phone: 02 9554 9600
|
Installation Manual
Dimmable:
CRI:
Lifespan:
-Do not touch the lamp when in use
-Keep away from hot steam and corrosive gas
| Fax: 02 9554 9433
www.domuslighting.com
No
≥80
40,000hrs
