Domus MURO-PRO-30S Installation Manuals

MURO-PRO-30S
Order Code Product Code
25062 MURO-PRO-30S-BLK-TRIO
25063 MURO-PRO-30S-DGR-TRIO
25064 MURO-PRO-30S-WHT-TRIO
Thank you for purchasing your new LED MURO-PRO-30S, Please take the time to read and understand the
instruction sheet below. Failure to do so may void warranty.

Specifications

Voltage: 240V AC, 50Hz
Power: 30W
IP Rating: 44
CRI: ≥80
Detection Range:
Duration Time adjustment:
Detection circuitry:
The Security Light incorporates a PIR (Passive Infra Red) sensing device which continuously scans a preset
operating zone and immediately switches the light on when it detects movement in that area. This means that
whenever movement is detected within the range of the sensor the light will switch on automatically to illuminate
pathways, steps, patios, porches, or whatever area you have selected to light for reasons of safety, convenience
or security. While there is movement within range of the unit the light will remain on.
This light is for outdoor use and only intended for normal use, must not be used for rough service (for example,
on construction sites).
The light source of this luminaires is not replaceable; when the light source reaches its end of life the whole
luminaire must be replaced
To achieve best results, we suggest you take into account the following points:
• Ideally the security lamp should be mounted 1.8 to 2.5 metres (6 to 8ft) above the ground to be scanned
• To avoid damage to unit - do not aim the sensor towards the sun.
• To avoid nuisance triggering, the sensor should be directed away from heat sources such as barbecues, Air-
conditioners, other outside lighting, moving cars and flue vents.
• To avoid nuisance triggering, keeping away from the area of strong electromagnetic disturbance.
• Do not aim towards reflective surfaces such as smooth white walls, swimming pools, etc. The security lamp
scanning specifications (approximately 12 meters at 180°) may vary slightly depending on the mounting height
and location. The detection range of the unit may also alter with temperature change. Before selecting a
place to install your security lamp you should note that movement across the scan area is more effective than
movement directly toward or away from the sensor. If movement is made walking directly towards
or away from the sensor and not across, the apparent detection range will be substantially reduced.
Note:
-The lamp must be installed by professional electrician
-Ensure the power supply is switched off before fitting this product
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
enquiries@domuslighting.com
Description

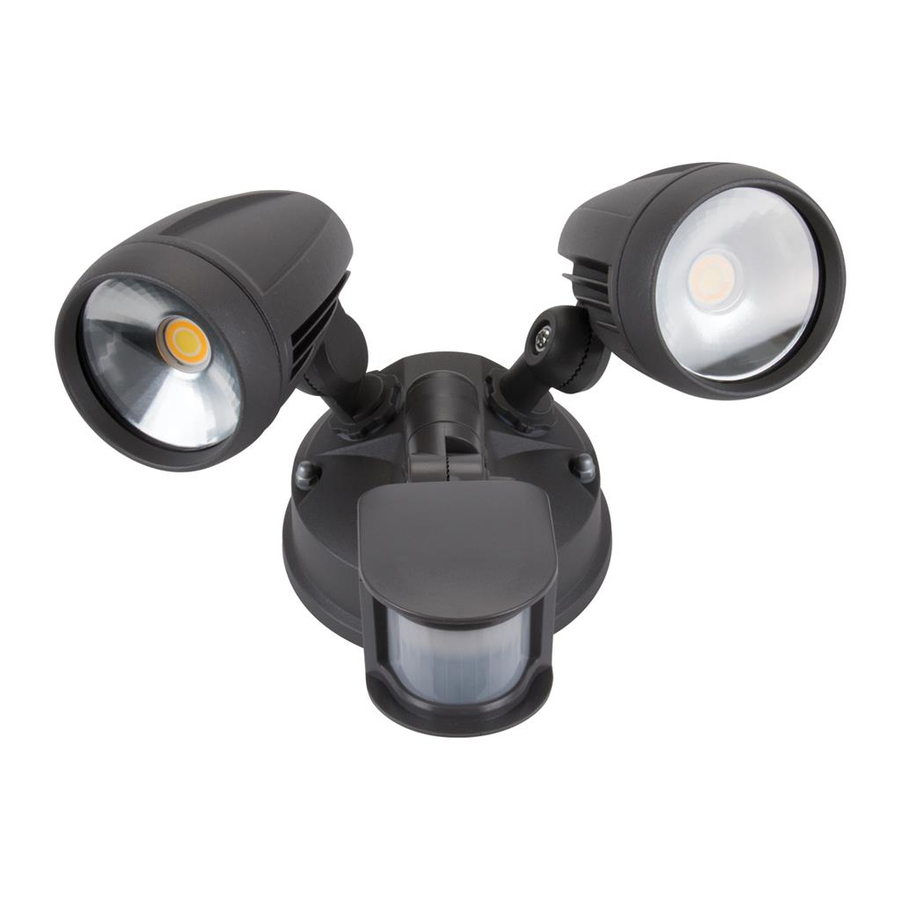

30W Spotlight, with sensor, black finish (TRIO)
30W Spotlight, with sensor, dark grey finish (TRIO)
30W Spotlight, with sensor, white finish (TRIO)
Lumen (±10%): Warm White 3000K - 1900lm
Neutral White 4000K - 2100lm
White 5000K - 2000lm
Beam Angle: 120°
CCT: 3000K - 4000K - 5000K (Switchable)
Lifespan: 30,000hrs
Max.12 metres at 180ᵒ scan
(10±5) seconds to (4±1) minutes
Passive Infra-Red (PIR)
Phone: 02 9554 9600
|
Installation Manual
Dimmable:
-Do not touch the lamp when in use
-Keep away from hot steam and corrosive gas
| Fax: 02 9554 9433
www.domuslighting.com
No
