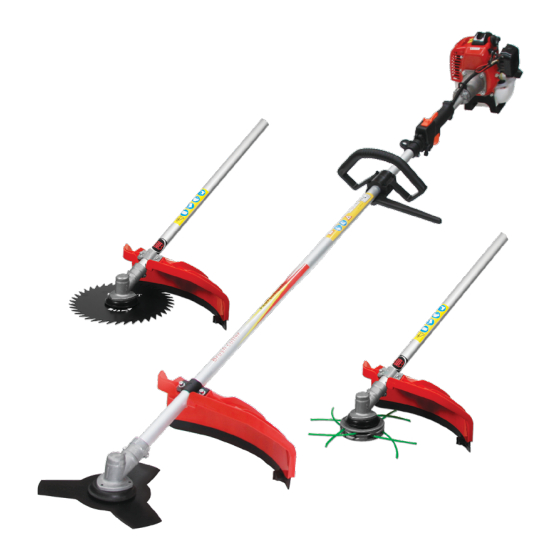

- Page 1 OWNER’S MANUAL Assembly & Operating Instructions BBT Brush Cutter MODEL NO. BBT-BC-26CCBH BBT-BC-26CCDH BBT-BC-52CCBH...
-
Page 2: To The Owner
Please do NOT return the Brush Cutter without first contacting the Customer Support Department at bbt@bbta.com.au. If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this Brush Cutter, please contact our Customer Support Department. SAVE THESE INSTRUCTIONS WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... -
Page 3: Table Of Contents
OPERATIONS ............................18 Engine Starting and Stopping Procedures ......................18 Hot Restart ................................18 Emergency Stop ..............................18 MAINTENANCE CARE ...........................19 TROUBLESHOOTING ........................19-20 SPECIFICATIONS ............................21 WARRANTY & SERVICE ........................22 EXPLODED DIAGRAM & PARTS LIST....................23-29 YOU MAY ALSO LIKE ...........................30 BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU... -
Page 4: Important Safety Information
Read this manual carefully. Be familiar with the controls and the proper use of the unit. Know how to shut off your Brush Cutter and how to unhook a harnessed unit quickly WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... -
Page 5: Key To Symbols
No fire, no unprotected source of flame, no smoking. WARNING! Your Responsibility—Restrict the use of this power machine to persons who have read, understood and will follow the warnings and instructions in this manual and on the machine. SAVE THESE INSTRUCTIONS! BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU... -
Page 6: General Safety Rules
This could cause serious injury to the operator or protector or nylon cutting head, be sure to stop bystanders as well as damage to the machine. the engine and confirm that the nylon cutting head has completely stopped running. WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... - Page 7 • The cutter area is still dangerous while the machine • Make periodic inspections to ensure safe and is coasting to a stop. efficient operation. SAFETY MANUAL included with unit BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU...
-
Page 8: Parts Location
15. NYLON CUTTER HEAD: Contains replaceable nylon length. trimming line. 8. AIR CLEANER COVER: Contains a replaceable felt element. 9. FUEL TANK LID. 10. FUEL TANK: For fuel and contains fuel filter. WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... -
Page 9: Assembling
STOP ENGINE IMMEDIATELY Excessive vibration of blade means that it has not been properly installed. Stop engine immediately and check blade. Blade improperly installed will cause injury. Use only our company’s original cutting equipment parts for this unit. BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU... -
Page 10: Installing Bull Horn Handle
Install handle in bracket. Position handle in a comfortable operating position and tighten four M5×25 screws. Installing D–Handle Install handle in bracket. Position handle in a comfortable operating position and tighten for M5 x 25 screws. WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... -
Page 11: Rules Of Safe Operation
NO PERSON EXCEPT OPERATOR ALLOWED WITHIN 15 METRES RADIUS DANGER ZONE. EYE, EAR, FACE, FOOT, LEG AND BODY PROTECTION MUST BE WORN BY OPERATOR. PERSONS IN ZONE OR RISK AREA BEYOND DANGER ZONE SHOULD WEAR EYE PROTECTION AGAINST THROWN OBJECTS. RISK DIMINISHES WITH DISTANCE FROM DANGER ZONE. BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU... -
Page 12: Cutting With A Nylon Head
Use extreme caution when operating over bare spots and gravel, because the line can throw small rock particles at high speeds. Debris shields on the unit cannot stop objects which bounce or ricochet off hard surfaces. WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... - Page 13 WARNING DO NOT trim in any area where there are strands of fencing wire. Wear protective safety clothing. DO NOT cut where you cannot see what the cutting device is cutting. BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU...
-
Page 14: Cutting With A Blade
1/2 to 3/4 inches. Scything can be done in both directions, or just one way which results in the debris being thrown away from you. NOTE: You will be hit by some debris if you scythe in both directions. WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... - Page 15 Sawing requires pressure or leverage which could cause the blade to judgement on your part whether to cut on the side bend or crack. where the blade pulls away from you but throws back BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU...
-
Page 16: Preparing For Operations
Always fill fuel tank outside in a well ventilated area. • Never remove the fuel cap or add fuel with the engine running. Stop engine and allow to cool before filling. • Never drain fuel from engine in an enclosed area. WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... -
Page 17: Fuel & Oil Mixture
Stored fuel ages. Do not mix more fuel than you expect to use within a month. IMPORTANT: Failure to follow proper fuel mix instructions may cause damage to the engine. BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU... -
Page 18: Operations
Any level of carbon monoxide, if inhaled, can full revs can be damaging. cause headaches, drowsiness, nausea, dizziness, confusion and eventually death. Avoid any areas or actions that expose you to carbon monoxide. WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... -
Page 19: Maintenance Care
When there is serious trouble with the unit, do not • The ignition system is in good condition and the try to repair it yourself. spark plug sparks correctly. • Compression of the engine is adequate. BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU... -
Page 20: Troubleshooting
Adjust coil gap 0.3-0.4mm 4. The Engine Suddenly Stopped PROBABLE CAUSES ACTION Fuel is empty Add fuel Spark plug fouled with oily deposits and short circuit Clean the oily deposits High voltage wire disconnected off Connect WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH... -
Page 21: Specifications
Type of handle Double grip/D-handle Double grip/D-handle Length of main pipe section 1460 mm 1460 mm Length of drive shaft section 1500 mm 1500 mm Standard blades BG415-23-blade(230×1.4) mm BG415-23-blade(230×1.4) mm Technical Data subject to change without notice. BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU... -
Page 22: Warranty & Service
Parts purchases, consumable components and accessories such as chains, carry bags, batteries, hoses, grinding discs, covers, belts, cable, wheels and blades are not covered by standard warranty. Spare Parts Spare parts are available. Please see our website (www.bbta.com.au) or contact us at bbt@bbta.com.au for more details. WWW.BBTA.COM.AU... -
Page 23: Exploded Diagram & Parts List
EXPLODED DIAGRAM & PARTS LIST BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU... - Page 24 SCREW M3 X 8 SP-BC-26CC-031.3 SCREW M5 X 10 SP-BC-26CC-013.3 PIPE AIR SP-BC-26CC-032.3 PISTON SP-BC-26CC-014.3 REEDVALVE ASSEM (F) SP-BC-26CC-033.3 RING SP-BC-26CC-015.3 VALUECASE (F) SP-BC-26CC-034.3 SP-BC-26CC-016.3 REED VALVE SP-BC-26CC-035.3 RING SP-BC-26CC-017.3 STOPPER SP-BC-26CC-036.3 BEARING SP-BC-26CC-018.3 SCREW M3 X 8 WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH...
- Page 25 SCREW M5 X 16 SP-BC-26CC-086.3 SNAPRING SP-BC-26CC-142.3 LABEL RECOIL SP-BC-26CC-087.3 BEARING SP-BC-26CC-143.3 LABEL COVER SP-BC-26CC-088.3 SNAP RING SP-BC-26CC-144.3 GUARD SP-BC-26CC-089.3 BRACKET (A) SP-BC-26CC-145.3 SCREW SP-BC-26CC-090.3 BRACKET (B) SP-BC-26CC-146.3 CLIP SP-BC-26CC-091.3 CUSHION SP-BC-26CC-092.3 BOLT M5 X 30 BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU...
- Page 26 EXPLODED DIAGRAM & PARTS LIST 36cc Brush Cutter Engine WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH...
- Page 27 Pin B4 X 10 SP-BC-36CC-035 Starter Plate SP-BC-36CC-079 Rubber Damping Block SP-BC-36CC-036 Starter SP-BC-36CC-080 Tank Cap SP-BC-36CC-037 Screw M5 X 32 SP-BC-36CC-081 Tank SP-BC-36CC-038 Little Clamp SP-BC-36CC-082 Tank Bracket SP-BC-36CC-039 Balanced Trachea SP-BC-36CC-040 Intake Pipe Gasket SP-BC-36CC-041 Sealing Ring BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU...
- Page 28 PISTON NEEDLE 10 X 13 X 16 SP-BC-52CC-051 OIL FILTER SP-BC-52CC-023 PISTON SPRING SP-BC-52CC-052 OIL PIPE SP-BC-52CC-024 CYLINDER SP-BC-52CC-053 FUEL TANK SP-BC-52CC-025 MUFFLER GASKET SP-BC-52CC-054 FUEL TANK GUARD SP-BC-52CC-026 MUFFLER GASKET SP-BC-52CC-027 BOLT SET M5 X 12 SP-BC-52CC-028 WASHER M6 WWW.BBTA.COM.AU BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH...
- Page 29 BOLT SET M5×12 SP-BC-52CC-020.1 NUT M5 SP-BC-52CC-046.1 BOLT SET M5×20 SP-BC-52CC-021.1 BUSHING SP-BC-52CC-047.1 BOLT SET M6×12 SP-BC-52CC-022.1 RIGHT HANDLE SP-BC-52CC-048.1 BUTTER HEAD SP-BC-52CC-023.1 SNAP RING Φ26 SP-BC-52CC-049.1 3T BLADE SP-BC-52CC-024.1 SNAP RING Φ10 SP-BC-52CC-025.1 BEARING 6000RS BBT-BC-26CCBH, BBT-BC-26CCDH, BBT-BC-52CCBH WWW.BBTA.COM.AU...
-
Page 30: You May Also Like
YOU MAY ALSO LIKE Chainsaws Blowers Lawn Mowers Chainsaw Sharpeners COPYRIGHT © BIGGER BOYZ TOYZ AUSTRALIA PTY.LTD Unit 2/3 Delta Place Albion Park Rail NSW 2527 BBT-BC-26CC-MNL1809...
