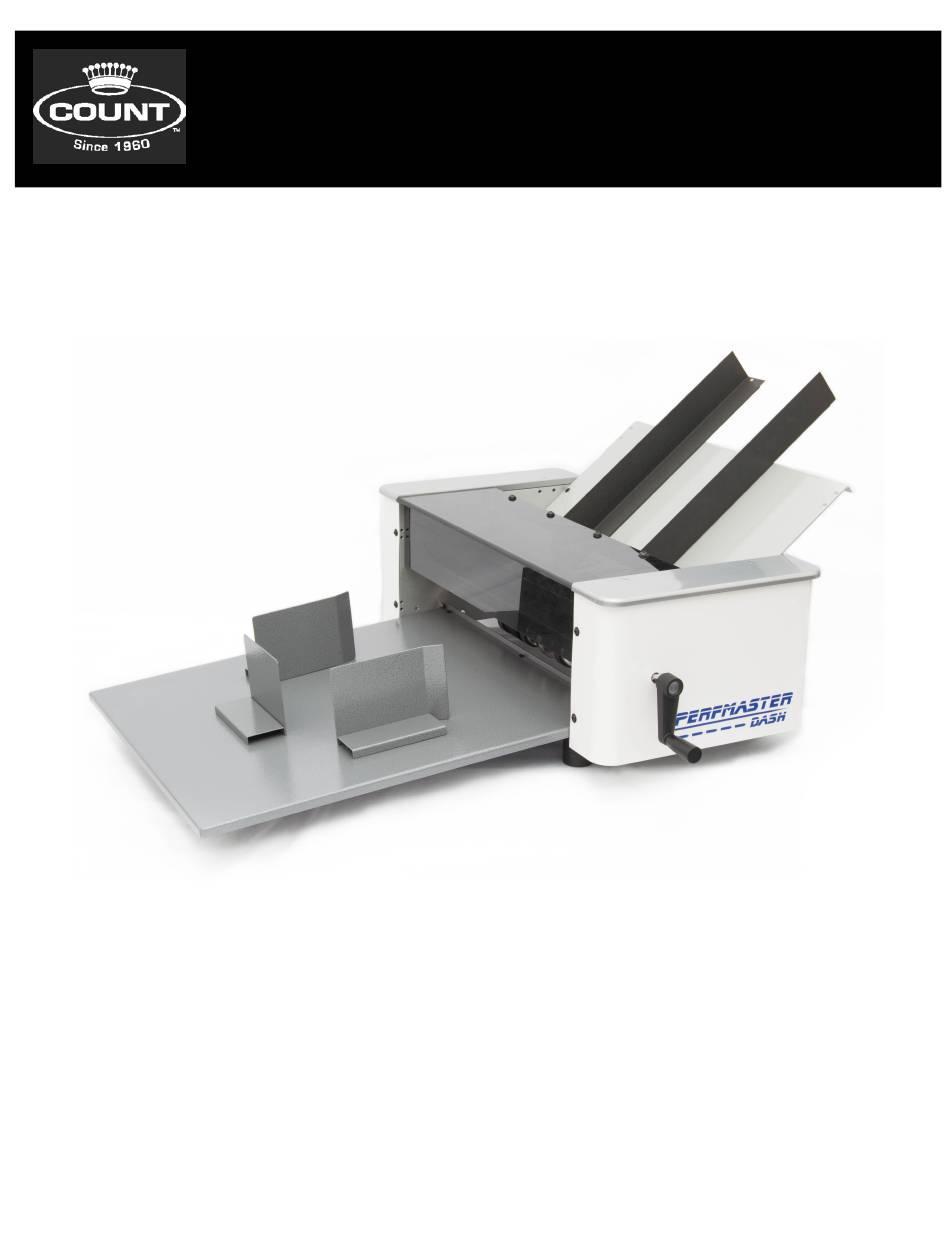

- Page 1 12-2015 Perfmaster Dash Serial Number ___________________________ Date ___________________________________...
- Page 2 TABLE OF CONTENTS SPECIFICATIONS…………………………………………………………………………………………….3 SAFETY PROCEDURES/CARE & MAINTENANCE.………………………………………………….3 COMPONENT IDENTIFICATION…………………………………………………………………………4 PAPER STOP ASSEMBLIES………………………………………………………………………….…..5 ROTARY PERF & SCORE ASSEMBLY………………………………………………………………..6 TROUBLESHOOTING……………………………………………………………………………………….7...
- Page 3 BE ALERT! BE CAREFUL! CARE AND MAINTENANCE The PERFMASTER DASH is a precision machine. It is very important to keep it free of excessive dust, dirt and foreign matter. We recommend that you keep the machine covered when not in use.
- Page 4 COMPONENT IDENTIFICATION Perf and Score Assemblies Paper Stops REFERENCES Paper Stops Pg. 6 Perf and Score Assemblies Pg. 7...
- Page 5 PAPER STOP ASSEMBLIES INSTALLING THE PAPER STOPS There are 3 different paper stops. 2 will have bends and 1 will be straight. The straight paper stop is the rear or back paper stop. The other 2 are the right and left paper stops and should be positioned as shown below.
- Page 6 PERFORATING AND SCORING ASSEMBLIES Replacing Worn Blades 1. Loosen the socket head cap screw to remove pressure from the pressure adjust mounting bracket. 2. Loosen the set screw and remove the pressure adjust mounting bracket. 3. Remove the button head cap screw that is retaining the score or perf blade. 4.
- Page 7 TROUBLE SHOOTING FEED TABLE NOT FEEDING CORRECTLY • 1. Check Caliper Adjustment. 2. Feed wheels do not have equal pressure on them, check adjustment. SHEETS NOT FEEDING STRAIGHT • 1. Unequal feed wheel pressure. 2. Align feed rails “check for squareness”. This can be checked by the lead edge of the paper feeding into the machine should line up with the front edge of the feed plate.
- Page 8 251 Wedcor Avenue, Wabash, Indiana 46992 Website: www.countmachinery.com Email: Info@martinyale.com Fax: (260) 563-4575 Rev. 0 12/29/2015 M-S027961...
