Summary of Contents for WLD-TEC Gasprofi 1 micro school edition

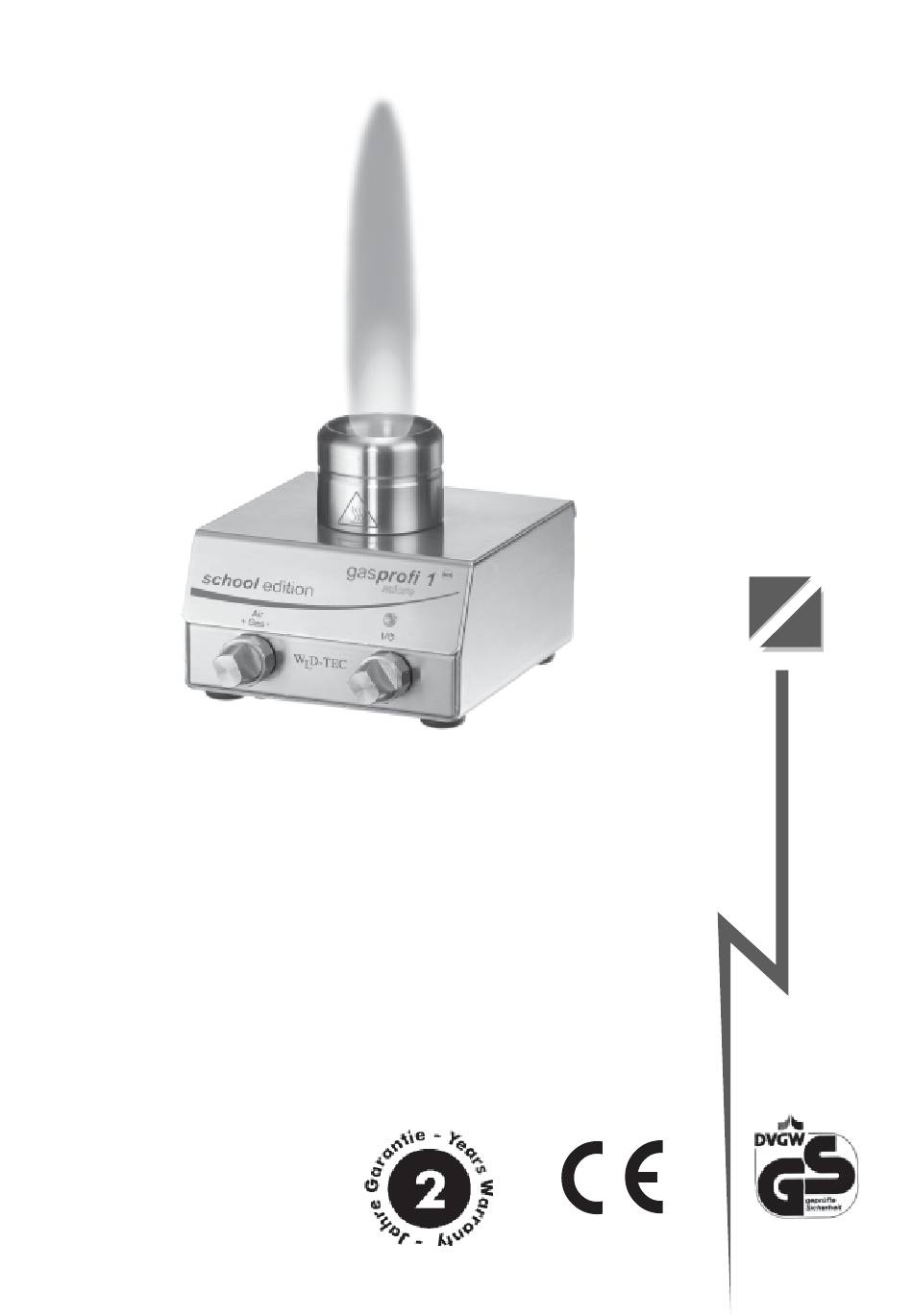

  • Page 1 Instruction manual gasprofi 1 micro school edition The safe choice DIN 30665, part 1...
  • Page 2 1 - Function knob 2, 2a - Dual knob: 2 - Gas adjustment 2a - Air adjustment 3 - Green LED 4 - Burner head 5 - Flame orifice 6 - Connector for foot pedal 7 - Power connector for 9 V DC 8 - Gas inlet R 1/4“...
  • Page 3: Safety Precautions

    Read these instructions carefully to familiarize yourself with the product. Please retain these operating instruction for future reference. Use: Safety laboratory gasburners for heating and flame sterilizing. Ideal for use in cleanroom workbenches and the laboratory. WARNING: DO NOT LEAVE THE ACTIVATED LABORATORY GAS BURNER UNATTENDED! SAFETY PRECAUTIONS: •...
  • Page 4 The range: gasprofi 1 micro school edition Art.-No. 6.007.000 with button function 2 operating modes for button (function knob) and foot pedal (optional) Removable burner head Nozzle for natural gas (N), propane/butane gas (P) Tilt mechanism, right / left (21)
  • Page 5: Button Startstop

    1.2 Electrical connection: Insert the power cord into the socket (7) on the back panel of the unit, or into the socket of the foot pedal. The default supply must be connected to a voltage source of 100 - 240 V / 50/60 Hz.
  • Page 6: Cleaning And Sterilizing

    - Overtemperature: Green LED blinks 4x This signal indicates a malfunction if the interior temperature has exceeded 70 °C. At a normal room temperature with normal air circulation the unit is suited for continuous operation. In case of overtemperature increase the air ventilation or change the operation site. In case of this malfunction the gas supply will be shut off automatically.
  • Page 7: Troubleshooting Guide

    Troubleshooting guide The LED does not light up Check for correct connection and specification of the power adapter. Ensure that the original power adapter is used. Specifications: 9 V / DC, 1A Polarity: The foot pedal does not work Check for correct connection of the foot pedal. Ensure that the foot pedal socket and plug is not twisted or broken.
  • Page 8: Warranty

    Warranty: All WLD-TEC gas burners are covered under our two-year manufacturer warranty against any manufacture defects in material and workmanship. The WLD-TEC warranty guarantees all gas burners under normal usage conditions and does not cover any damages as a direct result of user misuse or/and abuse.
  • Page 11 Technical data: Technology Microprocessor Programs Button: Start-Stop with timer, 60 min Foot pedal (optional): Standard (flame during pressed foot pedal) Safety features ignition, flame and temperature monitor automatic unit switch off, 4h Gas supply and consumtion Gas supply: 1/4“ left + filter Gas types: natual gas E/LL,18 - 25 mbar liquid gas II 2ELL3B/P, 47,5 - 57,5 mbar...
  • Page 12 GmbH Sales department Production und Service: Spandauer Weg 1 Halle-Kasseler Straße 49 D - 37085 Göttingen D - 37318 Arenshausen Phone : +49 (0)551/793789 Phone : +49 (0)36081/68940 Fax : +49 (0)551/793707 Fax : +49 (0)36081/68942 Internet: http://www.wld-tec.com Email: sales@wld-tec.com...
