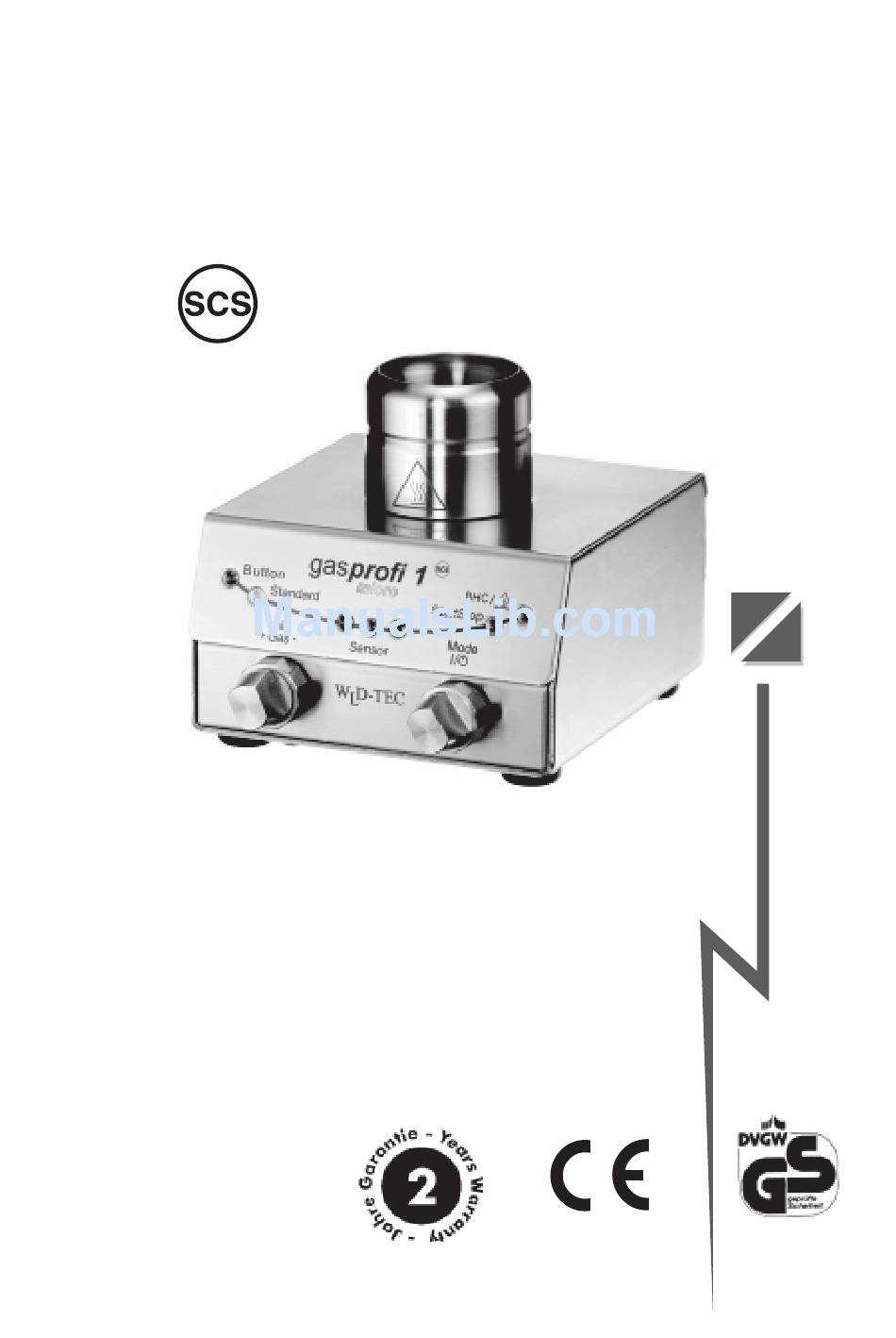

- Page 1 Instruction manual gasprofi 1 SCS micro The smallest laboratory gas burner with more safety DIN 30665, part 1...

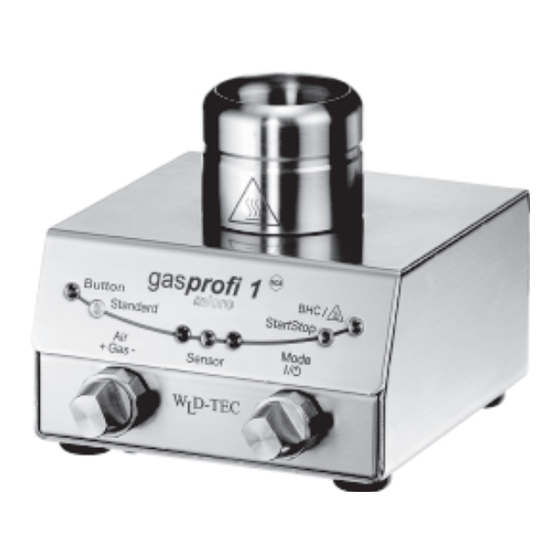

- Page 2 1 - Function knob 2, 2a - Dual knob: 2 - Gas adjustment 2a - Air adjustment 3 - LED Standard 4 - LED StartStop 5 - LED Sensor 6 - IR-Sensor 7 - LED Button 8 - LED Burner head HOT / BHC 9 - Burner head 9a - Flame orifice 10 - Connector for foot pedal...
-
Page 3: Safety Precautions
Read these instructions carefully to familiarize yourself with the product. Please retain these operating instruction for future reference. Use: Safety laboratory gasburners for heating and flame sterilizing. Ideal for use in cleanroom workbenches and the laboratory. WARNING: DO NOT LEAVE THE ACTIVATED LABORATORY GAS BURNER UNATTENDED! SAFETY PRECAUTIONS: •... - Page 4 The range: gasprofi 1 micro SCS Art.-No. 6.004.000 with DoubleClick IR-Sensor and stainless steel foot pedal adjustable IR-Sensor reaction distance 5 standard programs for button (function knob), IR-Sensor and foot pedal SCS (Safety Control System), BHC (Burner Head Control) Removable and decomposable burner head Tilt mechanism, right / left (24) Holding device for 3 inoculation loop holders Nozzles for natural gas, propane/butane gas...
-
Page 5: Electrical Connection
1.2 Electrical connection: Insert the power cord into the socket (11) on the back panel of the unit, or into the socket of the foot pedal. The default supply must be connected to a voltage source of 100 - 240 V / 50/60 Hz. - Page 6 - SENSOR Auto-Off: (LED Standard and LED Sensor is on) For flame ignition, activate the DoubleClick IR-Sensor (6) by passing you hand over it twice. (see paragraph 3)The flame is extinguished automatically when the adjusted burning time expires (factory setting: 5 sec.). Alternatively the flame can be extinguished by a short push on the function knob (1).
- Page 7 Clockwise rotation: The IR-Sensor detection range increases and the blinking of the LED Sensor (5) becomes faster. Counter-clockwise rotation: The IR-Sensor detection range decreases and the blinking of the LED Sensor (5) becomes slower. Hold the hand in front of the IR-Sensor (6) to test the adjusted IR-Sensor detection range. When the IR-Sensor is activated by the hand the LED StartStop (4) lights up.
-
Page 8: Cleaning And Sterilizing
- Flame failure: Green LED “Button“, “Standard“ or “StartStop“ blinks 3x This signal indicates a malfunction if the flame is extinguished by external factors and fails to reignite within 5 sec. In case of flame failure check the burner head (9) for possible clogging and verify the correct input pressure of the gas supply. - Page 9 8. Warranty: All WLD-TEC gas burners are covered under our two-year manufacturer warranty against any manufacture defects in material and workmanship. The WLD-TEC warranty...
- Page 10 Notes...
-
Page 11: Troubleshooting Guide
Troubleshooting guide The LED’s “ do not light up Check for correct connection and specification of the power adapter. Ensure that the original power adapter is used. Specifications: 9 V / DC, 1A Polarity: The foot pedal does not work Check for correct connection of the foot pedal. - Page 12 (see paragraph 4) Amber LED “Burner head HOT / BHC“ is on permanently The residual heat display is active. DO NOT TOUCH the burner head. Can cause burns! (see paragraph 3) Service address: WLD-TEC GmbH Produktion & Service Halle-Kasseler-Str.49 37318 Arenshausen Germany...
-
Page 13: Eg-Konformitätserklärung
Following the Directives 2004/108/EC and 73/23/EWG (EEC) Der elektronische Laborgasbrenner der Serie: Electronic Laboratory gas burner Gasprofi 1 SCS micro Typ / type 6.004.000 erfüllt die in den nachfolgenden Prüfgrundlagen aufgeführten Anforderungen in Verbindung mit den in Anhang A2 aufgeführten Netzgeräten. - Page 14 Technical data: Technology Microprocessor Programs Foot pedal: Standard (flame during pressed foot pedal) Start-Stop with timer, 60 min IR Sensor: Start-Stop with timer, 60 min Auto-Off with learn function, 1 sec - 60 min Button: Start-Stop with timer, 60 min Safety features Safety Control System (SCS): ignition, flame and temperature monitor...
- Page 15 GmbH Sales department Production und Service: Spandauer Weg 1 Halle-Kasseler Straße 49 D - 37085 Göttingen D - 37318 Arenshausen Phone : +49 (0)551/793789 Phone : +49 (0)36081/68940 Fax : +49 (0)551/793707 Fax : +49 (0)36081/68942 Internet: http://www.wld-tec.com Email: sales@wld-tec.com...
