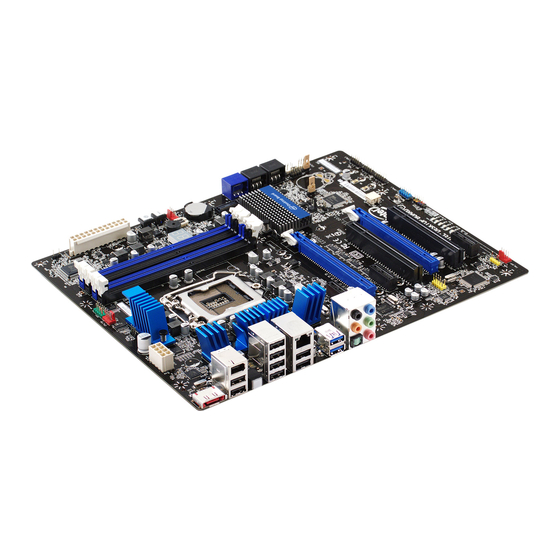

Intel® Desktop Board DP67BG
Performance Tuning Guide
Revision 1.0
December 2010
Order Number: G24387-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP67BG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intel DP67BG

Summary of Contents for Intel DP67BG

  • Page 1 Intel® Desktop Board DP67BG Performance Tuning Guide Revision 1.0 December 2010 Order Number: G24387-001...
  • Page 2 Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order. Intel, Core, Pentium, and the Intel logo are trademarks of Intel Corporation in the U.S. and other countries. *Other names and brands may be claimed as the property of others.

  • Page 3: Table Of Contents

    Back to BIOS Button ............. 12 3.4.3 BIOS Configuration Jumper............ 13 3.4.4 Remove Power and Reboot ............ 13 3.5 Intel Desktop Board DP67BG Performance Tuning Process..... 14 3.5.1 Configure the BIOS for Performance Tuning ......14 3.5.1.1 CPU Voltage Override Type........18 3.5.1.2...
  • Page 4 3.9. Selection of XMP 1600 Profile Using the BIOS Menu......23 3.10. Memory Configuration Screen ............24 3.11. Using the Intel Extreme Tuning Utility for Storing Performance Profiles .. 26 4.1. 4.5 GHz Processor Speed Using Turbo Ratios........27 4.2. 4.72 GHz Processor Speed Using Turbo Ratios with a 105 MHz System Clock Setting .................

  • Page 5: Introduction

    Intel Extreme Tuning Utility for performance tuning will find the system monitoring and stress testing features included with this software to be useful. This remainder of this guide focuses on using the BIOS for performance tuning of Intel ®...
  • Page 6 Intel Desktop Board DP67BG Performance Tuning Guide...

  • Page 7: 2 Nd Generation Intel

    Intel Desktop Board DP67BG consists of the 2 generation Intel Core processor family and the Intel P67 Express Chipset (the Platform Controller Hub (Intel P67 PCH)). The generation Intel Core processor family integrates the system memory controller and the PCI Express* x16 interface. DDR3 memory is accessed through two independent memory channels.
  • Page 8 Intel Desktop Board DP67BG Performance Tuning Guide...

  • Page 9: Intel Desktop Board Dp67Bg Performance Tuning Using Bios Setup

    3.1.1 Processor In addition to Intel Desktop Board DP67BG, a processor that allows the desired level of performance tuning by the user is required. Performance tuning capability with the 2 generation Intel Core processor family is dependent on the selected processor. Fully unlocked processor numbers end in the letter “K”...

  • Page 10: System Cooling

    External graphics tuning is specific to the graphics card manufacturer and cannot be done using either the Intel Desktop Board DP67BG BIOS or the Intel Extreme Tuning Utility. Earlier performance tuning methods where the frequency of the system clock was...

  • Page 11: Accessing Bios Setup

    Figure 3.1 will be displayed. In addition, on Intel Desktop Board DP67BG at the top of the diagnostic LED bank, a red LED will illuminate when the watchdog timer is activated. The user can then go into the BIOS screen and manually reset performance parameters or use the F9 key to reset all BIOS defaults to restore system stability.

  • Page 12: Back To Bios Button

    BIOS jumper. When the Back to BIOS button is depressed, both the button and a red LED located on the Intel Desktop Board DP67BG diagnostic LED bank will illuminate. The F9 key can then be used to restore all BIOS settings to defaults at this point or specific performance settings can be individually revised by the user to restore system stability.

  • Page 13: Bios Configuration Jumper

    BIOS Setup in a safe mode. The user will need to open their system chassis to access this jumper. Refer to the Intel Desktop Board DP67BG Product Guide for additional information on using the BIOS jumper for resetting purposes.

  • Page 14: Intel Desktop Board Dp67Bg Performance Tuning Process

    Intel Desktop Board DP67BG Performance Tuning Guide Intel Desktop Board DP67BG Performance Tuning Process There are various sequences of steps possible for doing board performance tuning. The approach presented in this guide is a general starting point, but may not be optimal for all cases.

  • Page 15: System Setup

    Leave Enhanced Intel SpeedStep Technology and CPU C States enabled in the BIOS as shown in Figure 3.4. Turbo ratios require Enhanced Intel SpeedStep Technology enabled in order to function. Disabling C states prevents the processor from entering 1, 2, or 3 core ratios. Only the 4 core ratio will have an effect when C states are...

  • Page 16: Power Settings

    Intel Desktop Board DP67BG Performance Tuning Guide Figure 3.4. Power Settings Performance tuning options are located in the menu section labeled “Performance”. Reading and agreeing to the disclaimer by selecting “Yes”, as shown in Figure 3.5, allows the detailed BIOS performance menu to be displayed.

  • Page 17: Performance Tuning Disclaimer

    Intel DP67BG Desktop Board Performance Tuning Guide Figure 3.5. Performance Tuning Disclaimer From the Performance page, processor tuning options are under the “Processor Overrides” section shown in Figure 3.6 below. Also see Appendix A for a table summarizing these settings and their effects. Sections 3.5.1.1 through 3.5.1.8 include...

  • Page 18: Cpu Voltage Override Type

    Intel Desktop Board DP67BG Performance Tuning Guide Figure 3.6. Processor Overrides Page Showing Defaults 3.5.1.1 CPU Voltage Override Type For CPU Override Type, select Static. This setting prevents dynamic adjustments that could confuse tuning efforts. Later in the tuning procedure, the dynamic setting can be restored if it does not result in thermal throttling of the processor.

  • Page 19: Intel ® Turbo Boost Technology

    Inadequate cooling may cause the processor to throttle. You can use the Intel Extreme Tuning Utility monitoring features to track processor temperature. If the processor temperature increases steadily while running under load, the processor cooler capability to dissipate heat is being exceeded and you will need to reduce the TDP power limit to prevent throttling.

  • Page 20: Check Stability

    When the system can successfully boot into the operating system, various software applications can be used to stress the processor, memory, and other subsystems. When processor cores are idle, the Intel Core processors will operate at a reduced multiplier value. While running in the operating system, the application of a heavy load will bring all processor cores out of the idle and run them at the multiplier values selected in the BIOS setup.

  • Page 21: Increase System Clock Frequency

    With the 2 generation Intel Core processor family, the system clock frequency is limited to modest increases compared to earlier Intel processors. Limited processor frequency increases can be done by raising the system clock speed and leaving the turbo ratio multipliers unchanged. Performance tuning using the system clock should be done to augment processor performance improvements already obtained using turbo ratios.

  • Page 22: Tune Memory

    In addition, DIMM socket population will also affect system performance. Intel Desktop Board DP67BG has two independent memory channels which are indicated by blue or black memory DIMM sockets. For best performance, all sockets should be populated with memory matched by manufacturer, size, speed, and type.

  • Page 23: Xmp Memory Profiles

    Intel DP67BG Desktop Board Performance Tuning Guide concurrently. When installing memory, insert memory in the blue DIMM sockets first. If more than two memory modules will be installed, install the additional memory in the black DIMM sockets. 3.5.5.1 XMP Memory Profiles...

  • Page 24: Memory Performance Options

    Note that the memory is not run directly from the host clock. The memory clock frequency is generated by the processor using input from the host clock signal received from the Intel P67 PCH. The default memory clock frequency runs at 133.3 MHz. Increasing the system clock frequency affects the memory...

  • Page 25: Going Beyond Xmp Profiles

    Intel DP67BG Desktop Board Performance Tuning Guide Example: If the host clock frequency was increased by 1% and a multiplier of 8 was being used then the new memory frequency would be (8) * (1.01) * (133.3 MHz) = 1077 MHz For the default 133.3 MHz memory clock, the resulting memory frequency with various...

  • Page 26: Archive Performance Settings

    3.5.9 Archive Performance Settings The Intel Desktop Board DP67BG BIOS allows storing one set of parameter settings (profile) at any given time. If several groups of performance settings are needed by the user, the Intel Extreme Tuning Utility allows storing multiple profiles as shown in Figure 3.11.

  • Page 27: Performance Tuning Examples

    100 MHz to 105 MHz. XMP profiles were used to obtain a memory speed of 1600 MHz. These settings are shown while running the CPU Stress Test included with the Intel Extreme Tuning Utility shown in Figure 4.3.

  • Page 28: Ghz Processor Speed Using Turbo Ratios With A 105 Mhz System Clock Setting

    Intel Desktop Board DP67BG Performance Tuning Guide Figure 4.2. 4.72 GHz Processor Speed Using Turbo Ratios with a 105 MHz System Clock Setting Figure 4.3. Intel Extreme Tuning Utility Screen Showing CPU Stress Test Running with 4.72 GHz Processor Speed...

  • Page 29: A Parameter Descriptions For Bios Performance Settings

    CPU Idle State When “Low Power” is selected, the BIOS will report a full range of available Enhanced Intel SpeedStep Technology frequency steps to the operating system. When “High Performance” is selected, the BIOS will report only the top frequency step.
  • Page 30 Intel Desktop Board DP67BG Performance Tuning Guide Setup Option Description Internal PLL This is an advanced setting that will slightly increase the internal CPU PLL Voltage for Voltage Override more aggressive overclock frequencies. Note: This setting may impact S3 functionality.

  • Page 31: B Parameter Descriptions For Memory Performance Settings

    Intel DP67BG Desktop Board Performance Tuning Guide Parameter Descriptions for Memory Performance Settings NOTE All multiplier values listed in Table B- are applied to the single 100 MHz (default) host clock. Table B-1. Memory Performance Settings Setup Option Description Performance Automatic setting uses specification compliant values provided by the memory module.
  • Page 32 Intel Desktop Board DP67BG Performance Tuning Guide...
