Binary B-220-HDSPLTR-1X4 Owner's Manual

OWNER'S MANUAL
B-220-HDSPLTR-1X4
IMPORTANT SAFETY INSTRUCTIONS
1. Read and follow all instructions and warnings in this manual. Keep for future
reference.
2. Do not use this apparatus near water.
3. Clean only with a dry cloth.
4. Do not block any ventilation openings. Install according to manufacturer's
instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves
or other apparatus (including amplifiers) that produce heat.
6. Do not override the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades - one wider than the other. If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at plug,
convenience receptacles, and the point where it exits from the apparatus.
8. Only use attachments/accessories specified by the manufacturer.
9. Unplug this apparatus during lightning storms or when unused for long periods
of time.
10. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as when the power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
11. Do not expose this equipment to dripping or splashing and ensure that no
objects filled with liquids, such as vases, are placed on the equipment.
12. To completely disconnect this equipment from the AC mains, disconnect the
power supply cord plug from the AC receptacle
Pg. 2

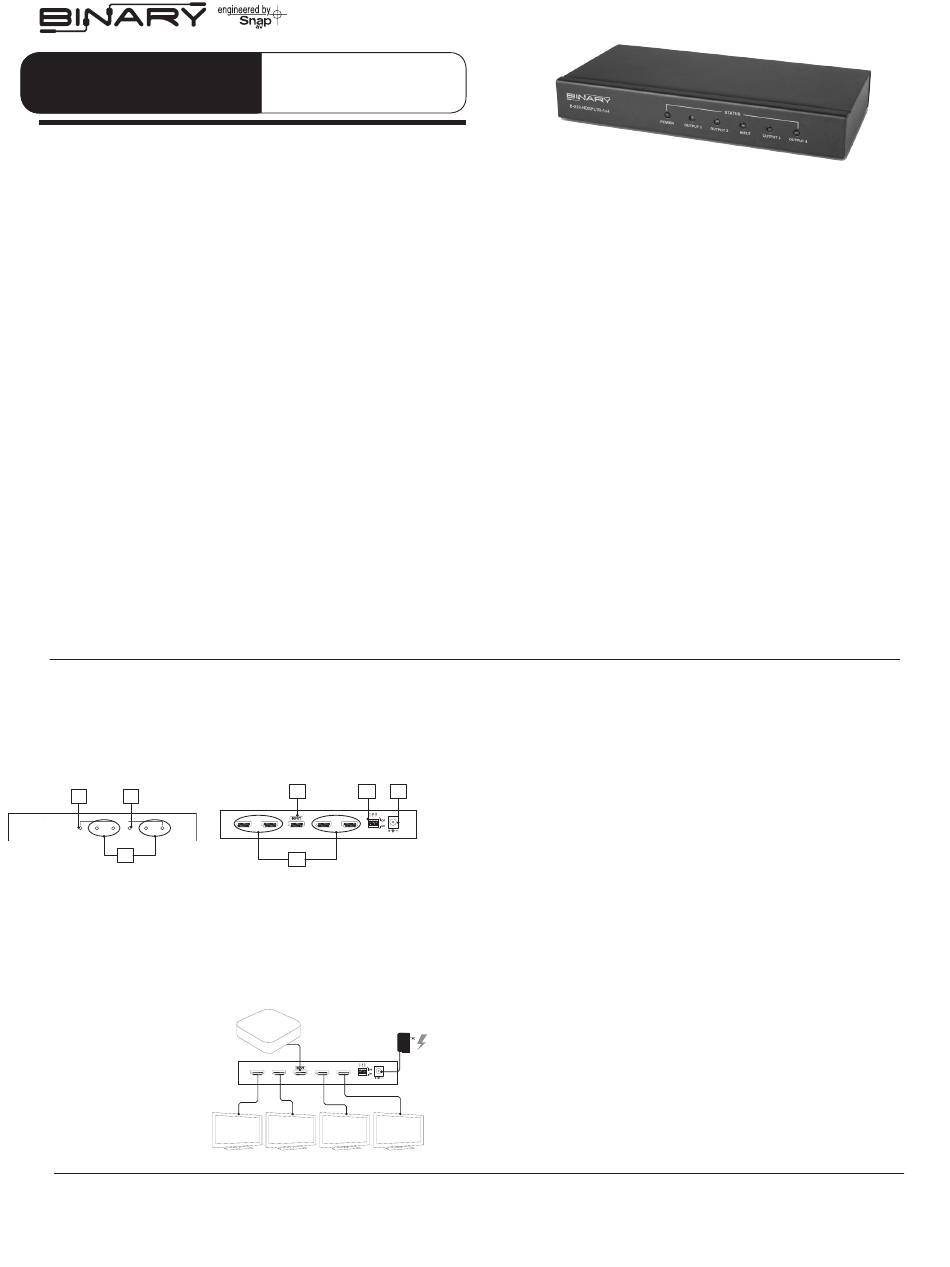

CONNECTIONS

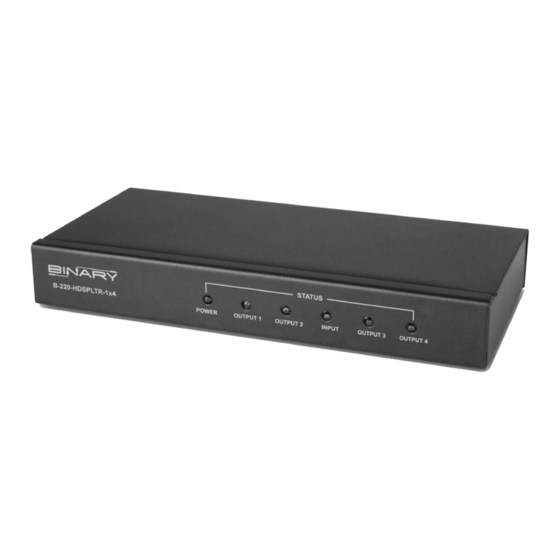

FRONT PANEL
1 2
STATUS
POWER
POWER OUTPUT 1 OUTPUT 2 INPUT OUTPUT 3 OUTPUT 4
3
1. Power LED
2. Input LED
3. Output LEDs
INSTALLATION
1. Connect the HDMI cable from the source to the B-220-HDSPLTR.
2. Connect the HDMI cable from the B-220-HDSPLTR to the displays.
3. Connect the power to the B-220-HDSPLTR.
4. Turn on the source and the devices.
Pg. 4
HDMI 1X4 SPLITTER
BACK PANEL
1 3
5V DC 1A
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
On
1 2 3
2
1. HDMI Input
2. HDMI Outputs
3. EDID Dipswitches
4. Power Supply (+5V DC)
HDMI Source
B-220-HDSPLTR-1x4
5V DC 1A
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
On
1 2 3
Flatpanel TV Flatpanel TV Flatpanel TV Flatpanel TV
WELCOME TO BINARY™
This product is designed to provide years of exceptional reliability. Binary™ is one
of the most highly-regarded Media Distribution brands available today and we
stand committed to providing our customers with the highest degree of quality and
service in the industry.
CONTENTS
(1) HDMI Splitter, 1x4
(1) 5VDC power adapter
(2) Mounting Ears
(4) Rubber Feet
(1) Owner's Manual
FEATURES
• Distributes a single HDMI signal to 4 identical and synchronized HDMI outputs
• Configurable EDID Settings
• Supports 7.1 channel surround sound, DTS-HD Master Audio and TrueHD high bit
rate audio
• 6.75 Gpbs Bandwidth
• Full HD with 36 bit Deep Color
• HDCP compliant
EDID CONFIGURATION
Auto - Reads the EDID from each of the connected displays .This setting uses the
lowest common denominator for video resolution and audio format to create and
4
apply a new EDID to all inputs.
First Output - Reads the EDID from the display connected to output 1.
Embedded 1 -6 - 6 representative EDIDs that can be assigned to Inputs. See
Dipswitch Settings (Page 6) for for details.
AC Power
© 2012 Binary™
Pg. 3
Pg. 5
