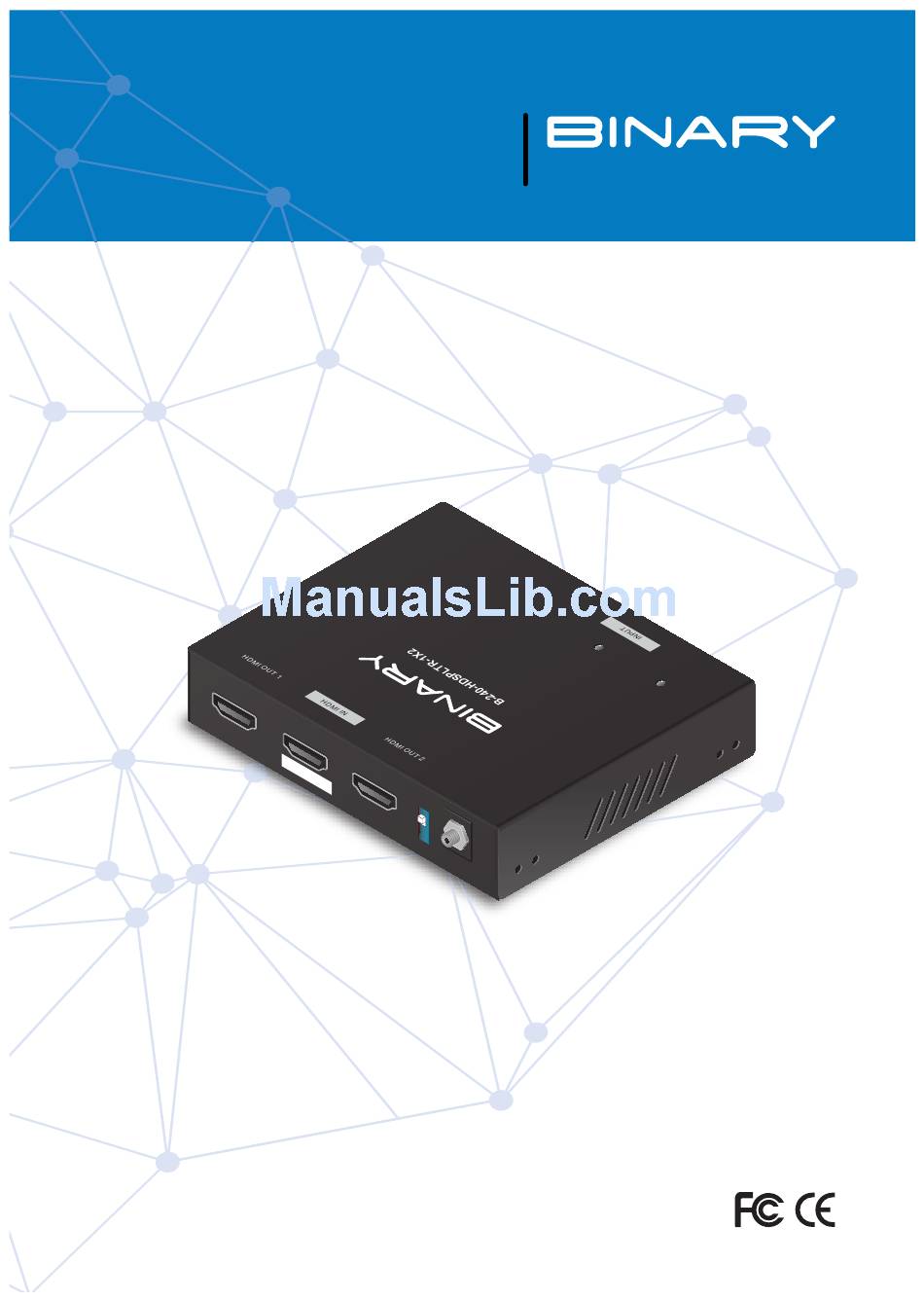

- Page 1 HDMI 1x2 Splitter B-240-HDSPLTR-1x2 INSTALLATION MANUAL Source | Mute | 2ch (HDMI Out Audio...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment. -
Page 4: Product Overview
1. PRODUCT OVERVIEW Welcome to Binary™. This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. This unit supports all HDMI defined audio and video formats, iincluding 4k@60 4:4:4, and 4K2K@30 Hz and is compatible with HDMI 2.0 and HDCP 2.2 products. -
Page 5: Device Layout
4. DEVICE LAYOUT OUTPUT +12 VDC HDMI OUT 1 HDMI IN HDMI OUT 2 AUTO EDID OUT 1 OUT 2 A. HDMI Output 1 Connect HDMI cables to local display B. HDMI Input Connect HDMI cable from source C. HDMI Output 2 Connect HDMI cables to local display D. -
Page 6: Installation And Connections
5. INSTALLATION AND CONNECTIONS Connect an HDMI cable from the source to the B-240-HDSPLTR-1x2 HDMI input. Connect an HDMI cable from each HDMI output to a display. Connect the power to the B-240-HDSPLTR-1x2. Turn on the source and the devices. -
Page 7: Specifications
6. SPECIFICATIONS Technical HDMI Compliance HDMI 4K HDCP Compliance HDCP 2.2 Compliant Video Bandwidth 4K@60 4:4:4 Input TMDS Signal 1.2V (peak-to-peak) Input DDC Signal 5V (peak-to-peak, TTL) ESD Protection (1) Human body model: ±15kV (air-gap discharge) & ±8kV (contact discharge) (2) Core chipset — ±8kV Connections HDMI 2x HDMI Type A... -
Page 8: Warranty
7. WARRANTY This Binary product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled.
