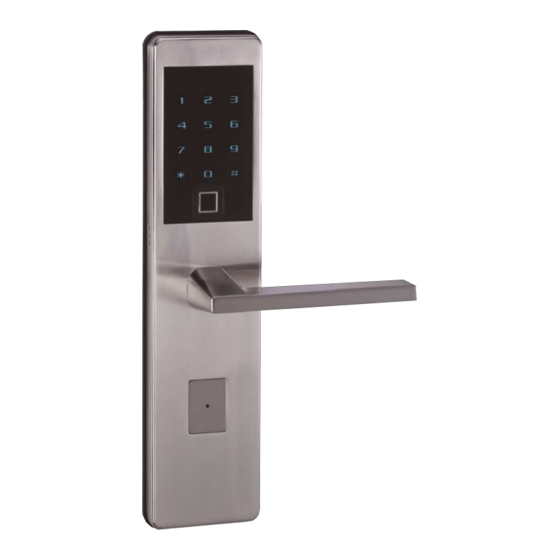

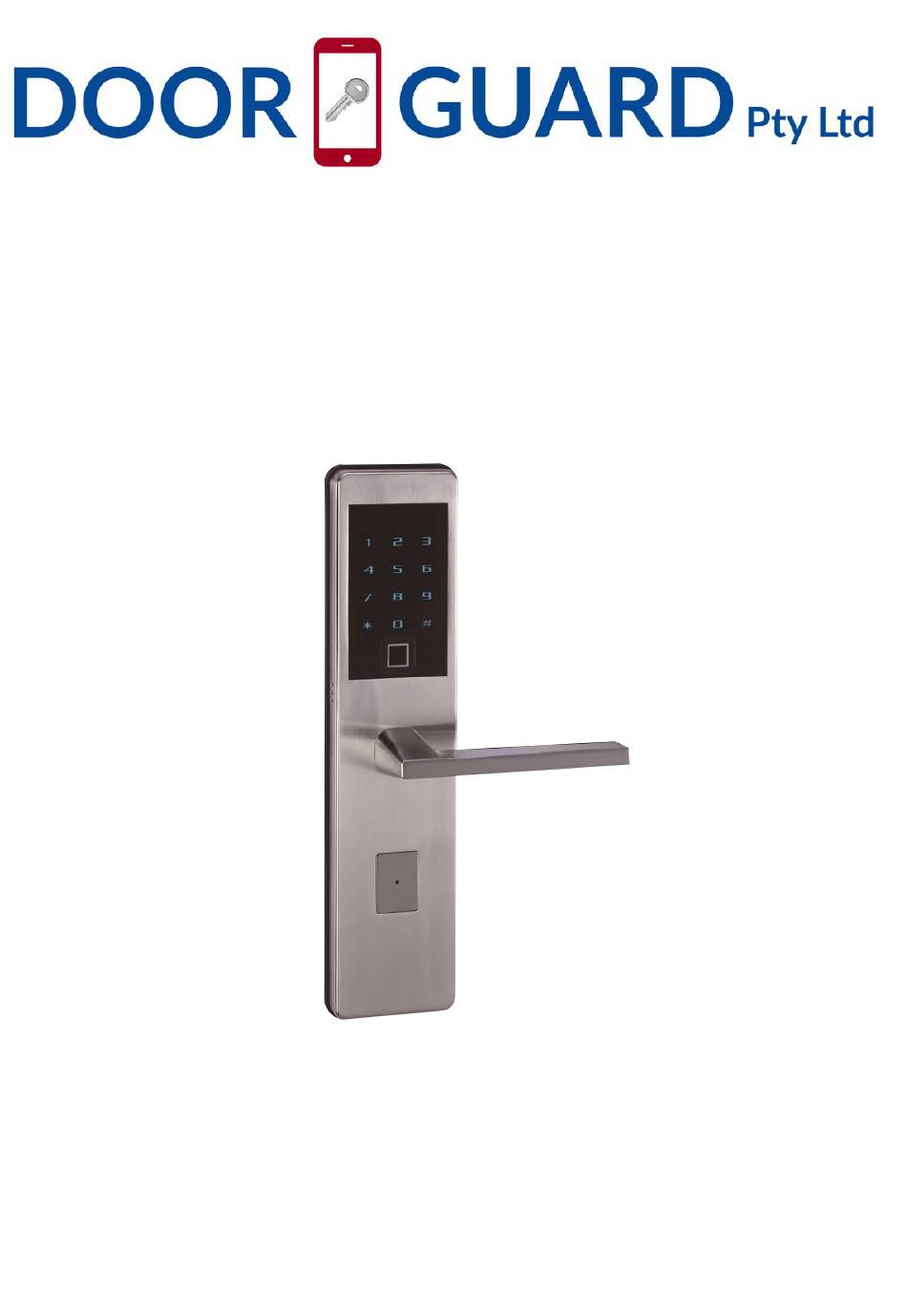

- Page 1 TS-MOR-BLK-05 / TS-MOR-SLV-05 User Manual Door Guard Pty Ltd 1 For more information please visit : www.doorguard.com.au...
- Page 2 1. INTRODUCTION Item No. TS-MOR-BLK-05 / TS-MOR-SLV-05 Door Width 40mm – 70mm Material Die Cast Zinc Alloy Body Weight 4.7kgs Door Guard Pty Ltd 2 For more information please visit : www.doorguard.com.au...
- Page 3 1-1 . Mortise Technical Specification Communication mode Bluetooth 4.0ble Support System Android 4.3 / IOS 8.0 above Unlock time ≈ 1.5 sec Power supply 4pcs AA batteries Static current ≤65uA Working current ≤200mA 1-2. Item Dimension: Door Guard Pty Ltd 3 For more information please visit : www.doorguard.com.au For Help and Support please send an email to : support@doorguard.com.au...
- Page 4 Door Guard Pty Ltd 4 For more information please visit : www.doorguard.com.au For Help and Support please send an email to : support@doorguard.com.au...
- Page 5 2. INSTALLATION GUIDE Door Guard Pty Ltd 5 For more information please visit : www.doorguard.com.au For Help and Support please send an email to : support@doorguard.com.au...
- Page 6 3. FEATURES （ PS: Because a mobile phone can be connected to more than a smart lock, when you need to manage a lock, you should click on the app to enter the door lock device ， then proceed with the next operation ) Admin Bluetooth key: Mobile phone and door lock connected, the Bluetooth lock unlocks with Bluetooth via the app.
- Page 7 Admin Password: Mobile phone and door lock connected, the Bluetooth lock unlocks with a permanent Master code. Bluetooth key remote authorization: The Admin can instantly send Bluetooth keys to other people's mobile phone APP，It can limit the use time of the Bluetooth key, and can immediately freeze, thaw and delete the electronic key.
- Page 8 4-2. Unlock (The Admin unlock) 1. After mobile phone and door lock connected，turn on Bluetooth and network--click the connected door lock device---" " to unlock. (The phone is within 5 meters from the door lock) 2. The Admin password unlock, after mobile phone and door lock connected, open the APP---click connected door lock device--click “...
- Page 9 4-7. The Admin’ s phone has the right to freeze, delete, authorize, and rename for the electronic key that has been sent Click the connected door lock device---”User” on the bottom of the interface---”eKey”---” ” on the upper right corner of the interface---choose ”Clear ekeys” or ”Reset ekeys ”or” ekey” according to your needs. If you only need to manage some of the keys, Click the electronic key that you want to manage, according to your needs to choose ”Freeze”...
- Page 10 3. Add IC card Choose “IC cards” on APP, the lock will indicate “please swipe your card”, then swipe card on sensor zone. 4. Add fingerprint Choose “Fingerprints” on the APP, the lock will indicate “Please press your finger”, after you press your finger, the lock will indicate “please press again”, then press your finger again.
- Page 11 If the user does not want to use APP to manage lock, please operate lock via keypad as below: 12. Master code （ Default code is 123456 ） Enter*12#Old code#New code#Repeat new code# 13. Add Code/IC card/Fingerprint Enter*85#Master Code#Enter fingerprint/Code/or Scan card 14.
- Page 12 Working temperature: -40 to 70ºC View access logs Power supply: 4pcs AA batteries Multiple unlocking ways Low power alarm: 4.8V Static current: 65uA Working current: ＜200mA For Installation Video please visit : http://www.doorguard.com.au/videos For any Support questions please send an email to : support@doorguard.com.au Door Guard Pty Ltd 12 For more information please visit : www.doorguard.com.au For Help and Support please send an email to : support@doorguard.com.au...
