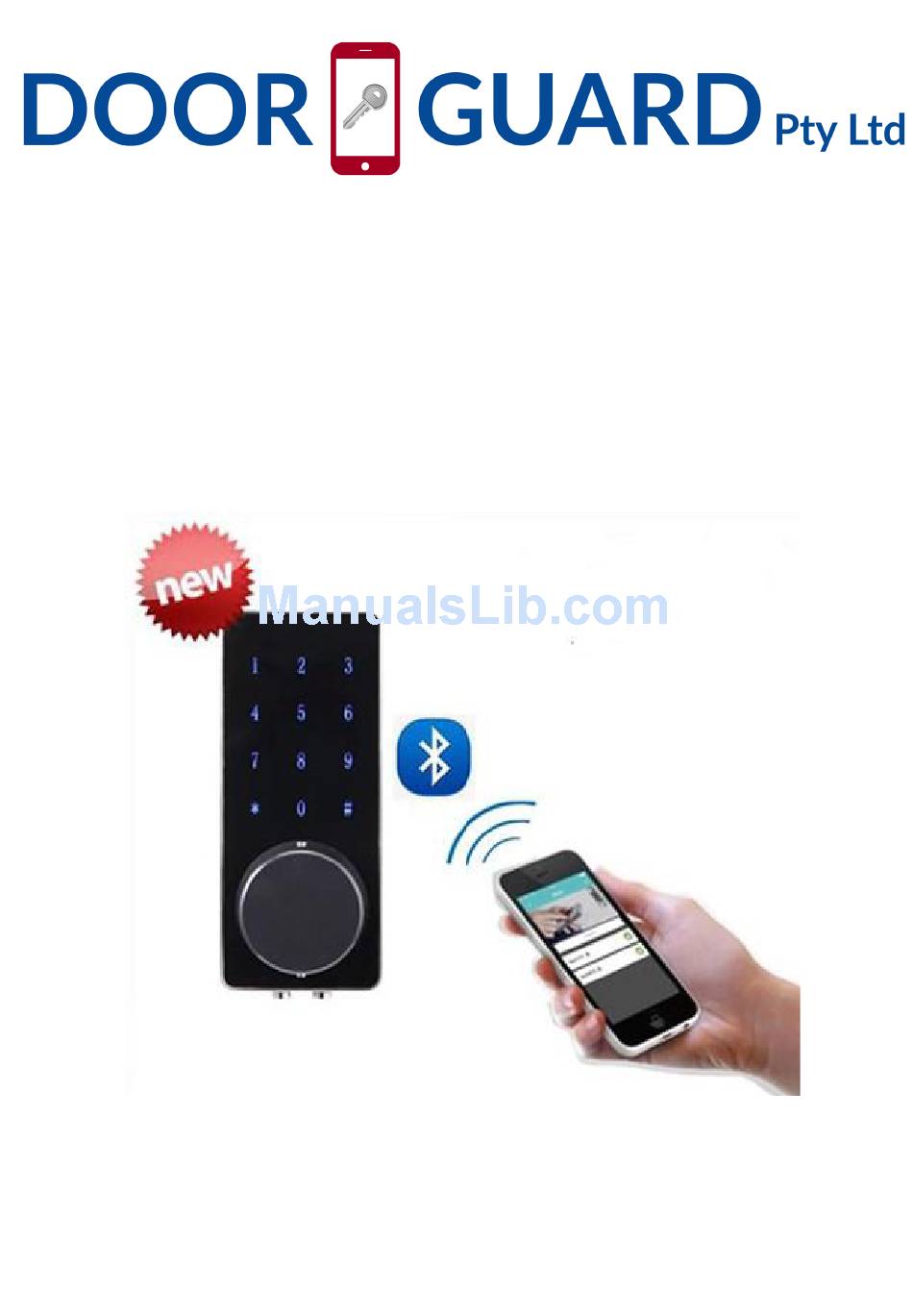

- Page 1 Installation and User Manual Model : TS-DB-SLV-05 TS-DB-BLK-05 Door Guard Pty Ltd For more information please visit : www.doorguard.com.au For Help and Support please send an email to : support@doorguard.com.au...
- Page 2 Item no. TS-DB-SLV-05 / TS-DB-BLK-05 Dimension 137*60*12mm Material Zinc Alloy Weight 1.3 kg Specifications Communication mode Bluetooth 4.0ble Unlocking way Bluetooth, Code, Mechanical key Support System Android 4.3 / IOS 7.0 above Unlock time ≈ 1.5 sec Power supply 4pcs AA batteries Static current ≤30uA...
- Page 3 Door template Door Guard Pty Ltd For more information please visit : www.doorguard.com.au For Help and Support please send an email to : support@doorguard.com.au...
- Page 4 Installation Guide Door frame≧110mm ● ●Door thickness: 38-48mm ●To install the lock for right side handling, ensure the toggle button on the back assembly is set to L. ●To install the lock for left side handling, ensure the toggle button on the back assembly is set to R. Installation instructions follow the steps in order Door Guard Pty Ltd For more information please visit : www.doorguard.com.au...
- Page 5 Door Guard Pty Ltd For more information please visit : www.doorguard.com.au For Help and Support please send an email to : support@doorguard.com.au...
- Page 6 Important Note : The Long Metal Bar shown in the Third Picture on the Top Row should be in the VERTICAL position during installation (while inserting into the cross on the Dead bolt). If it is not then you wont be able to operate the lock. FEATURES Note ：...
- Page 7 next steps nlock Door Bluetooth and App Please ensure your Mobile phone and door lock are connected and press the Lock icon on your Mobile Phone. This will unlock the door via Bluetooth. Admin Password Key in the Password on the Lock Keypad and press # to unlock the Door. Bluetooth key remote authorization The Admin can instantly send Bluetooth keys to other people's mobile phone APP，you can also limit the use time of the Bluetooth key, and can immediately freeze, thaw and delete the electronic key.
- Page 8 When battery power is low, the Bluetooth lock will emit low battery warning sound. The battery level will also be updated on the app while operating the lock using Bluetooth. If battery power runs out, use 9V backup battery to unlock the door and replace battery or use the mechanical key Monitoring When users use app or password to unlock，the Admin can review the Unlocking Logs on phone.
- Page 9 3. If the lock is not correctly installed You will hear a sound “Di Di” Please read the installation instructions and ensure the front panel is flush to the door (The white button on the back of the Front Panel should be “pressed” against the door frame 4.
- Page 10 Press and hold ”#” about 5 seconds to lock. Auto Locking To configure Auto lock, select the appropriate lock —click” ” on the upper right corner of the interface---auto lock--choose set time 5s – 120s---OK.（ps：This operation must be near the door lock and need to be connected to Bluetooth）...
- Page 11 click ” ” on the upper right corner of the interface to change the validity of the electronic key that has been sent. （ps ： This operation need to be connected to Bluetooth and network) Password remote authorization (Admin’ s phone can remotely send password to other users to unlock) Click the connected door lock device---”Passcode”...
