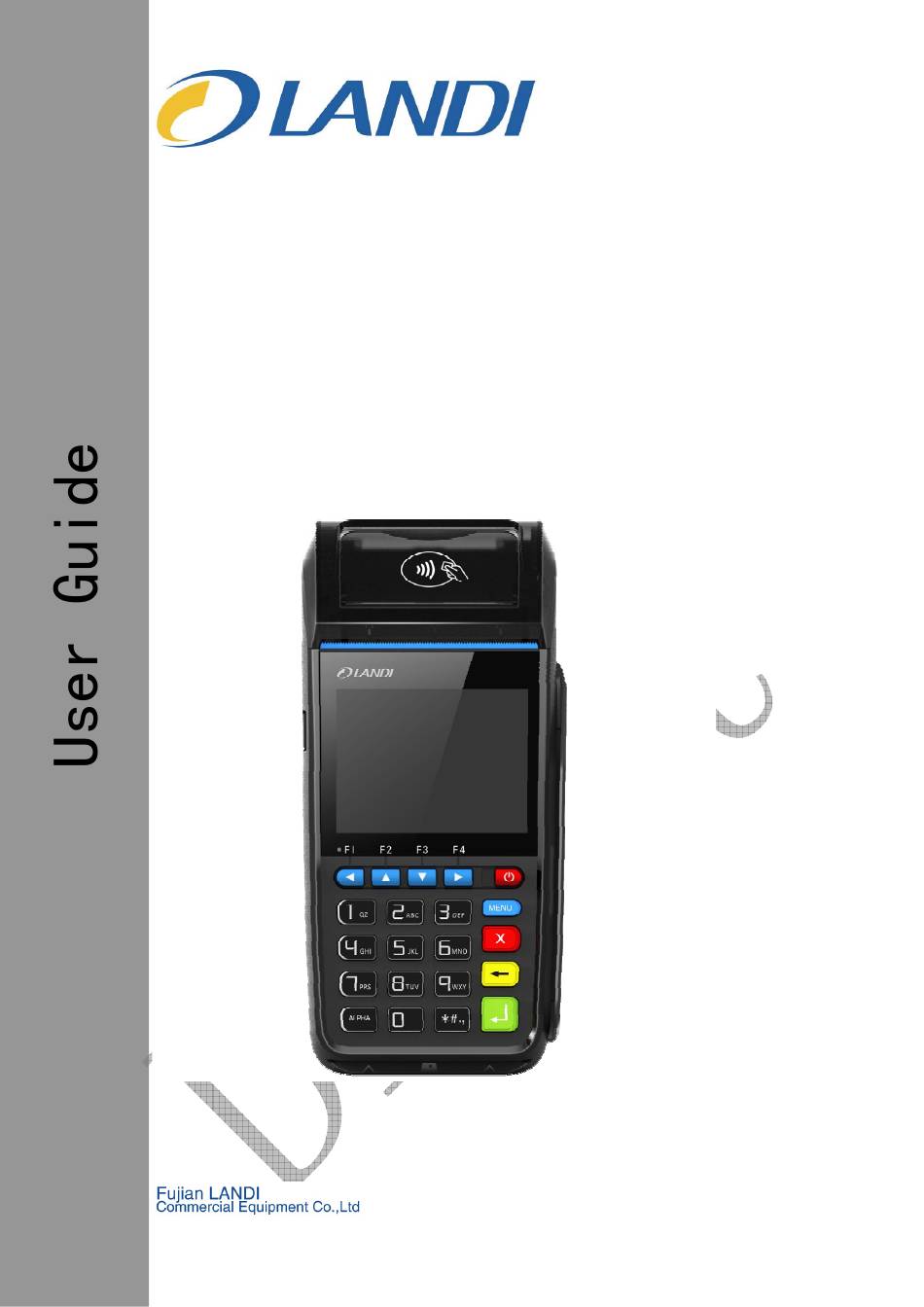

- Page 1 Model：E850 Wireless POS This document is the property of LANDI. Its content cannot be reproduced or divulged without the company’s written approval. ...
-
Page 2: Table Of Contents
MATTERS NEED ATTENTION ........................17 8 TRANSPORTATION AND STORAGE......................17 9 CUSTOMER SERVICE CENTER ........................18 ......................... 18 OTE ABOUT FTER SALES ERVICE ............................18 RODUCT AINTENANCE ................................... 18 ONTACT This document is the property of LANDI. Its content cannot be reproduced or divulged without the company’s written approval. 2 / 18 ... -
Page 3: Disclaimer
LANDI’s prior written consent. Fujian LANDI reserves the right to claim compensation on all direct or indirect loss incurred by the above illegal action. Fujian LANDI shall not be liable for any damages, failures and data loss to device or accessories resulting from improper operation not in accordance with the guidance of this manual. - Page 4 In no event shall LANDI be liable for any data or revenue loss, or consequential, indirect, punitive, special or incidental damages resulting from any reasons.
-
Page 5: Standard Compliance
ETSI ES 203201: Harmonized basic attachment requirements for Terminals for connection to analogue interfaces of the Telephone Networks. 1.2 Network compatibility declaration The product: E850 is in conformity with the following harmonized standards or technical rules: ETSI ES 203201 ETSI TR 103000 is designed to interwork with the following European analogue Public Switched Telephone Network (PSTN) networks: ….country list…... -
Page 6: Acronym Definitions
1 Product Introduction 1.1 Unpacking Inspection Please open the box and check carefully if the terminal and accessories were unpacked or damaged due to transportation. E850 is a device with security characteristic. Any disassembly will probably make it work abnormally. -
Page 7: Appearance And Interface
WARNING E850 is a device with security characteristic. Any disassembly will probably make it work abnormally. ***************************************************************************************** 1.2 Appearance and Interface 1.2.1 Appearance 1, LCD display 2, Keypad 3, IC card slot 4, Battery cover 5, Magnetic card swiping slot 6, Printer ... -
Page 8: Interfaces
1.2.2 Interfaces 1, Battery Compartment 2, SAM Card Socket 3, SIM Card socket 4, MicroSD Card Socket 5, Battery Contacts 1, USB host port and power port This document is the property of LANDI. Its content cannot be reproduced or divulged without the company’s written approval. 8 / 18 ... -
Page 9: Product Technical Characteristics
Optional base port, supporting charging and expandable communication interface Rechargeable li-ion battery,7.2V/2600mAh Battery Power adapter：AC 100V～240V 50～60Hz/0.2A Power Supply Output：5V/1A Working temperature: -30℃～50℃ Environmental Storage temperature:: -20℃～70℃ Characteristics Relative humidity: 5%～90℅, Non-condensing 172mm L×80mm W×60mm H Dimension & Weight 375g incl. battery This document is the property of LANDI. Its content cannot be reproduced or divulged without the company’s written approval. 9 / 18 ... -
Page 10: Product Function And Configuration
SAM/SIM card, contactless card and MSR card read/write as well as various wireless communication modules including 3G, WIFI are all supported. E850 also supports thermal printer, scanning, GPS and terminal extended applications. High-capacity lithium battery which is charged through MicroUSB interface is adopted for E850. -
Page 11: Sim Card Installation
Keep the MicroSD card metal contacts facing down, gently insert it following the arrow direction until the card is completely embedded. Remove the MicroSD card: Press the top of the MicroSD card and pull it out slowly. This document is the property of LANDI. Its content cannot be reproduced or divulged without the company’s written approval. 11 / 18 ... -
Page 12: Battery Installation
Aim the polarity of the battery to the contact for installation or removal. Close the battery cover. ***************************************************************************************** WARNING E850 POS terminal can only work with battery inside. USB interface input power is used for battery charging only. ***************************************************************************************** 3.5 Installation of Print Paper Open the printer cover on the top of POS terminal. -
Page 13: Power On/Off Operation
Normal power on: Make sure the terminal battery is correctly installed and charged. Press <Power> button for about 1s until the terminal displays the figure below: Normal power off: Press <Power> button for 2s until the terminal displays the figure below: This document is the property of LANDI. Its content cannot be reproduced or divulged without the company’s written approval. 13 / 18 ... -
Page 14: Magnetic Card Reader
The IC card should be horizontally inserted into the card reader with chip side upwards. Make sure the card is completely inside the card reader and prevent the card chip contacts from being damaged or oxidized. Otherwise it may cause transaction failure. This document is the property of LANDI. Its content cannot be reproduced or divulged without the company’s written approval. 14 / 18 ... -
Page 15: Rf Card
4.5 RF Card Place the RF card right against the sensing area and remove it until card swiping success prompts. The sensing area of E850 is right above the paper cover. 5 Product Maintenance Guide 5.1 Magnetic Card Reader and ICCR Maintenance Do not attempt to clean the magnetic card reader and IC card reader, for this action may result in damage to the terminal, and that cause warranty invalid. -
Page 16: Notes Of Wireless Communication
The wireless communication feature requires the support from local telecom operators. To use such function, you should obtain the data-enabled SIM/UIM card from local telecom operators. You can then insert this card into E850 card slot; and power the device on to implement corresponding operations. When the LCD display the signal icon, it represents the network is successfully connected. -
Page 17: Matters Need Attention
15cm above the ground, and be away from heat, cold, window or air inlet source at least 50cm. ****************************************************************************************** NOTE There is transport warning on the package, please comply with the instruction. Otherwise, it may cause damage to terminal. ****************************************************************************************** This document is the property of LANDI. Its content cannot be reproduced or divulged without the company’s written approval. 17 / 18 ... -
Page 18: Customer Service Center
For details, please see the warranty manual. Contact Fujian LANDI Commercial Equipment Co., Ltd Add: No.68 Hongshanyuan Road, Gulou district, Fuzhou. Mailing Add: Building 23, the 1st Section, Software Garden, No.89 Software Road, Fuzhou, Fujian, China...
