Inductive Guard Tour Reader Usage Manual
BP-2002S Guard Tour Reader
BP-2002F Guard Tour Reader
BlueCard
Main Features

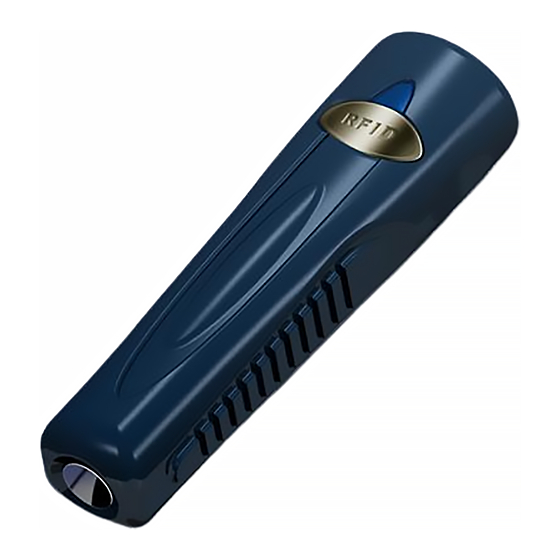

BP-2002S serial Guard Tour Reader employs inductive data collection (RFID),
and single-chip manufacturing technologies. It conveniently operates without
needing a button, and automatically detects and reads radio-frequency ID cards.
The BP-2002S serial product is used to collect relevant patrol information at set
points such as route, guard, location, time, and events, and then upload them to
the PC for processing and verification.
The main different between BP-2002S and BP-2002S-V is the BP-2002S-V has
a LCD display window.
First-Time usage
Before reading signal cards, first connect with the PC and start the software to
calibrate the reader's internal clock. Wait until it automatically shuts down
before performing readings. After calibrating, please initialize the reader to make
sure the reader does not have any useless records.
Advertisement
Related Manuals for BlueCard BP-2002S
Summary of Contents for BlueCard BP-2002S
- Page 1 It conveniently operates without needing a button, and automatically detects and reads radio-frequency ID cards. The BP-2002S serial product is used to collect relevant patrol information at set points such as route, guard, location, time, and events, and then upload them to the PC for processing and verification.
- Page 2 English Operation Instructions BP-2002F Turning On and Off BP-2002S The system will turn on automatically to perform card reading when it is Turning On and Off within the range of a valid signal card. It will automatically shut off when card reading is complete.
-
Page 3: Status Indications
BlueCard English Status Indications BP-2002F BP-2002S A display of the current time. 1 Beep With 4 Flashes Reading is successful. (If a card reading has just been made, is accompanied by 4 beeps After Reading a Card, 4 Beeps With 4 Flashes with 4 flashes of the LED.) The reader’s memory is full. - Page 4 BP-2002S guard tour reader in its indentation. The reading BS-6000 head of the BP-2002S should be between the status lights of the BS-1000, and its top should be flush against the inside edge of the BS-1000. The “Connect” window should be started in the PC software,...
-
Page 5: Working As Card Reader
“BP-2002S Reader Battery Change Instruction” to change the Working As Card Reader battery. The BP-2002S guard tour reader can be used as a standard signal card reader used for various applications. Failed to upload data to the software and followed by 8 beeps with 8... - Page 6 PC software. saved in the reader. Solution 3: check to see if the BP-2002S is placed properly on the BS-1000. The reading head of the BP-2002S should be between the status lights of the BS-1000, and its top should be flash against the inside edge of the BS-1000.
- Page 7 BlueCard English 2002S data sheet 2002F data sheet...
-
Page 8: Battery Usage Guidelines
BlueCard English Battery Usage Guidelines Always follow your battery manufacturer’s directions fully. Do not attempt to disassemble, recharge, short circuit, or subject the battery to high temperature or fire. Failure to replace the batteries when they are low may cause the reader to shut down and stop to reading the checkpoint cards. - Page 9 Changing the Battery on the BP-2002S Reader 2. Two round depressions are revealed beneath the label. Note: the battery type used on the BP-2002S reader is type CR123A, which can be purchased in many convenience stores. Below is an example of the battery: 1.
- Page 10 5. Open the battery cap and remove the battery (please refer to the silicone-waterproofing ring. If the ring is damaged during the battery document named “BP-2002S Battery Change.doc” for more details). replacement process, please replace it with the spares provided. In...
- Page 11 8. Replace the silicone shock-absorption pad, the battery, and the NOTE: BP-2002S-V use the exactly same way to change the battery. battery cap. If the reader makes a long beeping sound with LED Please follow above instructions to replace the BP-2002S-V battery.
- Page 12 BlueCard English...
