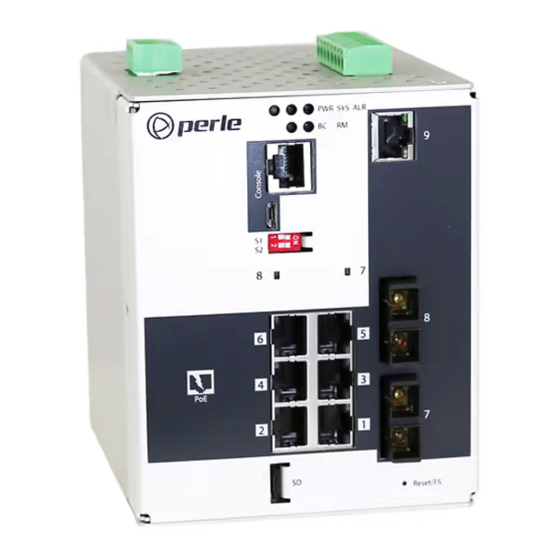

Perle IDS-509FPP Quick Start Manual

___________________________________________________
This guide covers basic installation and configuration and is intended for first time
setup or product evaluation.
Complete details can be found in the following guides at www.perle.com/downloads.
•
IDS-509FPP Hardware Installation Guide
•
IDS Managed Switches User Guide – Pro Feature Set
•
IDS Managed Switches CLI Guide – Pro Feature Set
What's in the box?
•
The IDS switch
•
Quick Start Guide (this document)

Hardware Overview

Front View
1 – Terminal Block for Power 1, 2
2 – Status LEDs
3 – Console Port – serial
4 – Console Port – USB
5 – DIP switches
6 – 100Base-X Fiber Ports
13 – DIN Rail Clip
IDS-509FPP Switches Quick Start Guide P/N 5500367-10 (Rev A)
IDS-509FPP Switches
Quick Start Guide
Back View
7 – PoE/PoE+ Enabled Ethernet Ports
8 – SD Card Slot
9 – Digital Inputs/Relay I/O
10 – Reset/FS(Fast Setup)
11 – Fiber Status LEDs
12 – Wall Mount Bracket Screw Holes
Version #A1.13.03.2017
