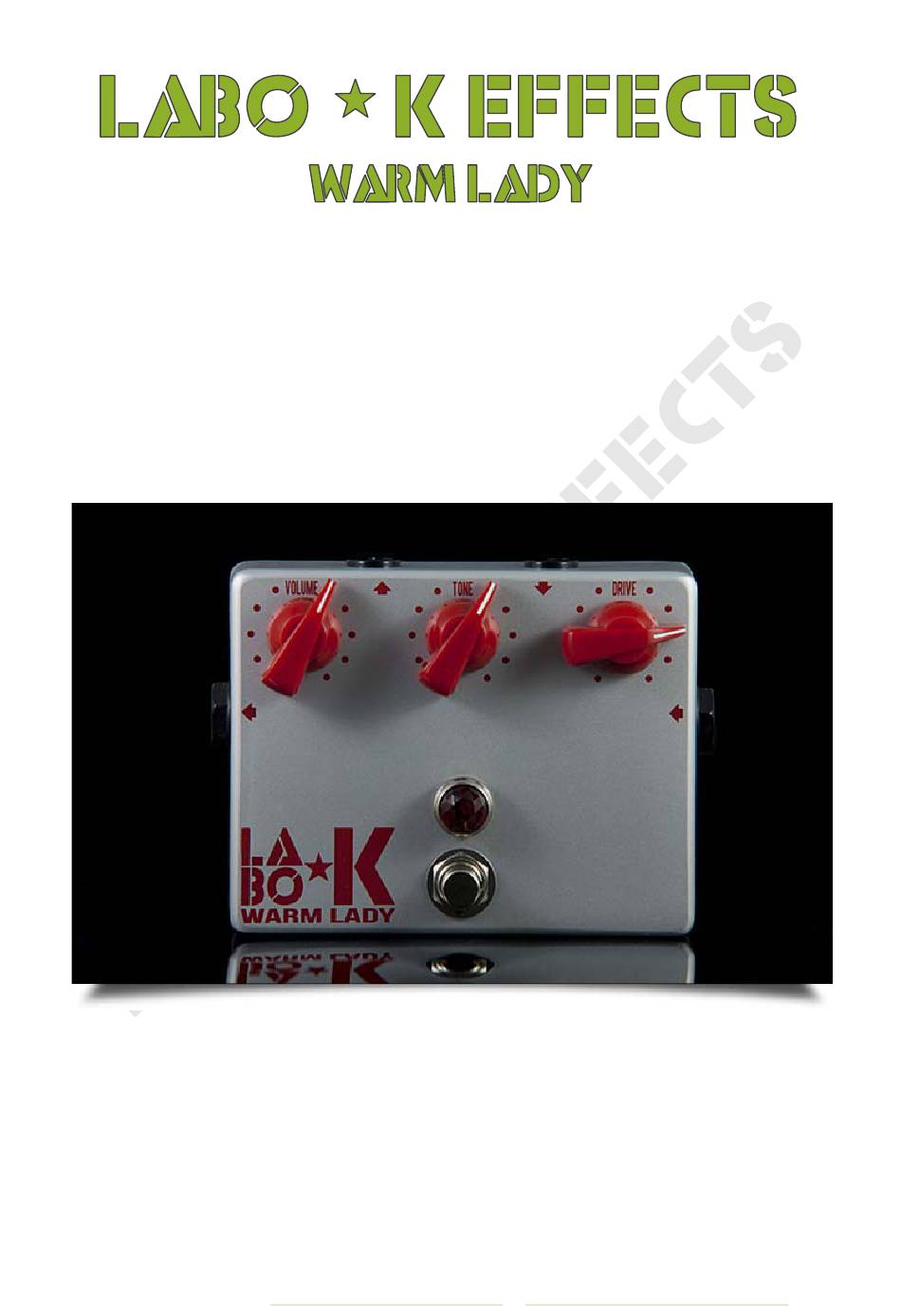

- Page 1 Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
-
Page 2: Table Of Contents
Contents CONTENTS TECHNICAL INFO OVERVIEW CONTROLS POWER SUPPLY POWER-LINK SYSTEM ADVICES TROUBLESHOOTING RECALL SHEET Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com... -
Page 3: Technical Info
technical info COntrols § Output level (Volume) § Tone (Tone) § Distortion amount (Drive) TECHNOLOGy § Selected components § Robust diecast enclosure § Cliff et Lumberg connectors specifications § True Bypass 3PDT switch. § Consumption 4mA. § Power: 9V battery or AC adapter DC 9V (not included). §... -
Page 4: Overview
The Warm Lady will give body to your sound even at low level. Like all Labo ★ K Effects pedals, the Warm Lady is True By Pass. It means that when the effect is not active, the device is completely disconnected from the path of the signal and thus adds none résistive load in this one (The accumulation... -
Page 5: Controls
I – THE POTENTIOMETERS 1. Volume This control adjusts the output level of the Warm Lady. 2. Tone The tone control acts on the frequency range of the signal. 3. Drive This setting controls the amount of distortion. Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com... -
Page 6: Power Supply
§ 9V battery from another Labo ★ K Effects pedal via « Power-Link » cord. Notes : The power consumption of the Warm Lady is 4mA what gives internal battery a comfortable lifetime. When the input jack is not pressed, the internal battery is disconnected. -
Page 7: Power-Link System
power-link system The Power-Link system of Labo ★ K Effects allows an external power supply to power several Labo ★ K Effects pedals via the cable supplied with each pedal by creating a daisy chain. Using the Power-Link system of Labo ★ K Effects it is even possible to power a Labo ★... - Page 8 USE OF THE POWER-LINK CORD Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
-
Page 9: Advices
If an external adapter is exclusively used, it is recommended to remove the internal battery Use as Booster: The Warm Lady can be used as a booster after the Fuzz Ultra for example. Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com... -
Page 10: Troubleshooting
troubleshooting STAGE 1 No sound comes out of the device: § Verify that all your equipment works without the pedal. § Insert the pedal into the chain. § If the sound takes out in by pass mode, go directly in the stage 2. If the sound does not comes out either in by pass mode, nor in effect mode, go directly to the stage 4 STAGE 2... -
Page 11: Recall Sheet
RECALL SHEET Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
