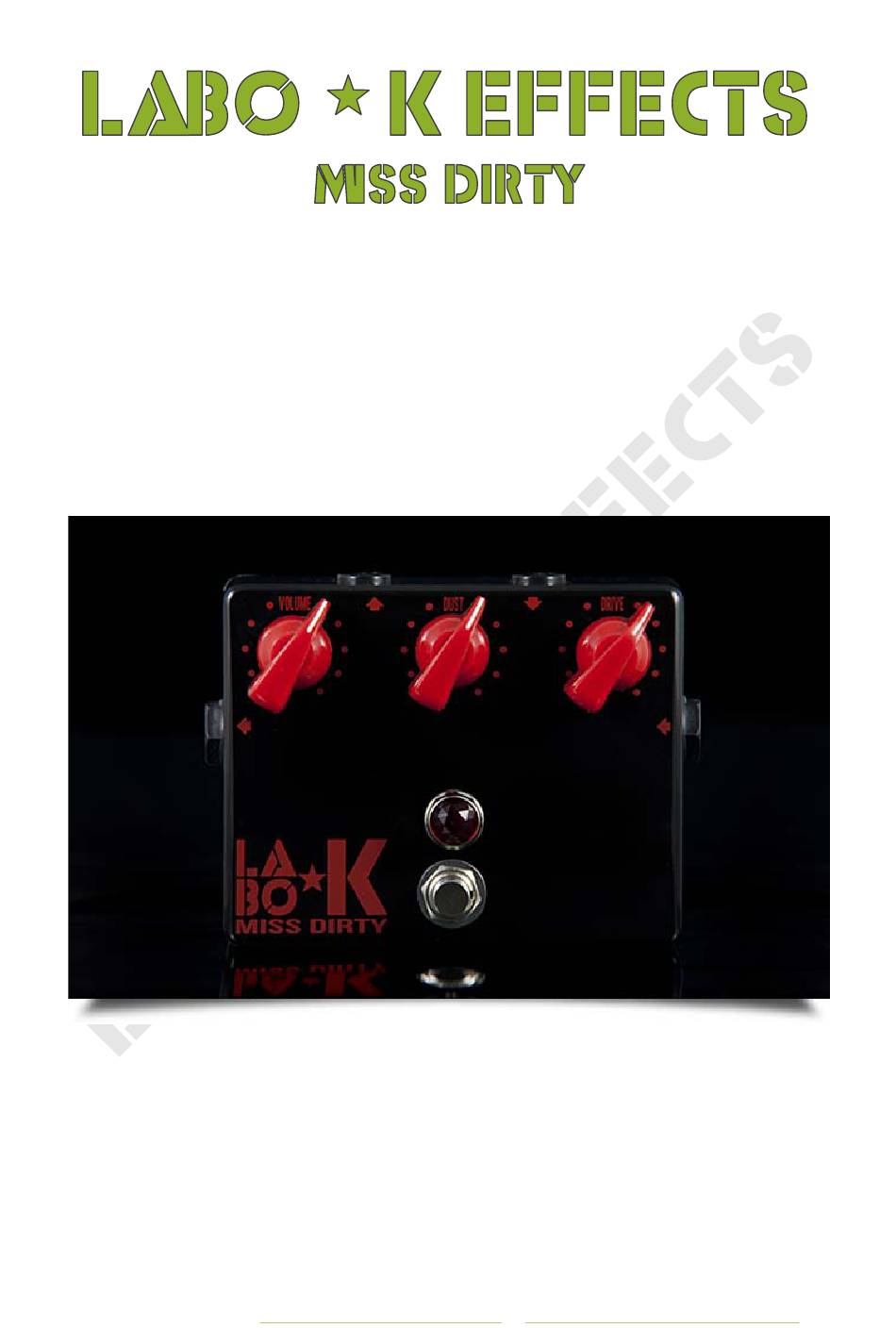

- Page 1 Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
-
Page 2: Table Of Contents
Contents CONTENTS TECHNICAL INFO OVERVIEW CONTROLS POWER SUPPLY POWER-LINK SYSTEM ADVICES TROUBLESHOOTING RECALL SHEET Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com... -
Page 3: Technical Info
technical info COntrols § Output level (Volume) § Dust (Low Octave) § Saturation (Drive) TECHNOLOGy § Selected components § Robust diecast enclosure § Cliff et Lumberg connectors specifications § True Bypass 3PDT switch. § Consumption 4mA. § Power: 9V battery or AC adapter DC 9V (not included). §... -
Page 4: Overview
It has a volume control, an adjustment of the amount of octave and a setting drive. Like all Labo ★ K Effects pedals, the Miss Dirty is True By Pass. It means that when the effect is not active, the device is completely disconnected from the path of the signal and thus adds none résistive load in this one (The... -
Page 5: Controls
I – THE POTENTIOMETERS 1. Volume This control adjusts the output level of the Miss Dirty. 2. Dust Dust is the amount of « dirty »sound. 3. Drive This setting is the percentage of signal saturation Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com... -
Page 6: Power Supply
Link » cord. § 9V battery from another Labo ★ K Effects pedal via « Power- Link » cord. Notes : The power consumption of the Miss Dirty is 4mA what gives internal battery a comfortable lifetime. When input jack... -
Page 7: Power-Link System
power-link system The Power-Link system of Labo ★ K Effects allows an external power supply to power several Labo ★ K Effects pedals via the cable supplied with each pedal by creating a daisy chain. Using the Power-Link system of Labo ★ K Effects it is even possible to power a Labo ★... - Page 8 USE OF THE POWER-LINK CORD Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
-
Page 9: Advices
advices To keep the integrity of the sound, use good quality mono Jack cords exclusively. To extend the life of the battery, remove the connector of the input jack when not using the device. Replace the battery when the light shines only weakly or not at all during the use. -
Page 10: Troubleshooting
troubleshooting STAGE 1 No sound comes out of the device: § Verify that all your equipment works without the pedal. § Insert the pedal into the chain. § If the sound comes out in by pass mode, go directly to the stage If the sound does not comes out either in by pass mode, nor in effect mode, go directly to the stage 4 STAGE 2... -
Page 11: Recall Sheet
RECALL SHEET Labo ★ K Effects – www.labo-k-effects.com – contact@labo-k-effects.com...
