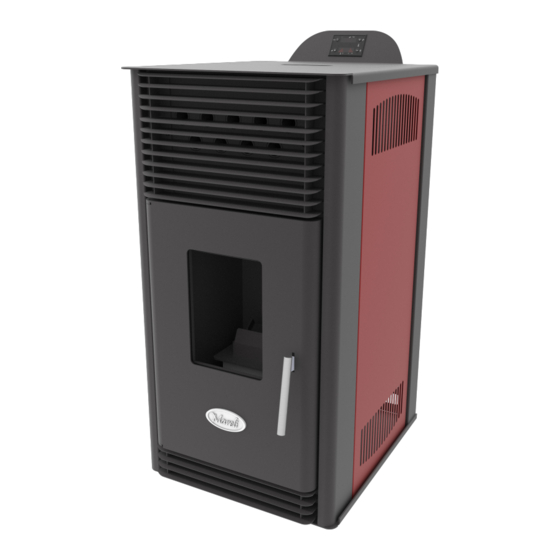

- Page 1 Mareli Systems PS 10 Pellet stove Assembly and exploitation manual The present stove is designed and manufactured according to Standards: BNS (Bulgarian National Standard) EN 14785-2006...
-
Page 2: Safe Distances
Mareli Systems Observing the prescriptions of the present manual is in the user’s favour and is one of the war- ranty conditions. Compliance with this instruction is in the interest of the consumer and one of the warranty terms. NSTRUCTIONS FOR SECURITY: •... - Page 3 Mareli Systems 1. PURPOSE The stove is purposed to heat domestic and public premises by the means of pellets. The stove is equipped with a steel water jacket designed for heating systems with water temperature up to 90º C at a maximum super pressure up to 0,15 Mpa. Tests are run at pressure of 0,3 Mpa.
-
Page 4: Technical Data
Mareli Systems 2. TECHNICAL DATA 3. ASSEMBLY 3.1 General conditions. For ensuring the proper and safe work of the stove the observation of the following prescriptions is required: The assembly of the stove and the related equipment must be performed by authorized personnel only. - Page 5 0,3 litr on a single start-up. The accumulating char reduces the temperature difference and the condensation. • “Mareli Systems” provides a warranty and out of warranty service and replacement of the water jackets. • The warranty is not valid in case of a stove with a swollen water jacket which is a result of pressure increase in the system and improper connecting.
- Page 6 Mareli Systems 3.3 Assembly of the duct components. Duct components and pipes For the assembly of the duct pipes the use of non-flammable materials, resistant to the flammable products and condensation is obligatory. The assembly must be performed in such a manner so it guarantees the airtight sealing and prevents condensation.
- Page 7 Mareli Systems 3.5 Air intake Suction pipe or air intake is placed in the back and has a cir- cular section with a diameter of 48 mm. The combustion air can be aspirated: • From the camera, as long as it is near an air intake com-...
- Page 8 Mareli Systems 5 Safety and unexpected risks Terms of danger may arise in the following cases: • Automated pellet stove is used incorrectly; • The unit is installed by unqualified personnel; • The safety instructions described in this management are not met;...
- Page 9 Mareli Systems Control Panel: Use and Functions CLICK LONG PRESSURE Ignition / Extinguishing / Visualisations / Exit Menu Block reset Combustion Power modify / Manual pellet loading Save data ermostat modify (+) / Pellet loading correction Increase data ermostat modify (-) /...
- Page 10 Mareli Systems MESSAGES Description Code Sond Anomaly of the probes checking, during Check Up phase. Room temperature greater than 50 °C. Clean is message noti es that the planned hours of functioning (parameter T67) are reached. Port Door Open. Ignition e message appears if the system is turned o during Ignition (a er Preload) not manually: the system will stop only when it goes in Run Mode.
- Page 11 Mareli Systems Pellet Loading Correction P3 CLICK (3 sec) e long pressure of button activates this function (You have to do it two times to access the modify modality). e bottom display shows PELL, the upper display the value. With buttons...
- Page 12 Mareli Systems P3/P4 Using the buttons is possible to view all programs: STOP • e top of the display shows programs; • No Programs is shown with (- - - -); • e bottom of the display shows: day / time zone / start / stop;...
- Page 13 Mareli Systems...
- Page 14 Mareli Systems...
- Page 15 Mareli Systems...
- Page 16 MARELI SYSTEMS disclaims any responsibility for possible inaccuracies contained in this manu- al if they are due to printing or transcription errors. We reserve the right to make any change that appears to be necessary or useful without harm the essential characteristics.
