B L A Z E O R I G I N A L ™
I N S T R U C T I O N S M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blaze Original and is the answer not in the manual?

Questions and answers

Related Manuals for Eureka Blaze Original

Summary of Contents for Eureka Blaze Original

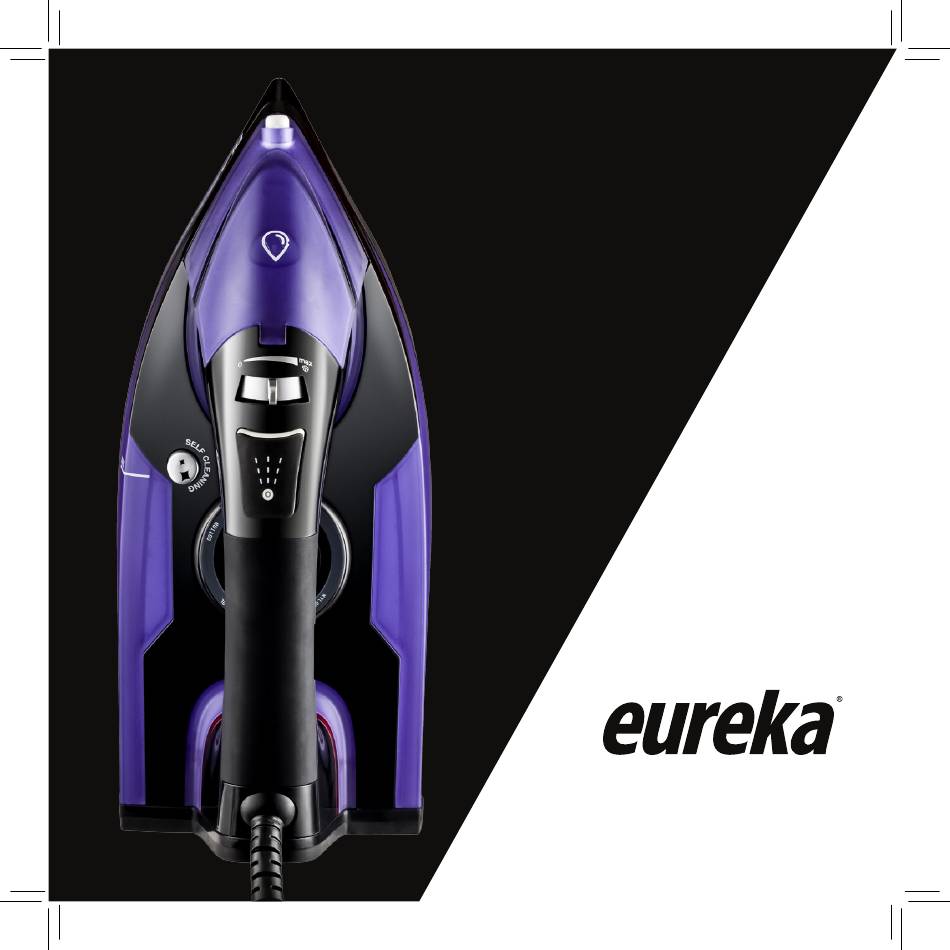

  • Page 1 B L A Z E O R I G I N A L ™ I N S T R U C T I O N S M A N U A L...
  • Page 3 Cautions for the first use Remember, safety should be your first priority. 1. Please make sure that you disconnect all other electronic devices connected to the power line you plan on using for your iron. 2. Make sure that you have removed any packaging or protective covers from the soleplate.

  • Page 4: Safety Instructions

    Safety Instructions 1. Whenever you need to step away from the iron, make sure that you unplug it and leave the iron in a vertical position with soleplate facing upright. 2. Avoid children near the plugged iron. 3. Avoid contact of hot soleplate with your hands or flammable objects during use.

  • Page 5: Parts And Features

    Parts & Features 1. Spray Nozzle 7. 10 Foot Electrical Cord with 2. Water Filling Cover 360º Pivot. 3. Steam Control 8. Heat Settings Dial 4. Spray Mister 9. LED Indicator Light 5. Gripsoft™ 10. Water Tank Rubberized Handle 11. Nano-Ceramic Shield™ Coated Soleplate 6.
  • Page 6 Dry Ironing 1. Set the movable Steam Control Lever to point ‘’0’’. 2. Adjust ironing temperature in accordance with the fabric’s requirement. 3. The light “ON” indicates that the iron’s temperature is increasing steadily. Once desired temperature is reached, the light will turn “OFF” automatically. Filling with Water Before filling the water tank, make sure that the iron is unplugged, temperature dial is positioned at the “OFF”...
  • Page 7 3. The light “ON” indicates that the iron’s temperature is increasing steadily. Once desired temperature is reached, the light will turn “OFF” automatically. 4. According to your requirement, adjust the Steam Adjustable Control lever by turning right for more steam and left for less steam. 5.
  • Page 8 Steam Surge™ This function is specially designed to remove the toughest wrinkles and creases present in heavy fabrics. By pressing the Steam Surge™ Trigger, a sudden surge of steam is expelled out of the soleplate, which is extremely useful in straightening even the most stubborn creases. For optimal results, make sure Steam Surge™...

  • Page 9: Vertical Steam

    Vertical Steam By holding the iron in a vertical position, you can apply burst of steam to remove creases from curtains or any type of hanging fabrics. Anti-Drip An advanced system inside your iron prevents water leakage at even the lowest heat setting.

  • Page 10: Auto Shut-Off

    Auto Shut-Off 1. If the iron is left unused for 15 minutes, the light will blink signaling that the iron has automatically shut off. 2. If the iron is left on the fabric or accidentally tips over, the iron will automatically shut off within 30 seconds.

  • Page 11: Self-Cleaning

    Self- Cleaning If the water in your area is hard (contains excessive dissolved mineral), self -cleaning should be done every two weeks. 1. Your iron should be unplugged before self-cleaning. 2. Using the Steam selector, set the steam level to mark ‘’0’’. 3.
  • Page 12 Self-Clean Button 9. CAUTION! Avoid any contact with the iron during the cleaning process and firmly hold it above the sink to prevent any burns. 10. You can repeat the self-cleaning process if there are still some leftover impurities. 11. Dry up the soleplate by plugging the iron into the outlet. It will heat up the soleplate and evaporate water droplets.
  • Page 13 Heat Settings Dial Heat Adjustable Control Lever Caution Please note that this symbol on your fabric’s label means this article may not ironed.

  • Page 14: Cleaning And Maintenance

    Cleaning & Maintenance Before you begin cleaning, unplug the iron and allow it to cool down. 1. Clean the soleplate with any moist cloth and non-abrasive cleaner. 2. If fibers stick to the soleplate, use damp cloth immersed in vinegar to wipe off adherent fibers.

  • Page 15: Troubleshooting

    Troubleshooting Problem Possible Reasons Solution Cross check thermostat dial Cord may be unplugged or thermostat There is little heat or no and look for any error in power improperly set. heat. transmission. Adjust thermostat dial to your Thermostat dial is set at the OFF mark. Steam has stopped or desired setting.

  • Page 16: Warranty

    Please allow 2-4 weeks for return shipping. Smartek USA Inc. 12 Hinsdale Street, NY 11207 Eureka is a registered trademark used under license from Electrolux Home Products Inc. Designed in USA. Assembled in China. © 2015...
  • Page 17 MORE GREAT EUREKA PRODUCTS...
  • Page 18 HEAT RESISTANT HEAT RESISTANT PROTECTIVE 3-FINGER GLOVE IRONING GLOVE IRON CASE (MODEL: ER1033) (MODEL: ER1035) (MODEL: ER1050)
  • Page 19 EXTRA LARGE PROTECTIVE SILICONE IRON IRON & BOARD SUPER MAGNETIC IRONING MESH REST PAD HOLDER IRONING MAT (MODEL: ER1020) (MODEL: ER1040) (MODEL: ER1010) (MODEL: ER1025)
  • Page 20 THANK YOU FOR PURCHASING PRODUCTS FOR MORE INFO PLEASE VISIT: WWW.EUREKAGARMENTCARE.NET...
