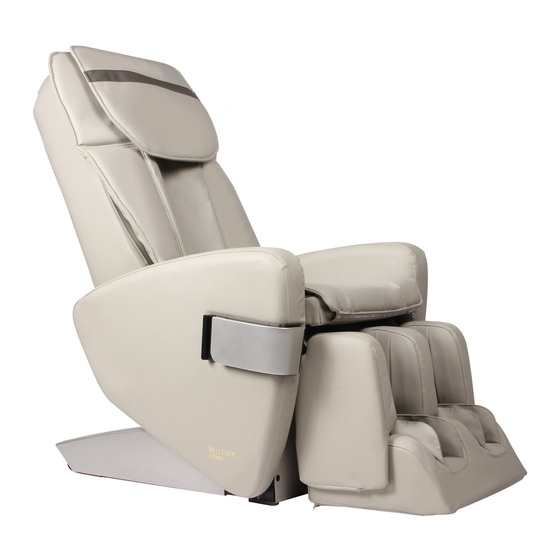

Bellevue
Massage Chair
LC5800
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC5800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynamic LC5800

  • Page 1 Bellevue Massage Chair LC5800 Owner’s Manual...
  • Page 2: Table Of Contents

    Thank you for choosing the Bellevue Edition Massage Chair to complement your lifestyle and comfort needs. Carefully and thoroughly read this manual before using this product to ensure proper operation. We recommend keeping this manual for regular review and future reference. This Owner’s Manual should be kept on hand for easy reference.
  • Page 3: Safety Precautions

    Safety Precautions Carefully and thoroughly read this manual before using this product. The Owner’s Manual should be kept in an easily accessible place for future reference. Please pay special attention to all “caution” and “warning” symbols and labels throughout this manual and on the massage chair.
  • Page 4 o If you become uncomfortable at any time when using the massage chair, stop using the chair immediately. o Only use the massage chair when it is placed on a level floor. o When operating the massage chair, make sure the switches are operational with reference to their intended functions.
  • Page 5 Do not use the massage chair when your hands or body is wet as it can result in electric shock and personal injury. Do not spill water or other liquid onto the massage chair. Do not place massage chair in a humid environment such as a bathroom. Placing the massage chair in a humid environment can result in electric shock and personal injury.
  • Page 6 o When the massage chair is in use, do not place your fingers into the gap between the housing and cushion of the massage chair as this can result in physical injury. o Do not use the massage chair to massage the head or stomach as this can result in nausea and/or physical injury.
  • Page 7 o Do not rip, tear, or cut the massage chair fabric cover. This can result in personal injury and malfunction of the massage chair. o Do not bend, twist, or stretch the power cord as this could result in electric shock and/or fire.
  • Page 8: Features And Functions

    o Do not use the massage chair near any open flames or flammable gas. This can result in a possible fire, personal injury, or malfunction and damage of the massage chair. o Do not use the massage chair near areas where aerosol spray products are used as this can damage the massage chair.
  • Page 9: Components And Descriptions

    Functions: As a therapeutic massage device for home use, the massage chair provides such benefits as relaxing the muscles, relieving the body from minor muscle aches and pains, and helpful in improving sleep. Components and Descriptions Massage Chair Body Chair Back Head Pad Massage Roller Back...
  • Page 10 1. Liquid Crystal Display (LCD): The LCD allows you to see the operating menu functions 2. ON/OFF: When the ON/OFF button is pressed, the massage chair will enter standby mode. The LCD screen will show HMI or the running status. When the ON/OFF button is pressed during operation, the massage chair will reset back to the initial settings.
  • Page 11: Before Use

    Before Use  This massage chair may be packaged with the backrest folded. If so and before use, please raise up the backrest.  Please carefully and thoroughly follow the instructions for assembling the massage chair. Before operation and if not already in the upright position, the massage chair back will need to be put to the upright position using the controller.
  • Page 12  Proceed in laying a rug or mat (optional) under the massage chair to prevent damages to your floor. This is optional and will reduce operational noises. Never place the massage chair on and electric blanket/rug.  Make sure the floor which the massage chair will be placed on can support the massage chair.
  • Page 13  How to Move – When moving the massage chair, make sure the main power switch is in the OFF position and the massage chair cord is unplugged from the wall receptacle. When moving the massage chair using When lifting and moving the massage chair, the caster wheels, straighten the massage lay the back of the massage chair flat into chair to the upright position and grab hold...
  • Page 14  How to Connect the Power Source 1. Connect the massage chair power 2. Next, connect the controller cord USB at cord to the lower back of the massage the lower back of the massage chair (on chair (on left wheel support rail) and left wheel support rail).
  • Page 15: Adjusting The Massage Chair

     Confirm the Material Before using the massage chair, make sure the massage chair leather and other massage chair coverings are not damaged. Put your hand into the gap between the chair back and the back cushion to check whether the fabric material is broken or damaged.
  • Page 16 o Once you have raised the footrest using the controller, do not sit in the massage chair. You must only sit in the massage chair once the footrest is lowered. o Before entering the massage chair, make sure the massage chair is in the upright position.
  • Page 17 You can adjust the angle of the massage chair by pressing the corresponding button on the controller.  Please note: The main power switch at the rear of the chair overrides the controller. If the ON/OFF button on the controller is OFF, you will still be able to adjust the angle of the massage chair.
  • Page 18: Starting The Massage Chair

    Starting The Massage Chair Massage Selections (AUTO) The preset programs make it easy to select a function that suits your preferences. This selection is recommended for those users seeking a less intense massage. Typically, this selection is for older users and users who desire a softer massage.
  • Page 19 Select Function A. Auto Program Press the AUTO button to enter into the automatic massage menu. Move the cursor to choose your desired function or present setting. Before the AUTO massage program begins, the massage chair will enter into the body scanning mode to detect your body shape.
  • Page 20 VII. Change, Stop, or End The Massage Operation There is a timer displayed on the LCD screen on the controller which shows your massage time. If you operate the massage chair for more than 30 minutes, the system will give you a warning. During the massage, you can change functions and the massage area with the assistance of the HMI.
  • Page 21 o If the strength of the massage chair is too great, reduce the strength according the guidance of the Owner Manual instructions. If you are not able to reduce the strength, stop using the massage chair and contact the dealer for assistance. Continued use can result in personal injury.
  • Page 22: Troubleshooting

    Troubleshooting If you encounter any issues with the operation of the massage chair, please refer to the troubleshooting guidelines below. If you are not able to resolve the issue, stop using the massage chair immediately and contact your dealer. Make sure to unplug the massage chair cord from the wall outlet.
  • Page 23 If the massage chair is experiencing any of the following, stop operating the massage chair and contact your dealer:  The massage chair does not start when the Main Power Switch is ON  The massage chair power cord is damaged ...
  • Page 24 When storing the massage chair and covering it with a chair cover (such a vinyl), keep in mind that the fabric color can change if the massage chair remains covered over a prolong period of time. Specifications Name & Model Number Bellevue / LC5800 Power Supply 120V 50Hz/60Hz Power Consumption 150W...
  • Page 25: Warranty

    51.2” 29.6” 51.2” 33.5” 53.6” 30.0” 53.2” 78.8” Warranty 3 Year Limited Warranty The massage chair is covered by a 3 Year Limited Warranty. During the first 3 years of ownership, the massage chair is covered with in-home service including parts and labor. If the product is defective when received or becomes defective during the manufacturer’s warranty period, it will be repaired/replaced in accordance with the manufacturer’s original factory warranty.
  • Page 26 This Plan is effective provided adequate proof of purchase is maintained, the product is properly registered (as directed below) and the specific covered product is properly maintained. McCusker and Company, Inc., the program administrator, must be notified within thirty (30) days of purported failure.
  • Page 27: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
