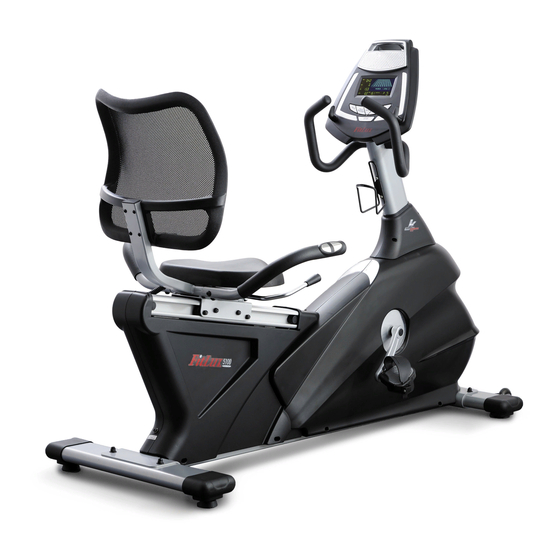

- Page 1 FitLux 5100 MAGNETIC BIKE Owner's Manual Made in Taiwan...
-
Page 2: Table Of Contents
INDEX IMPORTANT NOTICE . . . . . . . . . . . . . . . . . . . . . P . 1 ASSEMBLY PARTS LIST . -
Page 3: Important Notice
IMPORTANT NOTICE: THIS EQUIPMENT IS ONLY FOR HOME USE, NOT FOR COMMERCIAL PURPOSE. USER'S WEIGHT SHOULD BE LIMITED ONLY TO 150 KGS. 1 . Before proceeding into any type of exercise program, it is recommended that one should first consult a physician . 2 . -
Page 4: Assembly Parts List
Assembly No. Llist ASSEMBLY PARTS LIST 1 . MAIN FRAME . . . . . . . . . . . . 1 A . BOLT & WASHER & NUT . . .4+4+4 2 . -
Page 5: Assembly Instruction
Assembly Instruction MAIN FRAME MAIN FRAME BOTTOM FRONT FRAME STABILIZER Step 1. Step 2. Fix Front Stabilizer (4) on the Main Frame Fix Rear Stabilizer (3) on the Main Frame (1) and secure by Bolt, Washer & Nut (A) (1) and secure by Bolt, Washer & Nut (A) HANDLEBAR HANDLEBAR POST... - Page 6 Assembly Instruction LEVER-ARM LEVER-ARM Step 5. Step 6. Place Sleeve (7) into the axle of the Seat Place Seat (12) on the Seat Slider and fix Slider on the rail and fix by Screw (7) . by Screw (c) . Then place Lever-Arm into Sleeve (7) then secure by Screw (7) .
- Page 7 Assembly Instruction Step 9. Step 10. Attach Handlebar (2) to Seat Slider and fix Remove screw from Computer (7), well by Screw & Washer (D) . connect Computer Wire and Pulse Cable from Computer (7) and Handlebar Post (6) . Step 11.
- Page 8 Assembly Instruction Step 13. Step 14. Screw Pedal (8) into crank . Place Decoration Cover (9) on the Main Frame (1) and fix by Screw (9) . Note: • Please check for the letter L for the left pedal before placing on crank . •...
-
Page 9: Computer Instruction
Computer Instruction The monitor is designed for programmable magnetic bikes and introduced with the following categories: • Key Functions • About Displays • Operating Ranges • Things You Should Know Before Exercising • Operation Instructions • Key Functions There are total 6 keys including START/STOP, ENTER, MODE, UP, DOWN, and RECOVERY . - Page 10 Computer Instruction C . PROGRAM No .: Indicates the programs selected from PROGRAM 1 to PROGRAM 16 D . LEVEL No .: Indicates the level of loading selected from LEVEL 1 to LEVEL 16 . E . GENDER: Indicates the gender (Male or Female) selected . F .
- Page 11 Computer Instruction K . HEART RATE/BODY TYPE Display: Indicates only one value of HEART RATE or BODY TYPE displayed depending on the programs . L . LOADING Profiles: There are 10 columns of loading bars, and 8 bars in each column . Each column represents 3 minutes workout (without the change of TIME value), and each bar represents 2 levels of loading .
- Page 12 Computer Instruction • Things You Should Know Before Exercising A . The values calculated or measured by the computer are for exercise purpose only, not for medical purpose . B . The Variables May Need To Change In The Programs: Programs Variables P1 ~ P7...
- Page 13 Computer Instruction Program 5 (Ramp) Program 6 (Mountain) Program 7 (Random) Program 8 (Body Fat) Program 9 (Target H .R .) Program 10 (60% H .R .C .) Program 11 (75% H .R .C .) Program 12 (85% H .R .C .) Program 13 (User Setting) Program 14 (User Setting) Program 15 (User Setting)
- Page 14 Computer Instruction E . Body Types: There are 9 body types divided according to the FAT% calculated . Type 1 is from 5% to 9% . Type 2 is from 10% to 14% . Type 3 is from 15% to 19% . Type 4 is from 20% to 24% .
- Page 15 Computer Instruction Preset Programs: PROGRAM 2 to PROGRAM 7 are the preset programs . Press “ENTER” key to select TIME, DISTANCE, CAL and AGE . Then, press▲ or ▼ key to adjust the values . Users may exercise with different level of loading in different intervals as the profiles show .
- Page 16 Computer Instruction User Setting Programs: Program 13 to Program 16 are the user-setting programs . Users are free to edit the values in the order of TIME, DISTANCE, AGE, CAL and the level of loading in 10 intervals . The values and profiles will be stored in the memory after setup . After pressing “START/STOP”...
- Page 17 Computer Instruction LCD/LED W/ PROGRAM MONITOR TROUBLE SHOOTING GUIDE Symptom Possible Cause Solution You have the wrong Check that the Batteries or the Adaptor Specifications Adaptor or the wrong coincide with Intruction Manual Specifications . Batteries? The Mains Power switch is Check that the Mains Power is switched on and is The LCD turmed off?
- Page 18 Computer Instruction Symptom Possible Cause Solution The Computer is NOT Check that the Ear Clip Plug is FIRMLY inserted into the receiving a Pulse Computer . Signal . 1) The Ear Clip Pulse Sensors will NOT operate correctly if yours truly skin is extremely dry, dab a little water onto No Ear The Computer is your earlobe and try again .
- Page 19 Computer Instruction LCD W/PROGRAM MONITOR TROUBLE SHOOTING GUIDE Symptom Possible Cause Solution 1) Review the Assembly Instructions and check that all the Computer Plugs and Sockets are FIRMLY and correctly connected . 2) Review the Bike's Magnetic Resistance System to ensure that it is set correctly and the be at it can freely be adjusted .
-
Page 20: Exploded Drawing
Exploded Drawing... -
Page 21: Parts List
Parts List NO. DESCRIPTION Q'ty. NO. DESCRIPTION Q'ty. Main Frame Screw M8x16mm Flywheel Ø260 Mesh Back Tension Cable Screw M6x30mm Spring End Cap 25x50 Support Bracket Aluminum Slide Track Nut M10 Stopper Nut M10x3T Sensor Bearing #6000 Screw M3x8mm Plastic Wheel Magnet C-Clip #10 Belt J6... - Page 24 Factory: JIH KAO ENTERPRISE CO., LTD...
