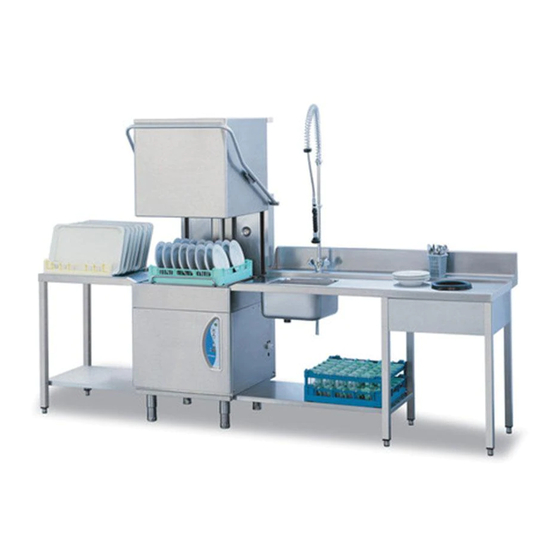

Commercial electric dishwashing machines
Hide thumbs Also See for L21-ek:

Advertisement

Available languages

Available languages

Quick Links

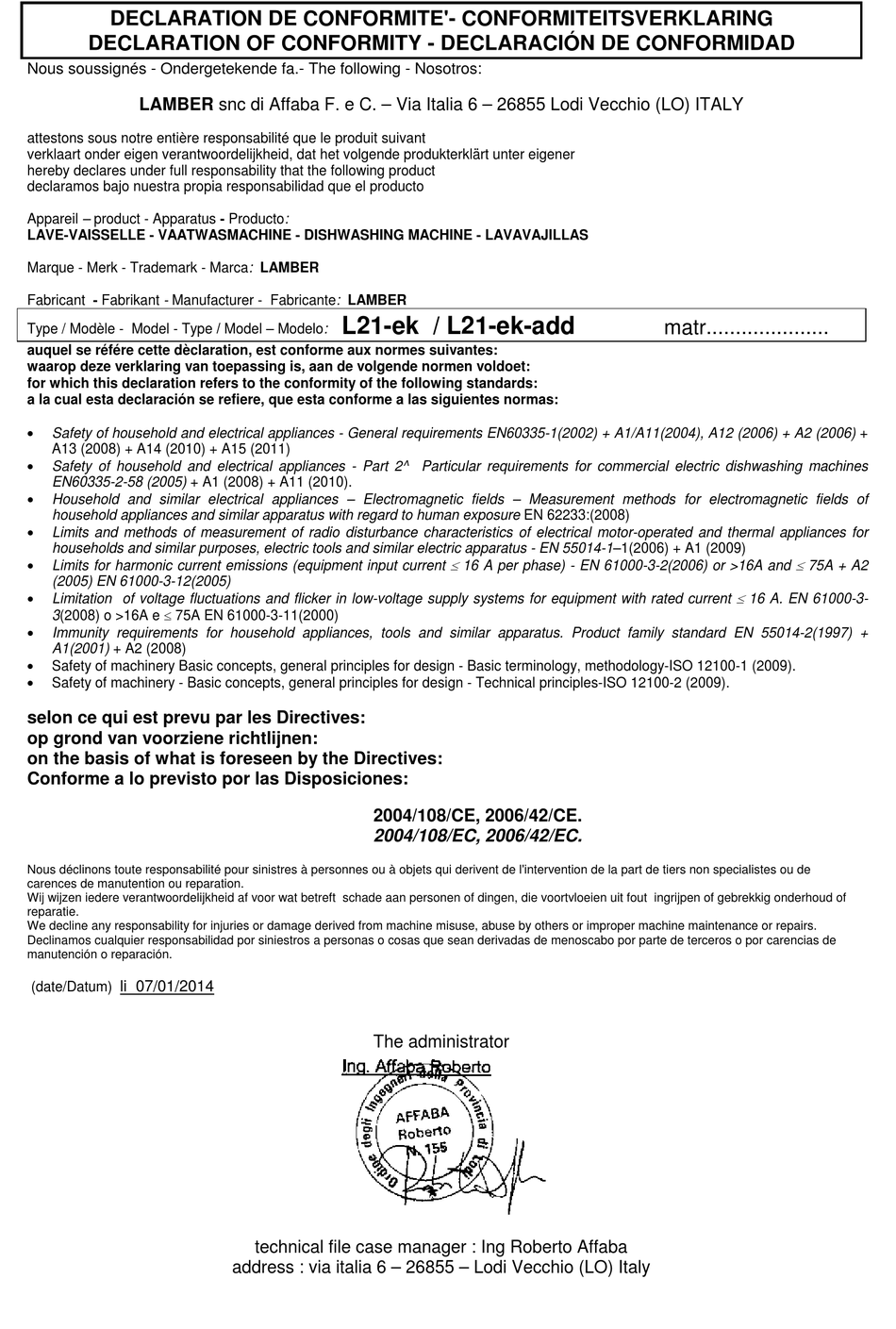

DECLARATION DE CONFORMITE'- CONFORMITEITSVERKLARING
DECLARATION OF CONFORMITY - DECLARACIÓN DE CONFORMIDAD
Nous soussignés - Ondergetekende fa.- The following - Nosotros:
LAMBER snc di Affaba F. e C. – Via Italia 6 – 26855 Lodi Vecchio (LO) ITALY
attestons sous notre entière responsabilité que le produit suivant
verklaart onder eigen verantwoordelijkheid, dat het volgende produkterklärt unter eigener
hereby declares under full responsability that the following product
declaramos bajo nuestra propia responsabilidad que el producto
Appareil – product - Apparatus - Producto:
LAVE-VAISSELLE - VAATWASMACHINE - DISHWASHING MACHINE - LAVAVAJILLAS
Marque - Merk - Trademark - Marca: LAMBER
Fabricant - Fabrikant - Manufacturer - Fabricante: LAMBER
Type / Modèle - Model - Type / Model – Modelo:
auquel se référe cette dèclaration, est conforme aux normes suivantes:
waarop deze verklaring van toepassing is, aan de volgende normen voldoet:
for which this declaration refers to the conformity of the following standards:
a la cual esta declaración se refiere, que esta conforme a las siguientes normas:
Safety of household and electrical appliances - General requirements EN60335-1(2002) + A1/A11(2004), A12 (2006) + A2 (2006) +
A13 (2008) + A14 (2010) + A15 (2011)
Safety of household and electrical appliances - Part 2^ Particular requirements for commercial electric dishwashing machines
EN60335-2-58 (2005) + A1 (2008) + A11 (2010).
Household and similar electrical appliances – Electromagnetic fields – Measurement methods for electromagnetic fields of
household appliances and similar apparatus with regard to human exposure EN 62233:(2008)
Limits and methods of measurement of radio disturbance characteristics of electrical motor-operated and thermal appliances for
households and similar purposes, electric tools and similar electric apparatus - EN 55014-1–1(2006) + A1 (2009)
Limits for harmonic current emissions (equipment input current
(2005) EN 61000-3-12(2005)
Limitation of voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current
3(2008) o >16A e  75A EN 61000-3-11(2000)
Immunity requirements for household appliances, tools and similar apparatus. Product family standard EN 55014-2(1997) +
A1(2001) + A2 (2008)
Safety of machinery Basic concepts, general principles for design - Basic terminology, methodology-ISO 12100-1 (2009).
Safety of machinery - Basic concepts, general principles for design - Technical principles-ISO 12100-2 (2009).
selon ce qui est prevu par les Directives:
op grond van voorziene richtlijnen:
on the basis of what is foreseen by the Directives:
Conforme a lo previsto por las Disposiciones:
Nous déclinons toute responsabilité pour sinistres à personnes ou à objets qui derivent de l'intervention de la part de tiers non specialistes ou de
carences de manutention ou reparation.
Wij wijzen iedere verantwoordelijkheid af voor wat betreft schade aan personen of dingen, die voortvloeien uit fout ingrijpen of gebrekkig onderhoud of
reparatie.
We decline any responsability for injuries or damage derived from machine misuse, abuse by others or improper machine maintenance or repairs.
Declinamos cualquier responsabilidad por siniestros a personas o cosas que sean derivadas de menoscabo por parte de terceros o por carencias de
manutención o reparación.
li 07/01/2014
(date/Datum)
L21-ek / L21-ek-add
2004/108/CE, 2006/42/CE.
2004/108/EC, 2006/42/EC.
The administrator
technical file case manager : Ing Roberto Affaba
address : via italia 6 – 26855 – Lodi Vecchio (LO) Italy
16 A per phase) - EN 61000-3-2(2006) or >16A and
matr.....................
75A + A2
16 A. EN 61000-3-
