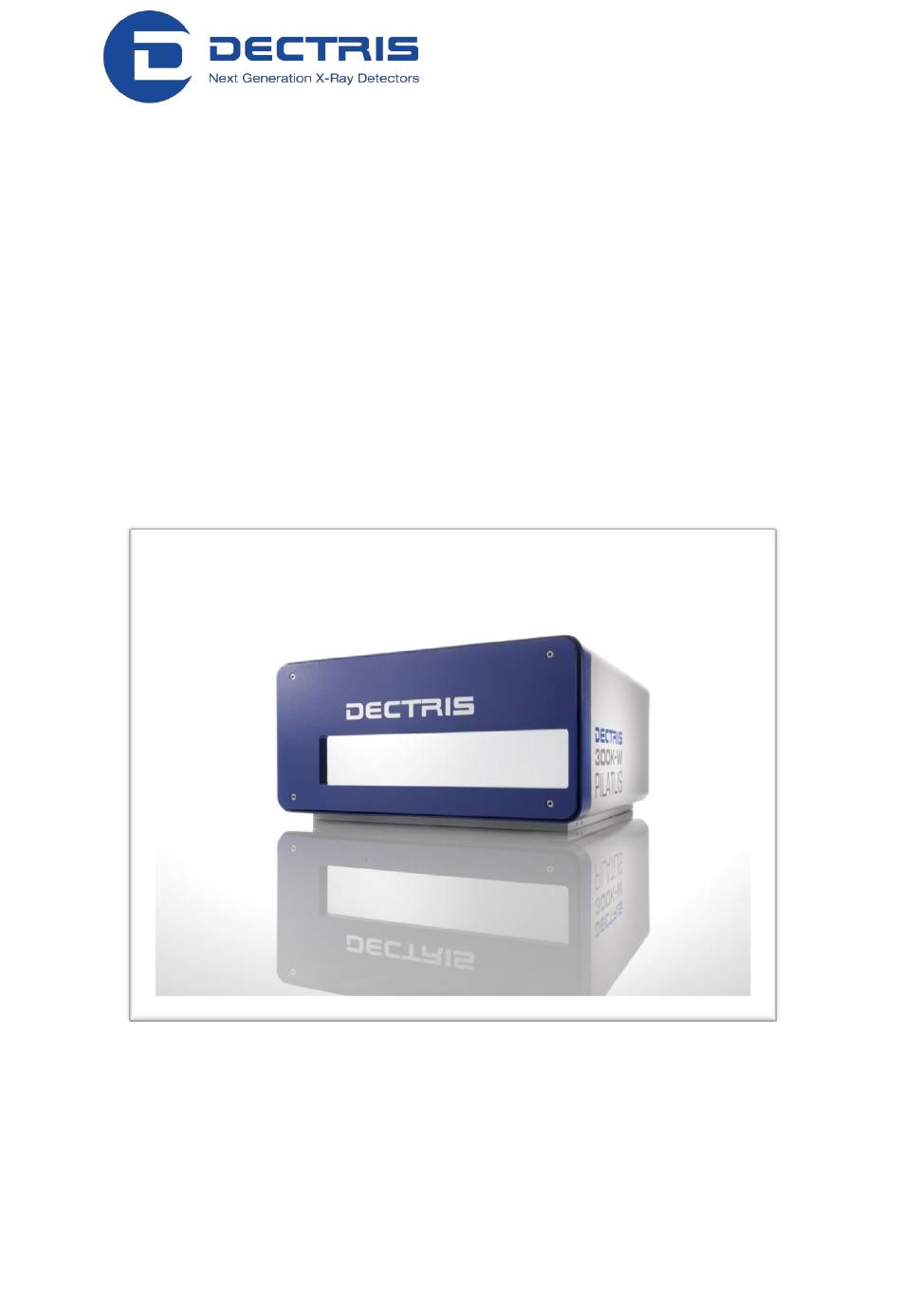

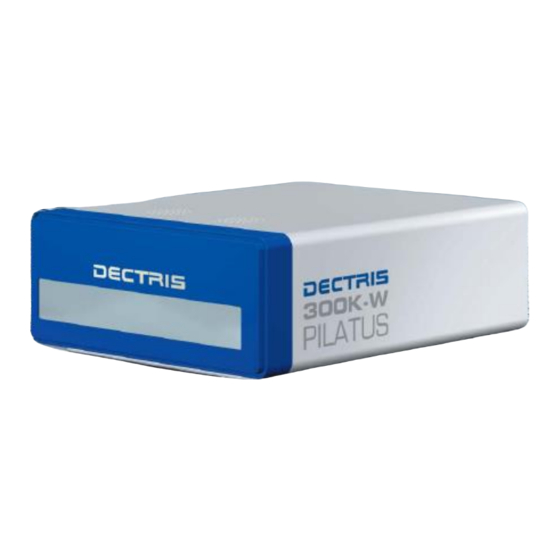

- Page 1 Technical Specification Operating Procedure PILATUS 300K-W Detector System Version 1.7...
-
Page 2: Table Of Contents
........................4 DDRESS AND UPPORT ....................... 5 XPLANATION OF YMBOLS ........................5 XPLANATION OF ERMS PILATUS 300K-W ......................5 SE OF THE TECHNICAL SPECIFICATIONS ...................... 6 ............................7 ATINGS ........................8 MBIENT ONDITIONS DIMENSIONS AND CONNECTORS ....................9 300K-W D ...................... -
Page 3: Document History
1 Document History Actual document Version Date status prepared checked released 22.07.2011 released PS, BS SC, DB 1.1 Changes Version Date Changes released 27.04.2009 First release 29.01.2010 Connection cables and temperature sensors 1.4.1 15.02.2010 Power supply 1.4.2 18.02.2010 Signal levels 09.04.2010 Dimensions and grounding 1.5.1... -
Page 4: How To Use This Technical Specification
2 How to use this Technical Specification Before you start to operate the PILATUS 300K-W detector system please read this technical specification and the user manual thoroughly. The technical specification and the user manual together form the user documentation. 2.1 Address and Support DECTRIS Ltd. -
Page 5: Explanation Of Symbols
Detector Control Board Digital to Analog Converter 2.4 Use of the PILATUS 300K-W The PILATUS 300K-W detector system has been designed for the detection of X-rays from synchrotrons or laboratory sources. It is intended for indoor use only. For other applications, please contact DECTRIS for additional information. -
Page 6: Technical Specifications
3 Technical Specifications Number of modules 3 x 1 = 3 Sensor Reverse-biased silicon diode array Sensor thickness 320 µm 450 µm 3 keV: 48% 3 keV: 48% 8 keV: 95% 8 keV: 96% 15 keV: 51% 15 keV: 64% Pixel size 172 x 172 µm Module size... -
Page 7: Ratings
3.1 Ratings Device Definition Detector +12 V DC, 4 A, 48 Watt Power Input Power Supply 90-260 VAC, 47/63 Hz Detector 2.0 V - 5.0 V High level External Trigger Input 0.0 V - 0.8 V Low level 50 Ohm Impedance Trigger Signal …... -
Page 8: Ambient Conditions
3.2 Ambient Conditions The PILATUS 300K-W detector is designed only for indoor use. The following ambient conditions must be fulfilled: Condition Range Operating temperature: +20° to +35°C Operating humidity: < 80% at 20°C, non-condensing Storage temperature +15° to +40°C Storage humidity <... -
Page 9: Dimensions And Connectors
4 Dimensions and Connectors Figure 1. Drawing of the PILATUS 300K-W detector (printed separately in the user documentation folder) Technical_Specification_PILATUS_300K-W_V1_7 9/28... -
Page 10: Pilatus 300K-W Detector
When mounting the cover, make sure it is first hooked on the mounting edge centered and then slowly lowered. Do not touch the Mylar ® (PET) foil. The cover may not protect the detector from direct synchrotron beam. Figure 2. PILATUS 300K-W detector with cover in place (front view) Technical_Specification_PILATUS_300K-W_V1_7 10/28... -
Page 11: Backside Of The Detector
Figure 3. PILATUS 300K-W detector with cover removed (front view) 4.1.2 Backside of the Detector Figure 4. PILATUS 300K-W detector viewed from the back Technical_Specification_PILATUS_300K-W_V1_7 11/28... -
Page 12: The Status Leds
4.1.3 The Status LEDs Description Power If green, all supply voltages are ok. If red, module power is off. This can be caused by over/under temperature, too much humidity or too high module current (One or more modules may come into oscillations, see section 11). Temp Normally green. - Page 13 Connector Description Power +12 V Main voltage 12 VDC from external power supply. EXT IN External Trigger Input Use a Lemo ® Type 00 (NIM-CAMAC) cable. For ratings see 3.1. EN OUT TTL output signal; high when counting is enabled. Use a Lemo ®...
-
Page 14: Power Supply
4.2 Power Supply The power supply is a compact switching power unit with the dimensions 189 mm x 89.5 mm x 45.5 mm (length, width, height) and a weight of 800 g. Figure 5. Power supply +12 V DC 130 W Connector Description Main Inputs... -
Page 15: Computer
4.3 Computer The computer is a high power server with one (fast option: three) proprietary data acquisition card(s) to communicate with the detector. Labels for the connections are printed on the server housing. The PC should be kept behind a firewall and should not have outside internet access. -
Page 16: Installing The Detector System
5 Installing the Detector System 5.1 Mounting The detector can be mounted in two ways: 5.1.1 Mounting from Above Use the detachable mounting pieces, which are stored on the back of the detector. These mounting pieces have to be mounted on the base plate of the detector. -
Page 17: Mounting From Below
5.1.2 Mounting from Below From below with four M6 bolts. Mounting points when mounting from the bottom Figure 8. Mounting from below, bottom view The four M6 bolts should not intrude into the detector more than 16 Make sure the detector is properly mounted. Make sure the detector has enough space for proper ventilation (minimum wall distance: 170 mm). -
Page 18: Grounding Of The Detector System
5.2 Grounding of the Detector System The main plug of the computer and the power supply of the detector have to be connected to a grounded power outlet. Although the detector might be grounded via the mounting bolts, the detector can be grounded additionally via the functional ground connector at the back (M6 screw-in tap hole) to establish a defined grounding. -
Page 19: Connection To Nitrogen Or Dry Air
5.3 Connection to Nitrogen or Dry Air The PILATUS detector has to be connected to a nitrogen or dry air flow to avoid humidity and condensation when it is outside the storage box. For storage see section 9. Figure 10. Nitrogen connector on the back of the detector Humidity can damage the detector. -
Page 20: Connecting The Cables
To operate the detector, the data cables and the ground should be connected. For specification of cables and pipes see section 4.1.4. The PILATUS 300K-W detector is equipped with one (fast option: three) data cable(s). Connect RX to RX and TX to TX on the GigaSTaR Card in the PC. Labels for the connections are printed on the server housing. -
Page 21: Temperature And Humidity Control
6 Temperature and Humidity Control The PILATUS 300K-W detector head has 3 combined temperature and humidity sensors. The temperature and humidity control shuts down the power of the detector modules when the humidity or the temperature of the different sensors... - Page 22 Figure 12. Correct start-up message Check the humidity with the following command "thread" in Camserver. This reads and displays the actual temperature and humidity of all sensors as shown above. Technical_Specification_PILATUS_300K-W_V1_7 22/28...
-
Page 23: Getting Started
7 Getting Started Before operating the detector, make sure you have read the previous chapters in the technical specification and the user manual. Check these items before turning the detector system on: Mount the detector properly Connect the detector to power ... -
Page 24: First Commands
7.2 First Commands See the detailed description of all commands in the User Manual. Type the following commands in TVX: rbd; self test of the detector (digital part of the pixel) calibdet; self test of the detector (analog part of the pixel) ... -
Page 25: Turning Off The Detector
8 Turning off the Detector Turn off the power switch of the detector. Do not remove nitrogen/dry air connection and leave it at the recommended flow rate according to section 5.3. 9 Storing the Detector Even if the detector is not in operation, it is recommended to maintain the Nitrogen or dry air flow. -
Page 26: Cleaning And Maintenance
10 Cleaning and Maintenance The housing can be cleaned with a soft tissue. The Mylar ® foil should not be touched or cleaned. The PILATUS 300K-W detector system is maintenance free. Technical_Specification_PILATUS_300K-W_V1_7 26/28... -
Page 27: Faults
11 Faults Problems Causes Solution PC doesn’t PC is not properly Depending on the type of the start properly powered up PC, there are switches on the PCI card is not back and on the front of the PC which have to be in the correct properly mounted position. -
Page 28: Certification Tests
12 Certification Tests The product is in conformity with the listed standards. Technical_Specification_PILATUS_300K-W_V1_7 28/28...
