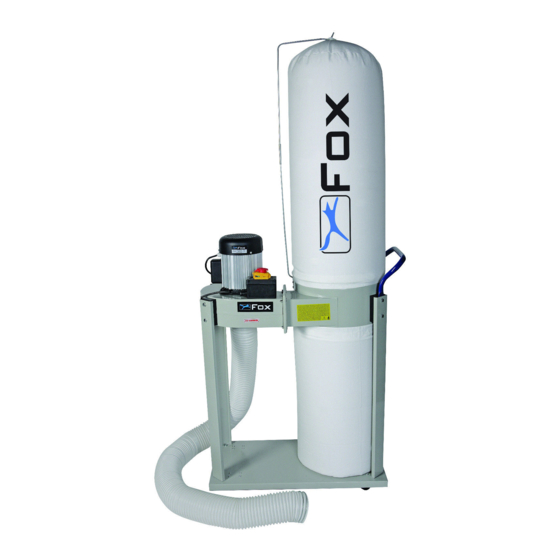

1hp dust extractor
Hide thumbs Also See for F50-841:

Advertisement

Quick Links

1HP DUST EXTRACTOR
FOX Model F50-841
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F50-841 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fox F50-841

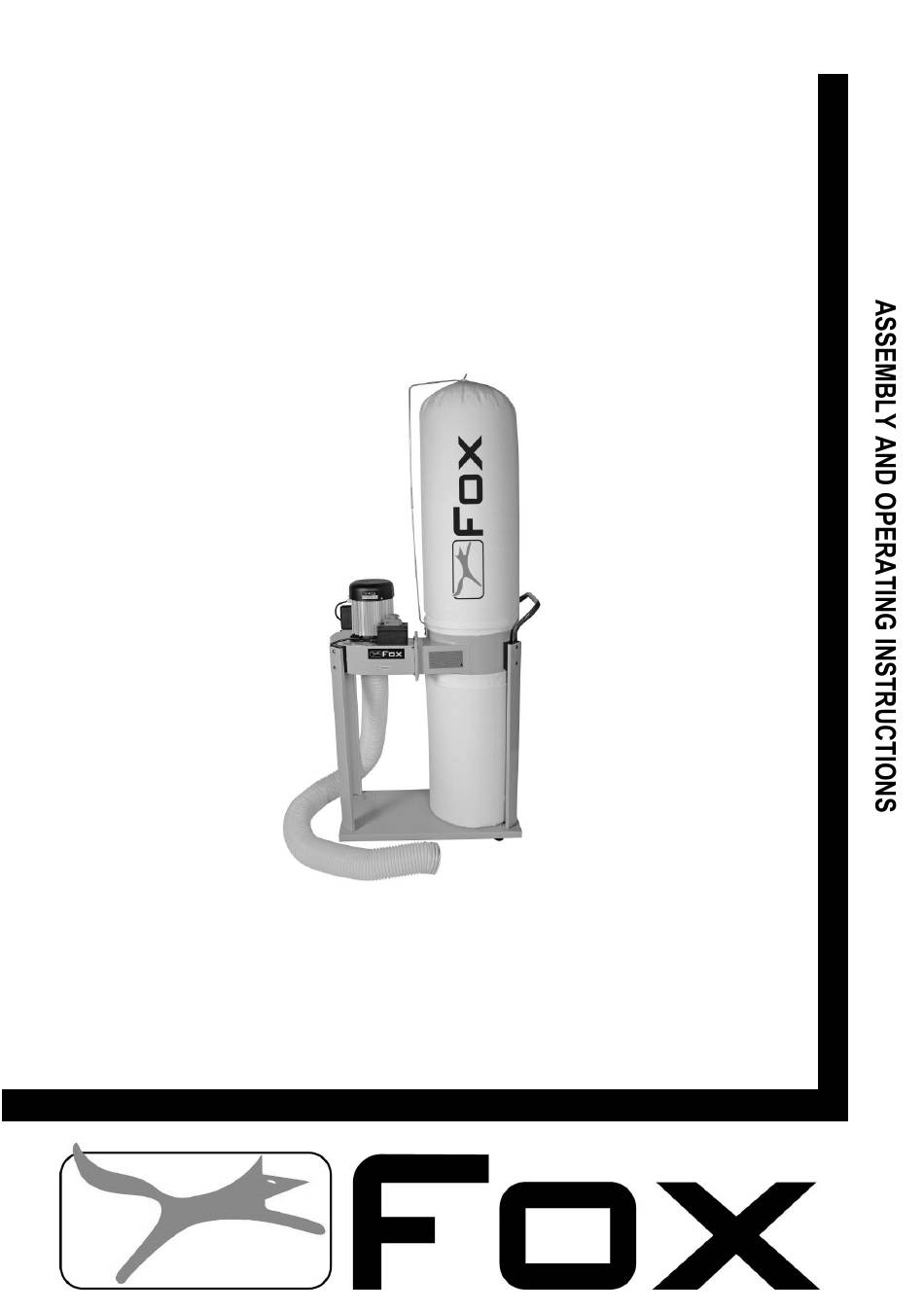

  • Page 1 1HP DUST EXTRACTOR FOX Model F50-841...
  • Page 2: Table Of Contents

    1hp Dust Extractor FOX MODEL F50-841 TABLE OF CONTENTS  Safety instructions…………………………………………………………………………………………… Page 3  Specific safety instructions for dust collectors…………………………………………………………….Page 5  Specifications………………………………………………………………………………………………… Page 6  Electrical connections………………………………………………………………………………………. Page 7  Earthing instructions………………………………………………………………………………………… Page 7  Environmental protection…………………………………………………………………………………… Page 8 ...
  • Page 3: Safety Instructions

    ATTENTION : - Read the instructions for use carefully before using the machine - This device meets current safety standards for electrical machines. - Incorrect use may result in injury. Anyone not familiar with the instructions for use should not use the machine.
  • Page 4 8. Wear appropriate clothing. Avoid loose clothing, and remove jewellery which could become caught in moving parts. Non-slip shoes are particularly recommended when working outside. Keep long hair tied up. 9. Always wear safety glasses. Also wear a mask if operating the machine creates dust. 10.
  • Page 5: Specific Safety Instructions For Dust Collectors

    SPECIFIC SAFETY INSTRUCTIONS FOR DUST COLLECTORS 1. The filtration housing contains a high speed fan blade that can amputate fingers, grab loose clothing and neckties, and propel dust at high velocities. DO NOT OPERATE WITHOUT ALL PARTS IN PLACE. 2. Do not attempt to clean, remove the dust bags, or service the unit when the power is on. Turn the unit off and disconnect the cord from the power source.
  • Page 6: Specifications

    20. Do not put any object into the ventilation openings. Do not vacuum with any ventilation opening blocked; keep free of dust, lint, hair or anything that may reduce air flow. 21. Keep hair, loose clothing, fingers, and all body parts away from openings and moving parts. 22.
  • Page 7: Electrical Connections

    ELECTRICAL CONNECTIONS EXTENSION CORDS Before using an extension cord, ensure the insulation is not cut or worn. Immediately repair or replace a damaged or frayed cord. ATTENTION : Extension cords must be removed from the work area or located so that they will not get caught in parts, tools or other objects while using the tool.
  • Page 8: Environmental Protection

    ENVIRONMENTAL PROTECTION The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of-life. This applies to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste.
  • Page 9: Unpacking The Dust Collector

    UNPACKING THE DUST COLLECTOR Unpack your dust collector carefully, taking care with the loose parts. Note : if any parts are damaged or missing, do not connect the machine to the power and do not switch it on until the missing/damaged parts are replaced.
  • Page 10: Assembling The Dust Collector

    ASSEMBLING THE DUST COLLECTOR Stand the base (A) and adjust the castor holes to align with the base holes, then tighten the nuts and screws by means of screwdriver and wrench. Fig. 1. Align the filtration housing inlet (C) with the electric power collector outlet (B), insert the packing (E) between them then tighten them together with six bolts.
  • Page 11 Put the base down and place the assembled collector and filtration housing on it, align the holes on the bottom end of the four support rods with those on the base, then insert the bolts and tighten. Fig. 5. Put the hook of the vertical stand (L) upwards, align the two holes with those on the filtration housing, insert the screw and tighten.
  • Page 12: Parts Diagram

    PARTS DIAGRAM PARTS LIST...
  • Page 14: Dart Tool Group Guarantee

    Power Tools and accessories which, upon examination, prove to be defective in workmanship or material. The warranty period for the FOX branded products is one year for parts and labour and three years for parts only. The guarantee does not include repair, labour or parts requiring replacement because of misuse, abuse, or normal wear and tear.
  • Page 15: Declaration Of Conformity

    KIRKCALDY, UK, KY1 3PD Tel. +44 (0) 1592 652946 Fax: +44 (0) 1592 654854 Declares that the: 1HP DUST COLLECTOR (F50-841) is in compliance with the regulations included in the Directives: CEE 2006/42-2004/108-2006/95 Person authorized to create the technical file: Robert Paterson 06.05.2011...
