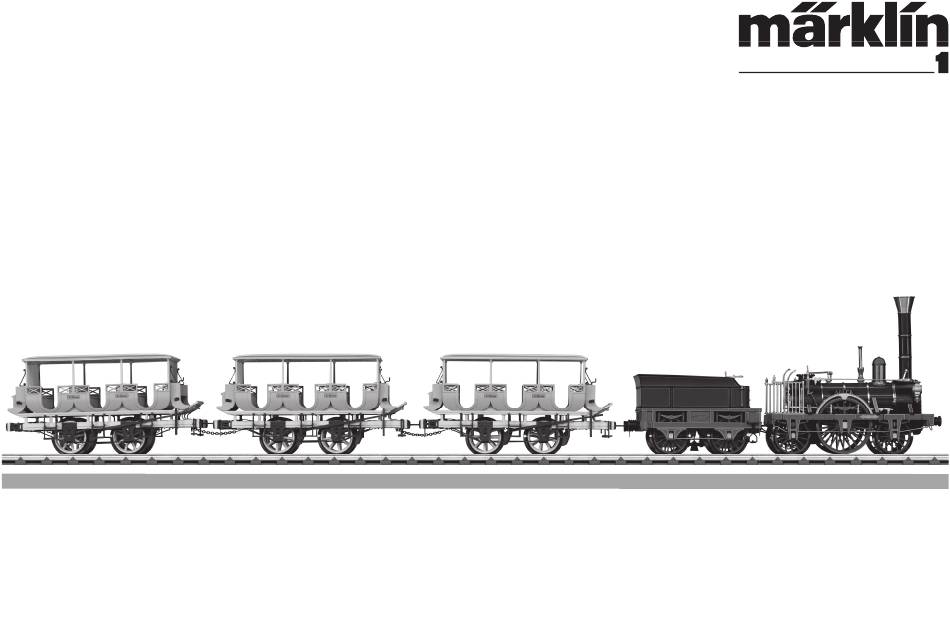

  • Page 1 Modell des Adlers 55175...
  • Page 2: Table Of Contents

    Inhaltsverzeichnis: Sommaire : Seite Page 1. Hinweise zur Inbetriebnahme 1. Indications relatives à la mise en service 2. Sicherheitshinweise 2. Remarques importantes sur la sécurité 3. Allgemeine Hinweise 3. Informations générales 4. Funktionen 4. Fonctionnement 5. Parameter / Register 5. Paramètre / Registre 6.
  • Page 6: Sicherheitshinweise

    2. Sicherheitshinweise 4. Funktionen • Die Lok darf nur mit einem dafür bestimmten Betriebssystem (Gleichstrom Diese Lokomotive mit eingebauter Mehrzug-Elektronik bietet: [DC] = max 18V±, Märklin Wechselstrom, Märklin Digital, Märklin Systems • Die Betriebsart (Mfx, Märklin-Motorola oder DCC) wird automatisch erkannt. oder DCC) eingesetzt werden.
  • Page 7: Parameter / Register

    Bedeutung Wert für 6021 Wert DCC 1 - 127 (3) Adresse 01 - 80 (55) CV 29/Bit5 =0 PoM Minimalgeschwindigkeit — 0 - 255 (25) PoM Anfahrverzögerung 01 - 63 0 - 255 (15) PoM Bremsverzögerung 01 - 63 0 - 255 (15) PoM Maximalgeschwindigkeit 01 - 63 0 - 255 (255)
  • Page 8: Safety Notes

    2. Safety Notes 4. Functions • This locomotive is to be used only with an operating system designed for it This locomotive has a built-in multi-train electronic circuit and offers these (DC power = 18V±, Märklin AC, Märklin Digital, Märklin Systems or DCC). features: •...
  • Page 9: Parameter / Register

    Discription 6021 Value DCC Value 1 - 127 (3) Adresse 01 - 80 (55) CV 29/Bit5 =0 PoM Minimum Speed — 0 - 255 (25) PoM Acceleration delay 01 - 63 0 - 255 (15) PoM Braking delay 01 - 63 0 - 255 (15) PoM Maximum speed 01 - 63...
  • Page 10: Remarques Importantes Sur La Sécurité

    2. Remarques importantes sur la sécurité 4. Fonctionnement • La locomotive ne peut être mise en service qu’avec un système d’exploitation Cette locomotive possède un équipement électronique pour conduite multi- adéquat (DC = 18V ±, Märklin AC, Märklin Digital, Märklin Systems ou DCC). train : •...
  • Page 11: Paramètre / Registre

    Affectation 6021 Valeur DCC Valeur 1 - 127 (3) Adresse 01 - 80 (55) CV 29/Bit5 =0 PoM Vitesse min — 0 - 255 (25) PoM Temporisation d‘accélération 01 - 63 0 - 255 (15) PoM Temporisation de freinage 01 - 63 0 - 255 (15) PoM Vitesse maximale 01 - 63...
  • Page 12: Veiligheidsvoorschriften

    2. Veiligheidsvoorschriften 4. Werking • De loc mag alleen met een daarvoor bestemd bedrijfssysteem (DC =18V ±, Deze loc met ingebouwde digitaalelektronica biedt u: Märklin AC, Märklin digitaal, Märklin Systems of DCC) gebruikt worden. • Het bedrijfssysteem (mfx, Märklin-Motorola of DCC) wordt automatisch •...
  • Page 13: Parameter / Register

    Betekenis Waarde 6021 Waarde DCC 1 - 127 (3) Adres 01 - 80 (55) CV 29/Bit5 =0 PoM minimale snelheid — 0 - 255 (25) PoM Optrekvertraging 01 - 63 0 - 255 (15) PoM Afremvertraging 01 - 63 0 - 255 (15) PoM Maximumsnelheid 01 - 63 0 - 255 (255)
  • Page 14: Schaltbare Funktionen

    6. Schakelbare functies f0 f8 Functie systems STOP mobile station Digital/Systems/DCC Spitzenlicht Funktion f0 Funktion f0 Headlight Function f0 Function f0 function/ off Fanal Fonction f0 Fonction f0 Frontverlichting Functie f0 Functie f0 Funktion f4 Funktion f4 Funktion f4 Function f4 Function f4 Function f4 Fonction f4...
  • Page 15: Betriebshinweise

    Anschluss der Gleisanlage Connections between the track Connexion des voies ferrées Aansluiting van de sporen layout and the transformer Um Spannungsverluste auf der Pour éviter des pertes de potentiel Om spanningsverlies op de Anlage zu vermeiden, ist immer auf Rail joiners must fit well on the rails sur l’installation, il faut veiller à...
  • Page 18: Ersatzteile

    Treibradsatz 149 619 Laufradsatz 149 632 Decoder 149 658 Laternen Set 166 674 Schleiferset 166 675 Kupplungsset 166 676 Radsatz (inkl Motor) 497 050...
