Curtis RT072 Instruction Manual

Portable 5” black & white television with am/fm radio
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
1. TV/Radio channels indicator
2. Dial Pointer
3. Tuning Control
4. Picture Tube
5. Volume Control/Power Switch
6. Function Selector TV/Radio
7. Band Selector
TV : VL/VH/UHF Radio : AM/FM

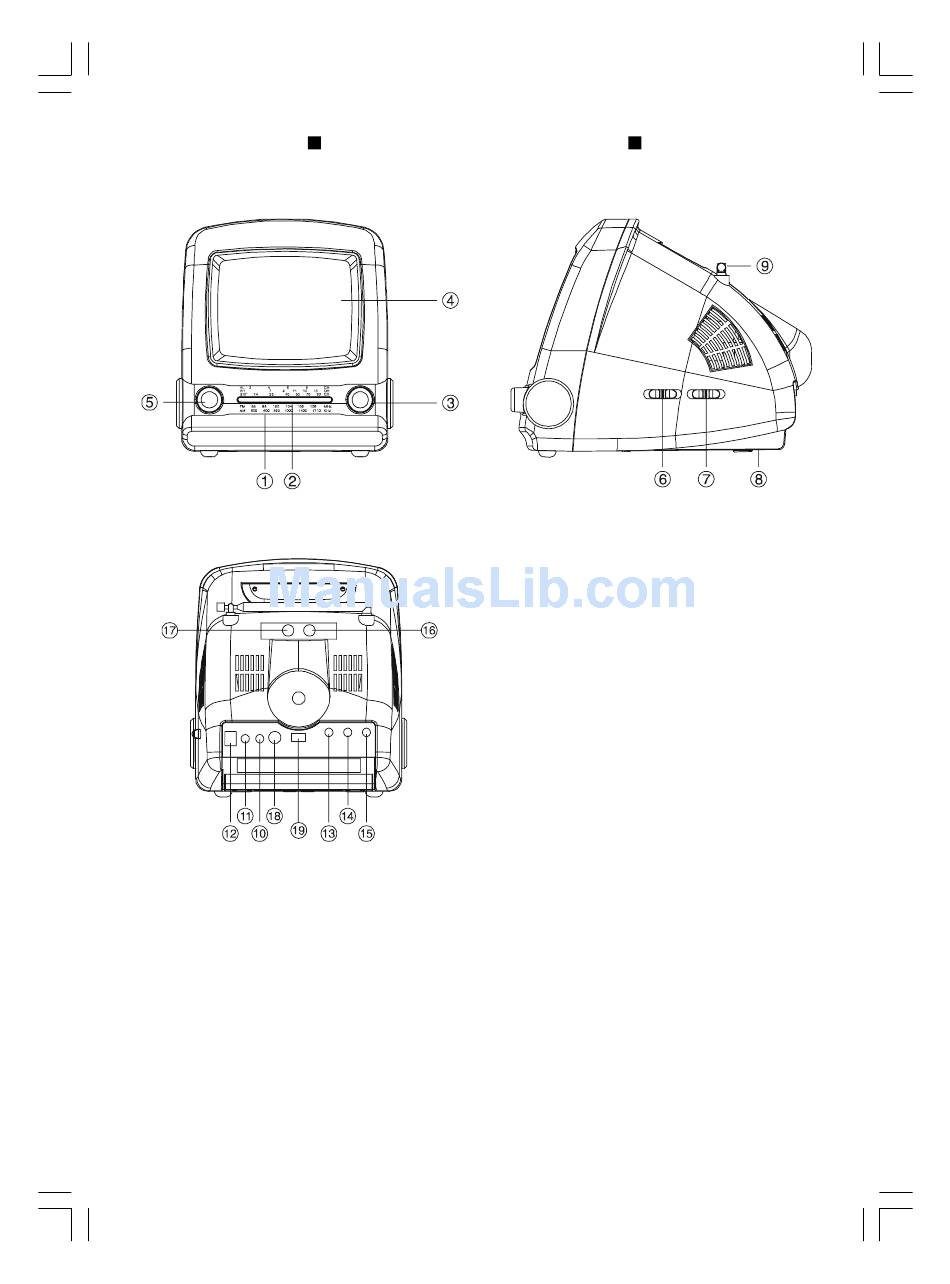

LOCATION OF CONTROLS
E-<1>
8. Battery Cover
9. Telescopic ROD antenna
10. Earphone Jack
11. External Antenna Jack
12. DC Power Input Jack
13. Contrast Control
14. Brightness Control
15. Vertical Hold Control
16. Video In
17. Audio In
18. AV/TV Switch
19. Ext/Batt/Charge

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT072 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Curtis RT072

Summary of Contents for Curtis RT072

  • Page 1 3. Tuning Control 4. Picture Tube 5. Volume Control/Power Switch 6. Function Selector TV/Radio 7. Band Selector TV : VL/VH/UHF Radio : AM/FM 8. Battery Cover 9. Telescopic ROD antenna 10. Earphone Jack 11. External Antenna Jack 12. DC Power Input Jack 13.

  • Page 2: Radio Operation

    OPERATING INSTRUCTIONS TV OPERATION 1. Turn on Power Switch (5). 2. Slide the Function selector (6) to the “TV” position. 3. Slide the band selector switch (7) to a desired band (VL/VHF/UHF). 4. Turn the tuning control (3) to a desired station on the tuning indicator (1).

  • Page 3: Power Sources

    POWER SOURCES AC ADAPTER OPERATION To use the adaptor, plug the small round end of the adaptor into the DC jack (12). Then plug the pronged plug into AC wall outlet. WARNING: Before plugging into AC wall outlet, make sure the outside adapter voltage selector is set for the voltage used in your location.

  • Page 4: Antenna Connector

    When operating, extend it’s length and adjust its direction & angle for the clearest picture. EXTERNAL ANTENNA If desired you may hook-up an outdoor antenna to your portable tv set. This will give you greater range and clearer reception for channels that are difficult to receive with the telescopic antenna.

  • Page 5: Specifications

    SPECIFICATIONS TV System: Channel Range: Radio : Antenna Input Impedance: CRT: Resolution : Sound Output: Power Source: Power Consumption: Dimension : Net Weight: Gross Weight: Average Battery Life at 25 C: Accessories included: NTSC M VHF-Lo: CH: 2-6 VHF-Hi: CH: 7-13...

  • Page 6: Instruction Manual

    INSTRUCTION MANUAL PORTABLE 5” BLACK & WHITE TELEVISION WITH AM/FM RADIO MODEL NO.: SRT072 Read these instructions completely before operating this receiver. E-<6>...
  • Page 7 NTSC M RADIO EXT.ANT AV/TV EARPHONE CHARGE SIZE: A5 FINISHING: Print black on the white paper. 516R I/M (ENGLISH) FJ24060 (SYLVANIA) WEN HUI JUAN 27/4-2004 E-<7>...
