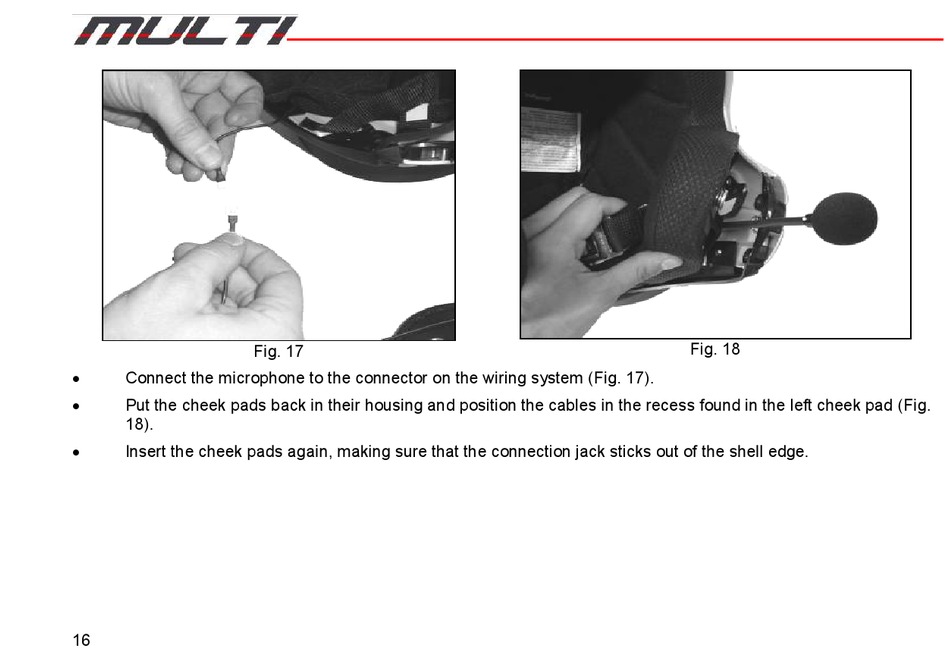

N-Com basic kit multi Instructions For Use Manual page 16

Connect the microphone to the connector on the wiring system (Fig. 17).

Put the cheek pads back in their housing and position the cables in the recess found in the left cheek pad (Fig.

18).
 Insert the cheek pads again, making sure that the connection jack sticks out of the shell edge.
16
Fig. 17
Fig. 18
