N-Com basic kit multi Instructions For Use Manual page 13

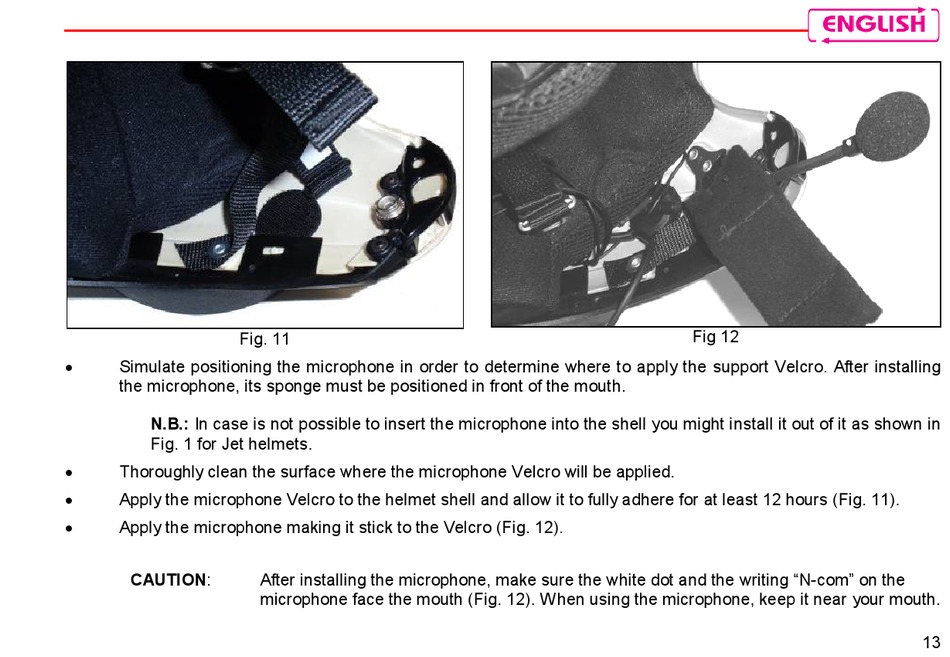

Fig. 11
 Simulate positioning the microphone in order to determine where to apply the support Velcro. After installing
the microphone, its sponge must be positioned in front of the mouth.
N.B.: In case is not possible to insert the microphone into the shell you might install it out of it as shown in
Fig. 1 for Jet helmets.
 Thoroughly clean the surface where the microphone Velcro will be applied.
 Apply the microphone Velcro to the helmet shell and allow it to fully adhere for at least 12 hours (Fig. 11).
Apply the microphone making it stick to the Velcro (Fig. 12).

CAUTION: After installing the microphone, make sure the white dot and the writing "N-com" on the
microphone face the mouth (Fig. 12). When using the microphone, keep it near your mouth.
Fig 12
13
