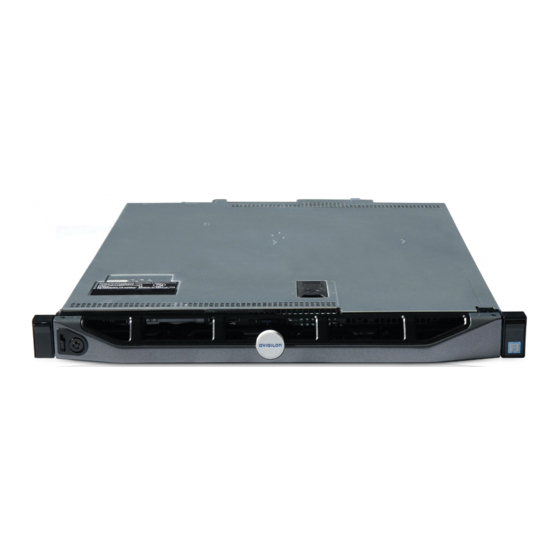

- Page 1 Installation Guide Avigilon™ HD Network Video Recorder HD-NVR3-VAL-3TB, HD-NVR3-VAL-12TB and HD-NVR3- VAL-18TB...
- Page 2 ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark. Avigilon Corporation protects its innovations with patents issued in the United States of America and other jurisdictions worldwide: http://www.avigilon.com/patents. Unless stated explicitly and in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors.
-
Page 3: Table Of Contents
Manual Activation Adding Licenses Networking Configuring the Avigilon Control Center Software Starting Up and Shutting Down the Avigilon Control Center Client Software Starting Up the Client Software Shutting Down the Client Software Logging Into and Out of a Site Logging In... - Page 4 LED Indicators Power Status Indicators Network Link Status Indicators Hard Drive RAID Status Indicators Specifications Limited Warranty and Technical Support...
-
Page 5: Introduction
Introduction The Avigilon HD Network Video Recorder is preloaded with Avigilon Control Center™ software and is configured for maximum performance and reliability. The HD Network Video Recorder can be easily integrated into any existing Avigilon surveillance system, or act as the base of a new site. -
Page 6: Back View
7. Hard drives Provides access to hot-swappable hard drives. There are LED indicators on each hard drive. Back View 1. Serial connector Accepts connections to serial devices. 2. USB connectors Accepts USB connections to external devices. USB 3.0-compliant. 3. Power supply Redundant power supply. -
Page 7: Installation
Installation Package Contents Ensure the package contains the following: Avigilon HD Network Video Recorder Rack sliding rail assembly kit Cable management arm assembly kit Bezel and key Power cable Recovery USB — contains Windows recovery software and supporting materials. Installing the Rack Rails and Cable Management Arm If the recorder will be kept in a server rack, install the Rack Sliding Rails and the Cable Management Arm provided in the recorder package. -
Page 8: Installing The Bezel
9. Select the network mode for the appliance. The recommended option is Work Network. Next, the Windows software restarts and applies your settings. Once restarted, you will need to license your Avigilon Control Center system. Installing the Bezel The bezel can be installed on the front of the recorder to help protect the power button and hard drives against unauthorized access. -
Page 9: Licensing The Avigilon Control Center (Acc)™ System
After the recorder restarts, the first screen you see is the Avigilon Control Center software license wizard. Other parts of the ACC system may start while you perform this procedure, but you will not be able to use any of the features until after license activation is complete. -
Page 10: Manual Activation
If you choose to upgrade your existing license to a different edition, you will need to perform the licensing procedure again. In this case, you can access the Add License wizard from the Avigilon Control Center Server Admin Tool software. -
Page 11: Networking
3. Click Add License. 4. Complete either the Internet Activation Manual Activation procedure to add the new license to your current system. Networking By default, the HD Network Video Recorder acquires an IP address on the network through DHCP. If you need to set up the recorder to use a static IP address or any specific network configuration, see the Windows Help and Support files for more information. -
Page 12: Configuring The Avigilon Control Center Software
After you set up and license the HD Network Video Recorder, it is recommended that you complete the following steps to configure the ACC system. For more information about any of the following procedures, see the help files provided with the Avigilon Control Center Client software. -
Page 13: Logging Into And Out Of A Site
Logging Into and Out of a Site After you start the Client software, you are immediately asked to log in to a site. By default, the HD Network Video Recorder is automatically added to the system as a server within a site of the same name. The default username is administrator with no password. -
Page 14: Connecting Cameras To The Avigilon Control Center System
To avoid this issue, it is highly recommended that you create at least one other administrator level user as a backup. Connecting Cameras to the Avigilon Control Center System After all the cameras in your system have been physically connected to the network, you need to connect the cameras to the ACC system so that video can be recorded and indexed for search. -
Page 15: Setting The Recording Schedule
6. If it is not displayed, click to display the Site View Editor and choose where the device appears in the System Explorer. If your site includes virtual sub-sites, select a location for the device. The list on the right updates to show what is stored in that directory. -
Page 16: Setting Up A Weekly Recording Schedule
Setting Up a Weekly Recording Schedule You can set up a weekly recording schedule by applying templates to cameras for each day of the week. 1. In the server Setup tab, click . The Recording Schedule dialog box is displayed. 2. -
Page 17: Adding Users And Groups
1. In the server Setup tab, click The Recording and Bandwidth dialog box is displayed. The Data Aging column shows an estimate of the recording time that is available at each image rate, given the amount of space on the recording device. 2. -
Page 18: Adding Groups
5. In the Login Timeout area, select the Enable login timeout check box to set the maximum amount of time the Avigilon Control Center Client software can be idle before the user is automatically logged out of the application. -
Page 19: Advanced Settings
Alarms tab and in the ACC Mobile App. Self-Learning Video Analytics If you have an Avigilon self-learning video analytics device, use the Video Analytics Configuration dialog box to configure classified object motion detection. Once configured, you can receive events, trigger alarms, define rules, and record video when specific object motion requires your attention. - Page 20 Setup the Gateway The ACC Gateway software allows you to access video from a remote web browser or mobile device. If the Gateway software is not set up, you cannot access video outside of your local network. Install the ACC Mobile app on your mobile device so that you can remotely monitor live and recorded video.
-
Page 21: Advanced Features
Advanced Features Checking System Health The Server Administrator software is pre-installed on the recorder. The software provides information about the recorder’s system operation status, and gives you remote access to the recorder for recovery operations. If one of the LED indicators on the recorder is flashing an error warning, the Server Administrator will display details about the problem. -
Page 22: Replacing Hard Drives
Replacing Hard Drives 1. Locate the failed hard drive at the front or back of the recorder. 2. Press the release button on the front left of the hard drive. 3. When the handle is released, pull the hard drive out of the recorder. 4. - Page 23 LED Indicators The following tables describe what the LEDs on the recorder indicate. Power Status Indicators The power button on the front of the recorder lights up when power is on. Additional information about the power supply is provided by the power status indicator on the back of the recorder.
- Page 24 The recorder is connected to a network at less than the maximum Link LED is orange port speed. The recorder is working with other parts of the Avigilon Control Connection Status LED is blinking green Center software. Hard Drive RAID Status Indicators Each hard drive has its own set of LED indicators to show its activity and status.
- Page 25 Specifications System Avigilon Control Center Software Enterprise, Standard and Core Operating System Windows Embedded Standard 7 software Hard Disk Drive Configuration Near-line SAS, hot swappable, RAID 5 Mechanical Dimensions (LxWxH) 674.7 mm x 482.4 mm x 42.95 mm; 26.56” x 18.99” x 1.69”...
- Page 26 ENERGY STAR 2.0 EN 55022:2010+AC2011/CISPR 22:2008 EN 61000-3-2:2006 + A1:2009 + A2:2009/IEC 61000-3-2:2005 + Electromagnetic Emissions A1:2008 + A2:2009 (Class A) EN 61000-3-3:2013/IEC 61000-3-3:2013 Electromagnetic Immunity EN 55024:2010/CISPR 24:2010 Directives RoHS, Reach (SVHC), WEEE Specifications...
- Page 27 Limited Warranty and Technical Support Avigilon warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
