Summary of Contents for Millenium LST-310

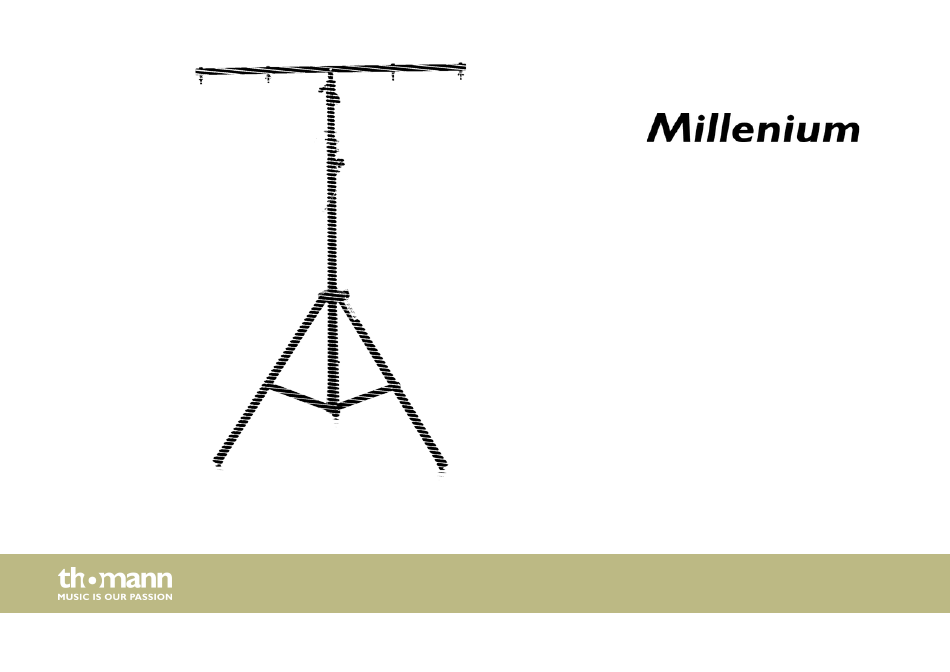

- Page 1 LST-310 lighting stand user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 20.05.2016, ID: 186230...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features................................9 Operating..............................10 Technical specifications........................16 Protecting the environment......................17 LST-310... -
Page 4: General Notes
General notes General notes This user manual contains important information on the safe operation of the product. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this product. If you sell the product to another user, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. LST-310...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This light stand is intended to be used for the stable mounting and height-adjustable posi‐ tioning of spotlights. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Never let children play unattended with the product. CAUTION! Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. LST-310...
- Page 8 Safety instructions CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property...
-
Page 9: Features
Extension tubes secured by safety bolt and cotter pin Mounting for crossbar with TV spigot Crossbar: 1.20 m Maximum weight-bearing capacity: 18 kg Minimum height: 1.77 m Maximum height: 3.10 m Maximum vertical lift: 1.33 m Weight: 11 kg LST-310... -
Page 10: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property damage. Never exceed the maximum load capacity specified for the stand. LST-310...
- Page 12 Operating NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 13 Fix the position of the lower extension tube with the safety screw on the lower tube clamp. Tighten the Allen screws on the upper and lower tube clamps with the supplied Allen key. LST-310...
- Page 14 Operating Attach up to four spotlights to the crossbar. Observe the instructions of the respective manufacturers. The maximum load capacity of the truss of 18 kg must not be exceeded. lighting stand...
- Page 15 Loosen the safety screw on the slider to which the three feet are attached. Fold up the feet of the tripod. Pack all parts of the system in their original package, as possible, and store the package in a dry place protected against moisture. LST-310...
-
Page 16: Technical Specifications
Technical specifications Technical specifications Crossbar 1.20 m Minimum height 1.77 m Maximum height 3.10 m Maximum vertical lift 1.33 m Maximum weight-bearing capacity 18 kg Weight 8 kg Colour Black lighting stand... -
Page 17: Protecting The Environment
Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging. LST-310... - Page 18 Notes lighting stand...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
