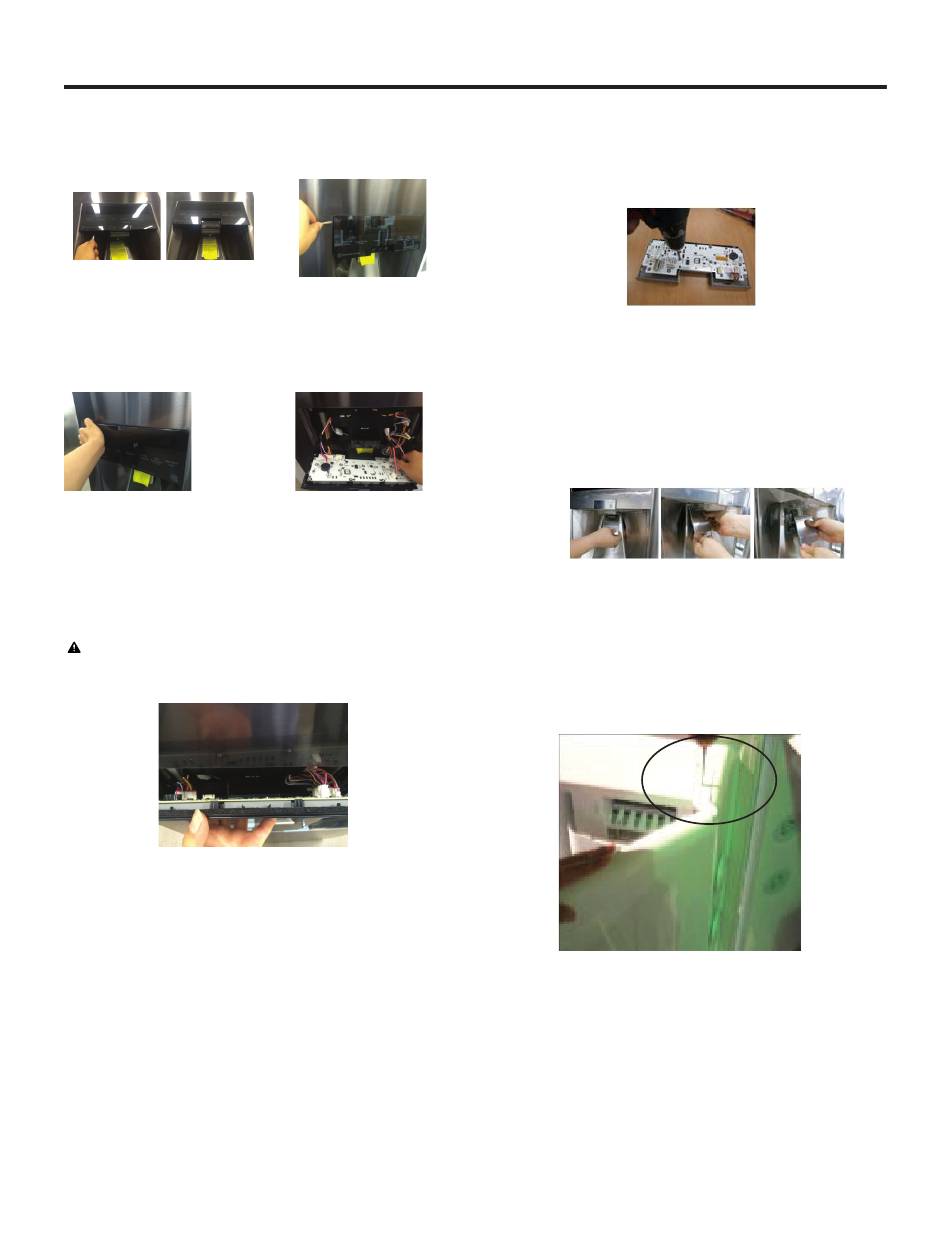

3-9 DISPENSER

1) As shown picture,
Separate bottom of
display by the flat-head
screwdriver.
3) Separate display from
left to right.
CAUTION: When replacing he dispenser cover make
sure the lead wire does NOT come off.
2) Separate left side of
display by the flat-head
screwdriver.
4) Remove the entire
housing.
- 11 -

3-10 DISPLAY PCB

Remove the display PCB fixing screw.

3-11 ICE BUTTON ASSEMBLY

1) Pull bottom of button lever to separate hooks.
2) Separate button lever from right to left.

3-12 ICE CORNER DOOR REPLACEMENT

1) Loosen the front screw as shown in the picture.
2) Lift up the hinge with one hand.
3) Pull out the Ice Corner Door with the other hand.
hinge
