WPC-15000
Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.
Portable Air Conditioners
Descrip on

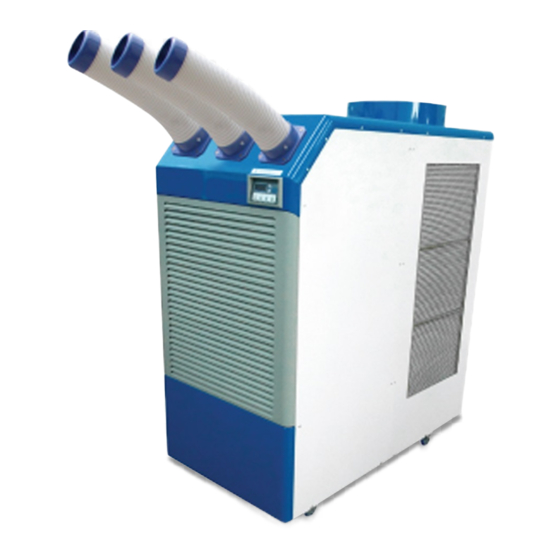

AmeriCool by Weltem Portable Air Condi oners feature spot cool-
ing for large areas where cooling of the en re area is not prac cal.
A dedicated spot cooling thermostat controls the unit in this ap-
plica on. These air condi oners can also be used in smaller areas
for room cooling.
A control panel provides ease of use and contains a self-diagnos c
func on and display, showing opera ng modes, room and set
temperatures, and faults. If an abnormal opera on occurs, a visual
display of the fault is shown. Caster wheels are included for easy
portability. Suitable applica ons include: a factory or work place,
industrial kitchen, computer room, emergency cooling, outdoor
event, etc.
Unpacking
A er unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifi ca ons
Model No.
Power Supply Ph-V-Hz
WPC-15000
Single Phase, 220V, 60Hz
WPC-15003
3 phases, 460V, 60Hz
Model No.
WPC-15000
WPC-15003
Terminal type
Model No.
Weight (Net / Gross) Lbs(kg)
WPC-15000
(661 / 694) 300 / 315
WPC-15003
(694 / 727) 315 / 330
Cooling Capac-
Nema Plug
6-50 P
No. of Cool Air
by
Power Consump-
ity Btu/h
on Wa s
60,000
5000
71,000
5400
Power Cord
Power Cord Length
Gauge AWG
8
10
Condensate tank
Outlets Pcs
Gallons(Liters)
Auto Pump
3
Included
1
Owner's Manual
WPC-15000 / WPC-15003
WPC-15000, WPC-15003
Figure 1
EER Btu/Wh
12.0
13.2
Dimensions
W x D x H - in. (mm)
6
735 x 1310 x 1520
6
Ambient temperature
range °F( °C)
64~113 (18~45)
