Watchguard DVR4ENTPACK4 Quick Installation Manual page 2

Before commencing installation, please ensure you have all the parts listed below.)

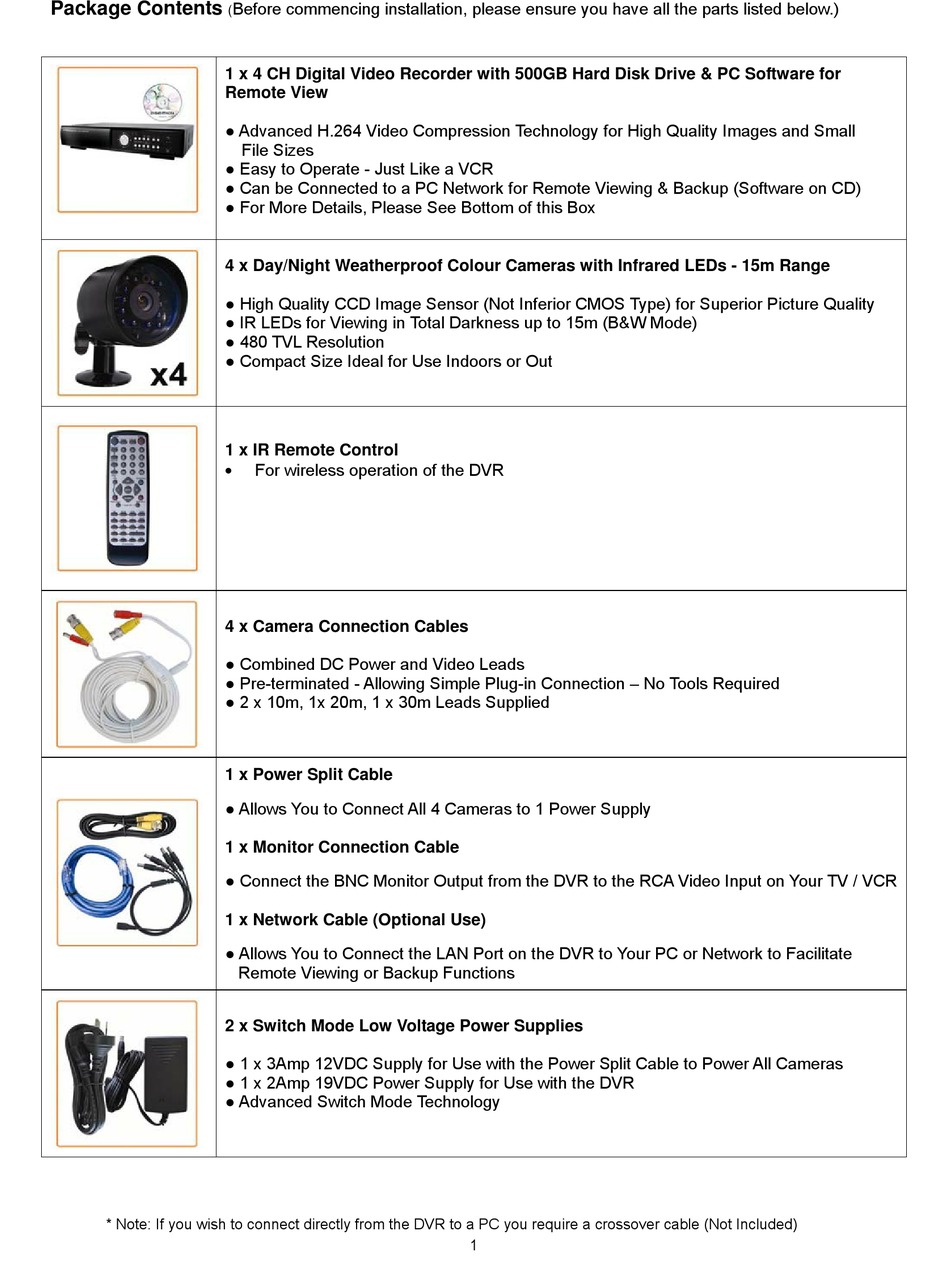

Package Contents
(
1 x 4 CH Digital Video Recorder with 500GB Hard Disk Drive & PC Software for
Remote View
● Advanced H.264 Video Compression Technology for High Quality Images and Small
File Sizes
● Easy to Operate - Just Like a VCR
● Can be Connected to a PC Network for Remote Viewing & Backup (Software on CD)
● For More Details, Please See Bottom of this Box
4 x Day/Night Weatherproof Colour Cameras with Infrared LEDs - 15m Range
● High Quality CCD Image Sensor (Not Inferior CMOS Type) for Superior Picture Quality
● IR LEDs for Viewing in Total Darkness up to 15m (B&W Mode)
● 480 TVL Resolution
● Compact Size Ideal for Use Indoors or Out
1 x IR Remote Control

For wireless operation of the DVR
4 x Camera Connection Cables
● Combined DC Power and Video Leads
● Pre-terminated - Allowing Simple Plug-in Connection – No Tools Required
● 2 x 10m, 1x 20m, 1 x 30m Leads Supplied
1 x Power Split Cable
● Allows You to Connect All 4 Cameras to 1 Power Supply
1 x Monitor Connection Cable
● Connect the BNC Monitor Output from the DVR to the RCA Video Input on Your TV / VCR
1 x Network Cable (Optional Use)
● Allows You to Connect the LAN Port on the DVR to Your PC or Network to Facilitate
Remote Viewing or Backup Functions
2 x Switch Mode Low Voltage Power Supplies
● 1 x 3Amp 12VDC Supply for Use with the Power Split Cable to Power All Cameras
● 1 x 2Amp 19VDC Power Supply for Use with the DVR
● Advanced Switch Mode Technology
* Note: If you wish to connect directly from the DVR to a PC you require a crossover cable (Not Included)
