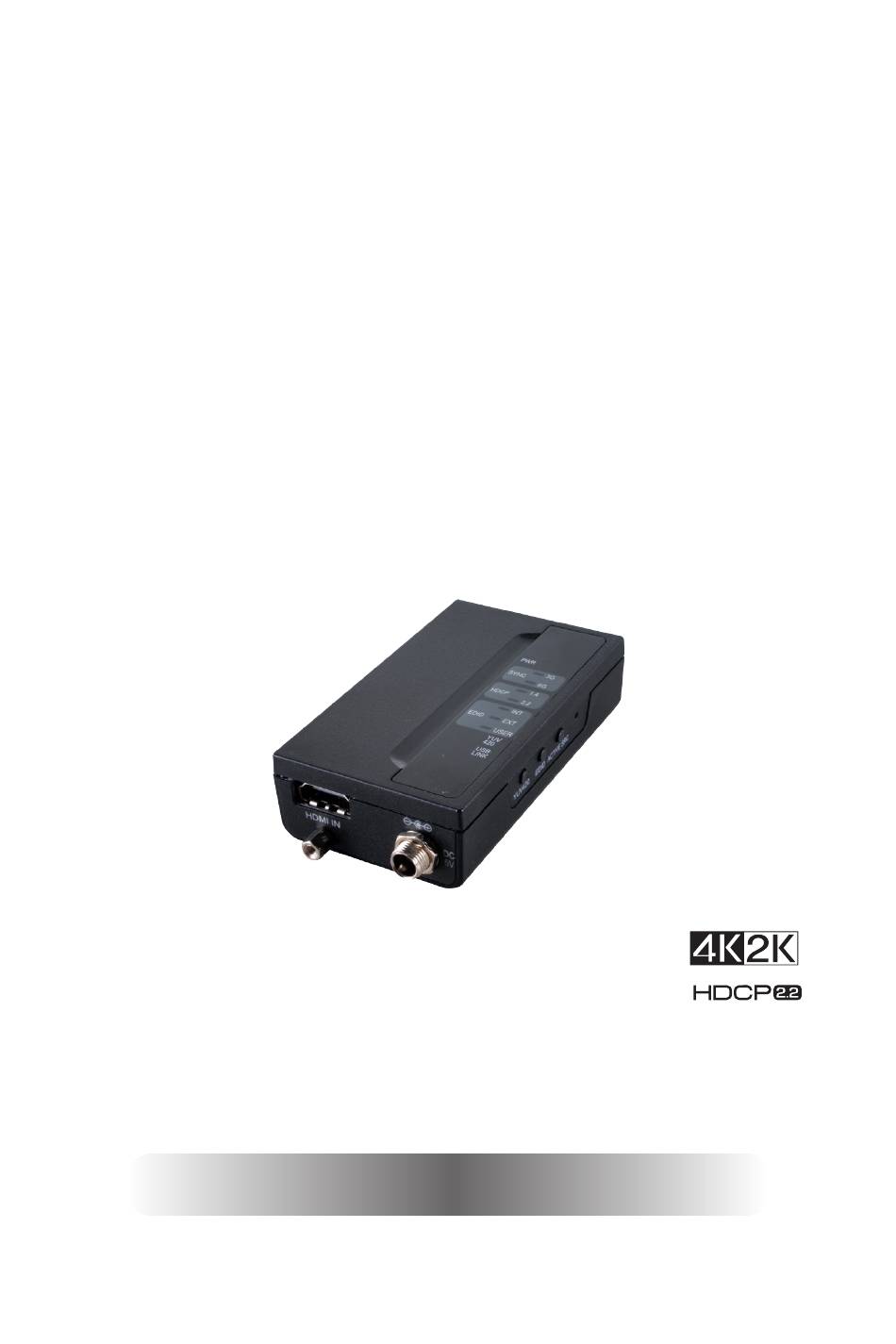

  • Page 1 XA-HDCP 4K2K EDID Emulator & HDCP Converter Operation Manual Operation Manual...
  • Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front and Rear Panels .....3 6.2 Top Panel ..........4 6.3 Side Panel .........5 6.4 EDID Management Coming soon, please contact support@cypeurope.

  • Page 5: Introduction

    1. INTRODUCTION The 4K2K EDID Emulator & HDCP Converter is a handy device for your HDMI signal differentiate. With 6G bandwidth, HDCP analyzing, EDID and YUV420 selections this device allows you with fast and clear viewing on the HDMI signal status. Further, this device allows user to upload EDID for selection which create alternative EDID selection for specific usage.

  • Page 6: Features

    5. FEATURES • HDMI with 4K2K 6G supported, HDCP 2.2/1.4 and DVI compliant • Supports video source and output display signal analysis up to 6G 4K2K • Supports HDMI 2.0 • Supports HDCP v2.2 to v1.4 conversion • Supports EDID selection from internal, external and user’s EDID to be insert •...

  • Page 7: Operation Controls And Functions

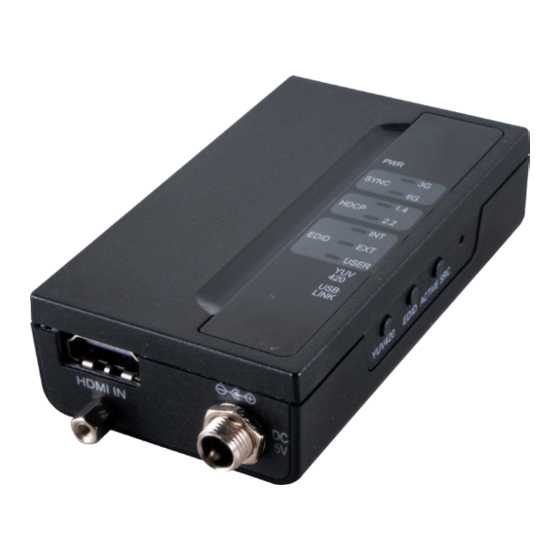

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front and Rear Panels Front Rear SERVICE HDMI IN HDMI OUT HDMI IN: Connect with HDMI source equipment such as Blue-ray/ PS4 player with HDMI cable. DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet.

  • Page 8: Top Panel

    6.2 Top Panel SYNC HDCP EDID USER LINK PWR LED: This LED will illuminate when the device is connected with power supply from the AC outlet. SYNC LEDs: These LEDs will illuminate according to both HDMI input and output signal’s current bandwidth. When input signal is 6G and YUV420 button is pressed to switch output signal to 3G YUV420, both LEDs will illuminate.

  • Page 9: Side Panel

    Source Non-HDCP 1.4 & 2.2 Display 1.4 & 2.2 Signal Non-HDCP 1.4B 1.4B B: Blinking EDID LEDs: These LEDs will illuminate according to the selected EDID setting. YUV420 LED: This LED will illuminate according to YUV420’s selection. USB LINK LED: This LED will illuminate when the connected USB device is valid for PC control.

  • Page 10: Edid Management-Coming Soon, Please Contact Support@Cypeurope.com For Further Details

    6.4 EDID Management-Coming soon, please contact support@cypeurope.com for further details Once the file has been downloaded successfully , double click to open the application and EDID Manager’s window will pop-...
  • Page 11 Connect the unit under power ON status with USB cable from PC/ Laptop. Click on Search to allow the unit to be lined up. Under EDID Controller user may select EDID from Internal, External or User as a reference for input HDMI source, the selection will act correspondingly with the unit’s LED light.
  • Page 12 Click on System to learn the unit’s Current Firmware version. To update simply open the *.bin file and click on Update. Once the update is finished click on Disconnect and re-power on the unit will complete the update procedure.
  • Page 13 To use the advance features like EDID Analyzer and Creator on the EDID Manager, requires registration and approval license. Click from License and select Export, the application will generate a License export file for user to save. Send this file to license@cypeurope.com to get an import license file.
  • Page 14 It may require one or two working days before you get your license approved. Once you get the license file please import back into EDID Manager and the advanced features will be available for use. Click on EDID Analyzer to view current EDID details of Internal, External, User and even the EDID file created by user.
  • Page 15 Click on EDID Creator to design (Brand New) or redesign (Bin Modify) your EDID. EDID may be designed with its Description, Timings, Audio, Color Space and Others such as 3D and CEC address with just few simple ticks. Once the design is done user may choose to save it or upload it as an User EDID.

  • Page 16: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input (Up to 3m@4K) Power Supply HDMI IN SERVICE HDMI OUT HDMI Output (Up to 3m@4K) UHDTV...

  • Page 17: Specifications

    8. SPECIFICATIONS Video Bandwidth 600 MHz/6 Gbps Input Ports 1×HDMI Output Ports 1×HDMI HDMI Resolutions VGA~WUXGA (RB), 408i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV444) HDMI Cable Distance 10 m@1080p/8-bit, 10 m@1080p/12-bit, 5 m@4K/30, 3m@4K/60 Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:...

  • Page 18: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce Blanking)
