BR2
MULTI-MODEL INFRA-RED REMOTE CONTROL
OWNER'S MANUAL
2008-10-31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR2 and is the answer not in the manual?

Questions and answers

Related Manuals for Bryston BR2

  • Remote Control Bryston BR2 Owner's Manual
    Remote Control Bryston BR2 Owner's Manual
    Handheld infra-red remote control, for use with bryston bcd-1 cd player, bda-1 digital-to-analog converter, b60r & b100 integrated amplifiers, bp6, bp16 & bp26 preamps (4 pages)

Summary of Contents for Bryston BR2

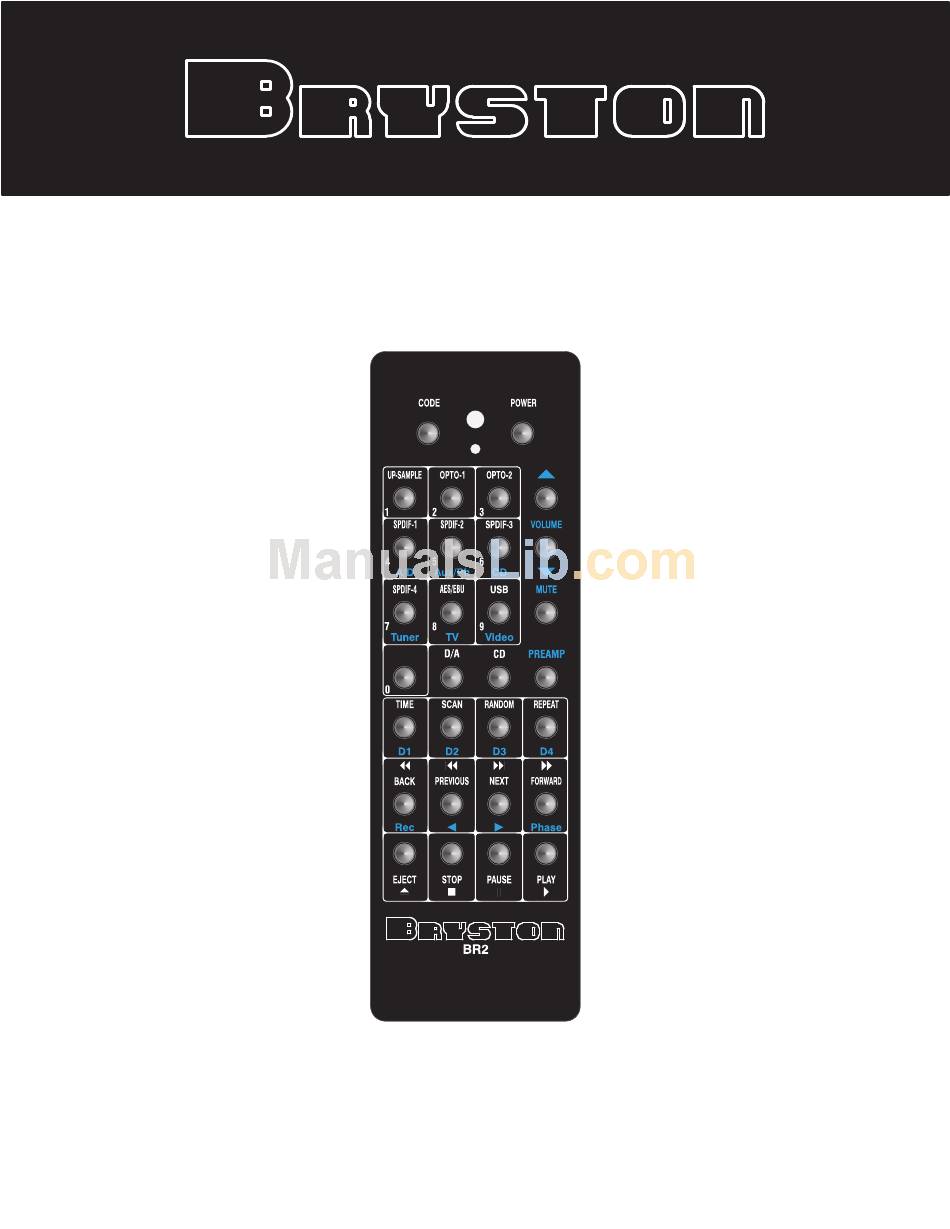

  • Page 1 MULTI-MODEL INFRA-RED REMOTE CONTROL OWNER’S MANUAL 2008-10-31...
  • Page 2 Other codes: 792: Disable motion sensor backlight control 797: Enable motion sensor backlight control The red LED will flash twice after a code has been entered successfully. * See also Model Select Buttons below. MODEL SELECT BUTTONS: The D/A, CD and PREAMP buttons allow switching BR2 operation directly amongst Bryston’s BDA-1, BCD-1 and various Bryston Preamps (depends on which one has been previously selected using the codes above). PROGRAMMING/CONTROLLING the B100/BP16 via the BR2 REMOTE CONTROL: Press the CODE button on the remote control until the red LED lights and then enter the 3 digt code as listed below. The LED will flash to confirm transmission and then extinguish. 001: select analog source 1 (A/D) 002: select analog source 2 (AUX/PH) 003: select analog source 3 (CD) 004: select analog source 4 (TUNER) 005: select analog source 5 (TV)

  • Page 3: Important Safety Instructions

    PROGRAMMING THE BCD-1 via the BR2 REMOTE CONTROL: Press the CODE button on the remote control until the red LED lights and then enter the 3 digt code as listed below. The LED will flash to confirm transmission and then extinguish. 242: T o enable toggling the display ON or OFF. After entering code 242 the zero button can be used to toggle the display on or off. Reverse this procedure to deactivate this display on/off function Enable or disable the External (remote) Trigger: 1st) P lace the BCD-1 in standby mode by pressing the POWER button on either the BCD-1 itself or on the remote control until the red standby LED on the front panel of the BCD-1 (immediately above the front panel POWER button) lights. 2nd) Press the CODE button momentarily until the red LED is continuously lit. 3rd) E nter the code 241. Every time the code is successfully entered the state of the External Trigger will toggle between enabled and disabled and the status of the External Trigger will be displayed on the alpha-numeric display for 2 to 3 seconds. T he External Trigger utilizes a control voltage (3 to 12 volts, either AC or DC) connected to the TRIGGER IN port on the rear of the BCD-1. A wire-clamp connector that mates with the TRIGGER IN port is provided with every BCD-1 (See page 2 for wiring details). Once enabled the BCD-1 will only be powered on when a control voltage of 3-12V AC/DC at ≥3mA is present. As soon as the control voltage is withdrawn the BCD-1 will power down and go into standby mode. For more information see the BCD-1 Owners Manual PROGRAMMING THE BDA-1 via the BR2 REMOTE CONTROL: Press the CODE button on the remote control until the red LED lights and then enter the 3 digt code as listed below. The LED...
  • Page 4 PETERBOROUGH, ONTARIO CANADA K9J 7Y4 Courier address: 677 NEAL DRIVE PETERBOROUGH, ONTARIO CANADA K9J 6X7 PHONE: 705-742-5325 FAX: 705-742-0882 E-mail: cdnser@bryston.ca BRYSTON LIMITED WARRANTY BRYSTON SERVICE outside Canada and the USA: BRYSTON SERVICE in the USA: 79 COVENTRY ST., Suite 5 contactyourlocaldistributor or NEWPORT, VERMONT CHECKOURWEBSITE: U.S.A. 05855-2100 E-MAILBRYSTONDIRECTLY: FAXBRYSTONDIRECTLY: PHONE: 802-334-1201 PHONEBRYSTONDIRECTLY: FAX:...
