Lumapower Signature Tactical LX User Manual

prolonged exposure to moisture, the bezel and batteries should be removed, inspected,
.
and dried if necessary
WARNING:
Lumapower reflectors are made with a highly precise process. Do not
touch or clean the reflecting surface using any cloth which may cause damage to the
surface material affecting the illuminating performance.
Reflecting surface

Inactive Periods.

If " Signature-LX " is left unused for long period, the installed batteries should be
removed from the unit.
Output & Runtime
Accurately specifying light output (lumens) and runtime is complicated for LED flashlights.
Installed batteries and operating temperature are the main factors affecting the light
output and runtime. Lumapower cannot guarantee its products can reach the specification
under the using condition of users.

Specification

LED : Cree LED-XM-L U2
Reflector : Standard OP-textured type, (Optional SMO reflector).
Emitter Output : 25 Lumens to 580 Lumens
Runtime : 80 minutes Ultra-level to 50% with 2 x 123A (1500mAh)
150 minutes High-out to 50% with 2x123A (1500mAh)
180minutes Ultra-Level with 1x18650 (2800mAh)
300minutes High-Level with 1x18650 (2800mAh).
Input Voltage : 2.8V to 12 V
Batteries : primary 123A, rechargeable Li-ion (16340,18650...)
Length : 133mm
Bezel Diameter : 27mm
Body Diameter : 22.5mm
Tail cap Diameter : 27mm
Anti-roll retainer Diameter : 30mm
Reflector/lens Diameter : 23mm
Weight : 80.5g (Full size without battery installed)
Material : T6 aircraft aluminum with Type III HA
Body color : Black
Accessories : spare o-rings (for battery tube), rubber switch cap, Holster
Specifications: All product specifications/features are subject to change without notification.

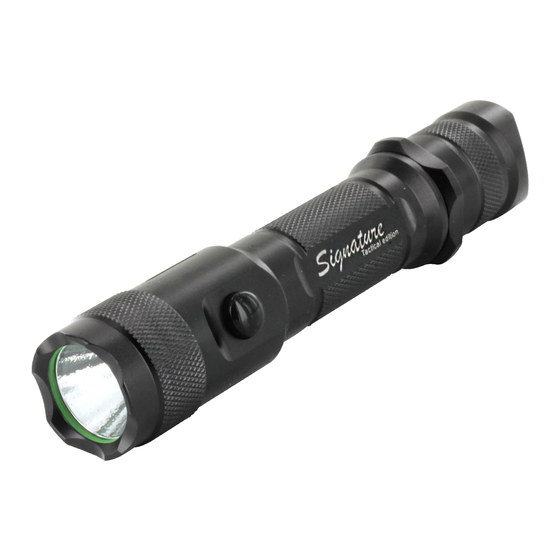

Signature Tactical LX
Lumapower Multi-purpose Flashlight
With Cree LED-XM-L
User Manual
(ver.1.7)
