Package Contents

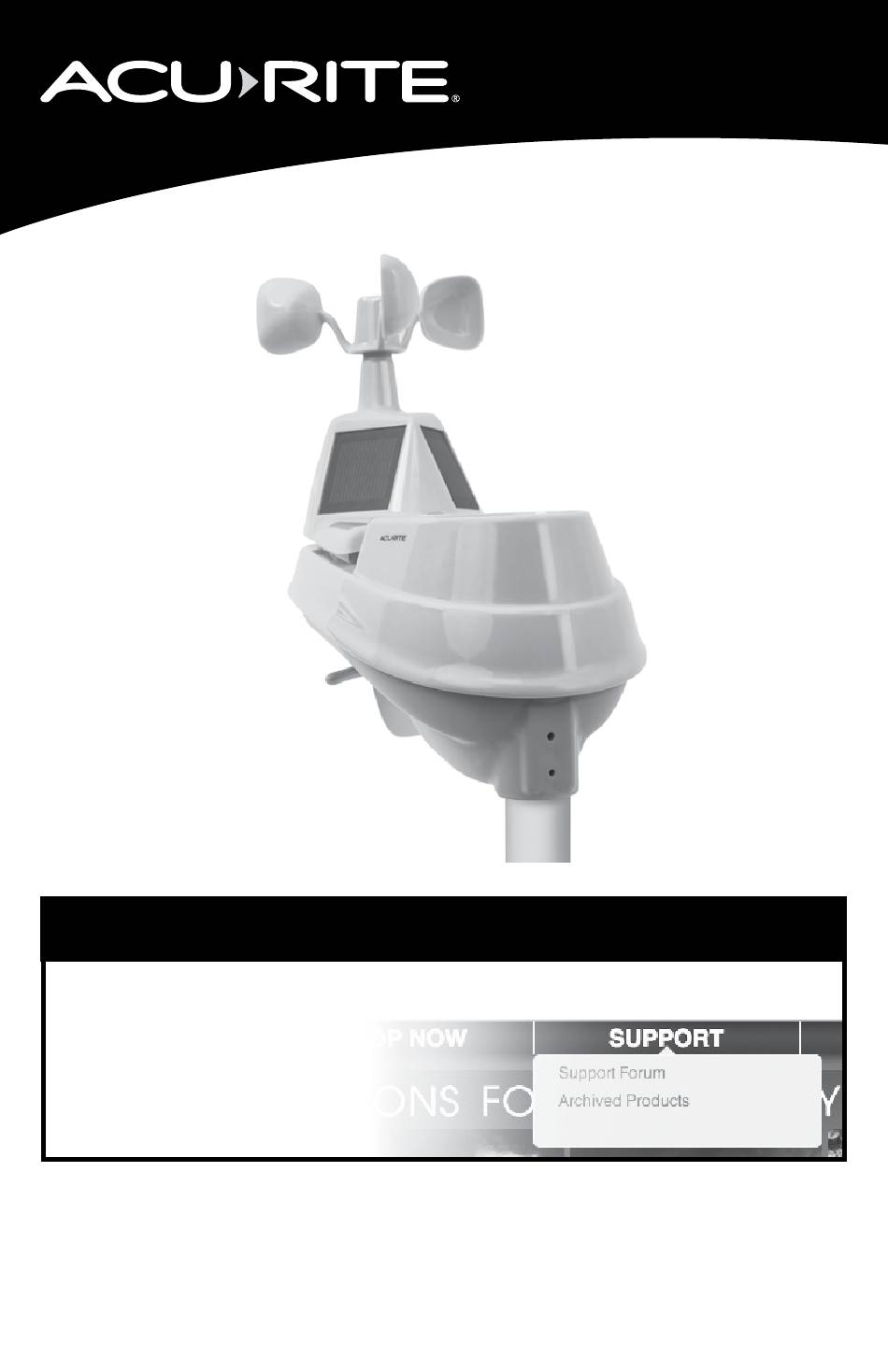

1. 5-in-1 PRO Weather Sensor
2. Mounting Hardware
3. Sensor Mounting Bracket
4. Instruction Manual
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
Questions?
(844) 228-5465 or visit www.AcuRite.com.
5-in-1 PRO Weather Sensor
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
Contact Customer Support at
Instruction Manual
model 06014RM
►
Register a Product
Advertisement
Table of Contents
Related Manuals for ACU-RITE 06014RM
Summary of Contents for ACU-RITE 06014RM
- Page 1 Instruction Manual 5-in-1 PRO Weather Sensor model 06014RM Package Contents 1. 5-in-1 PRO Weather Sensor 2. Mounting Hardware 3. Sensor Mounting Bracket 4. Instruction Manual IMPORTANT PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE PRODUCT REGISTRATION Register online to receive 1 year warranty protection www.AcuRite.com...
- Page 2 Features & Benefits 5-IN-1 SENSOR 1. Rainfall Collector Funnel 5. Temperature & Humidity Sensors (internal) 2. Solar Cell Panels Converts sunlight into power to run 6. Mounting Point internal aspirating fan. 7. Wind Speed Anemometer Internal Aspirating Fan (not shown) 8.
- Page 3 SETUP 5-in-1 Sensor Setup Set the A-B-C Switch The 5-in-1 sensor requires lithium Locate the A-B-C switch inside the batteries in low temperature battery compartment. Set the A-B-C conditions. Cold temperatures can switch to A, B or C. You must select cause alkaline batteries to function the same letter choice for both the improperly.
- Page 4 Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of the sensor is critical to the accuracy and performance of this product. 5-in-1 Sensor Placement The 5-in-1 sensor is designed to remain outdoors all year long. Choose an open location with no obstructions above or around the sensor for the most accurate measurements.
- Page 5 5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at least 5 feet (1.5 meters) off the ground in an open area. Higher is better for wind measurement- the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4”...
- Page 6 Calibrate the Rain Gauge The rain gauge on the 5-in-1 sensor can be calibrated to improve accuracy. Items Needed: 5-in-1 sensor, companion unit, plastic cup, pin, screw driver 1. First, ensure 5-in-1 sensor is perfectly level using built-in bubble level. 2.
- Page 7 Specifications TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC HUMIDITY RANGE Outdoor: 1% to 99% WIND SPEED 0 to 99 mph; 0 to 159 kph*; 0 to 86.03 knots WIND DIRECTION INDICATORS 16 points RAINFALL Measured in inches (in) or millimeters (mm)* WIRELESS RANGE 330 ft / 100 m depending on home construction materials...
- Page 8 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 06014RM INST 090215 Visit www.AcuRite.com/patents for details.
