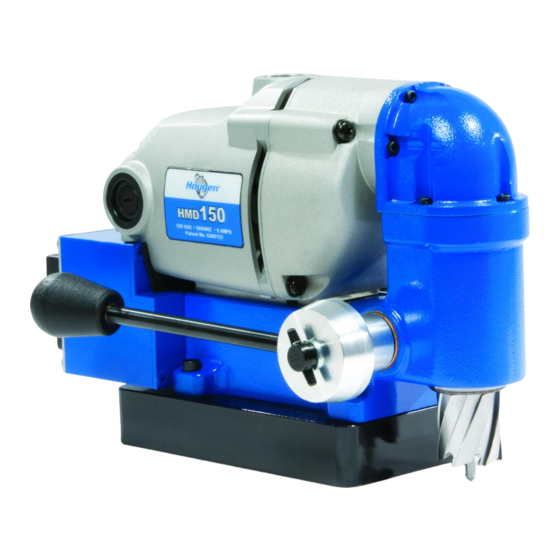

Hougen HMD150 Operator's Manual

Hougen HMD150 Operator's Manual

Portable magnetic drills
Hide thumbs Also See for HMD150:

Advertisement

Quick Links

MODEL HMD150
PORTABLE MAGNETIC DRILLS
OPERATOR'S MANUAL
FOR USE WITH ROTALOC PLUS™ CUTTERS

Advertisement

loading
Need help?

Need help?

Do you have a question about the HMD150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hougen HMD150

  • Page 1 MODEL HMD150 PORTABLE MAGNETIC DRILLS OPERATOR’S MANUAL FOR USE WITH ROTALOC PLUS™ CUTTERS...
  • Page 2: Safety First

    first. These include the Operator’s Manual and Warning Label on the unit itself. With proper use, care, and maintenance, your model will provide you with years of effective hole drilling performance. Once again, thank you for selecting our product and welcome to Hougen. Specifications Cutter Type.......RotaLoc Plus Hole Capacity....1/2”...
  • Page 3: Important Safety Instructions

    Do not use tool in presence of flammable liquids or 12. Non-Conforming Cutting Tools gases. Disconnect from power source when changing Your Mag Drill is designed to use Hougen Cutters. cutters or maintaining drill. The use of drilling tools having different shank styles is not recommended as they may not tighten securely 8.
  • Page 4 Wear protective hair covering to contain long hair. hold. Keep hands and clothing away from all moving parts. Do not use Hougen Cutters where ejected slug 16. Do Not Abuse Cord might cause injury (slug ejected at end of cut).
  • Page 5: Safety Switch

    SAFETY SWITCH INDICATOR LIGHT The Safety Switch Indicator Light is a Standard Safety Feature on HMD150 magnetic drills. Its purpose is to inform the user that an unsafe condition exists or the safety switch is defective. If light is Green: In normal operation the safety switch light will be green.
  • Page 6 OPERATING INSTRUCTIONS 1. Place drill on material (at least 3/8” thick) and 6. Feed Cutter slowly into workpiece. Only after cutting locate for drilling hole. path is established to a depth of about 1/16” can additional force be applied to feed handles. 2.
  • Page 7 CONTROL PANEL /HOOKUP DIAGRAM ��� ����� ���� �� ��� ��� ����� ���� ��� ����� ���� ���� ���� ����� ����� ������ ���� ����� ������ ���� ������� ���� (P4) (P3) ���� Motor Black Wire Motor White Wire (J8) ����� ����� (J7) ������ ������� ����� �����...
  • Page 9 HMD150 PARTS LIST Item # Part # Description Item# Part # Description 17276 Motor Assy 17282 Feed Hub Assy 17688 Faceplate Assy. 17283 Feed Handle Assy 24153 Screw Self Tapping 17510 Gear Cap Assy 02547 Phillips Screw 17002 SCR SHC #6-32...
  • Page 10 Motor Diagram and Parts List 17617 17601 17618 17609 17616 17626 17613 17611 17608 17615 17605 17627 17625 17612 17603 17610 17600 17602 17607 17624 17630 17604 17622 17606 17621 17602 17623 17628 17632 Part # Description Part # Description 04502 Brush Cover 17612...
  • Page 11 Hougen Manufacturing, Incorporated warrants its Portable Magnetic Drills for one (1) year and its Electro-hydraulic Hole Punchers and other products for ninety (90) days from date of purchase against defects due to faulty material or workmanship and will repair or replace (at its option) without charge any items returned. This warranty is void if the item has been damaged by accident or unreasonable use, neglect, improper service, or other causes not arising out of defects in material or workmanship.
