SonicWALL NSA 250M series Quick Start Manual

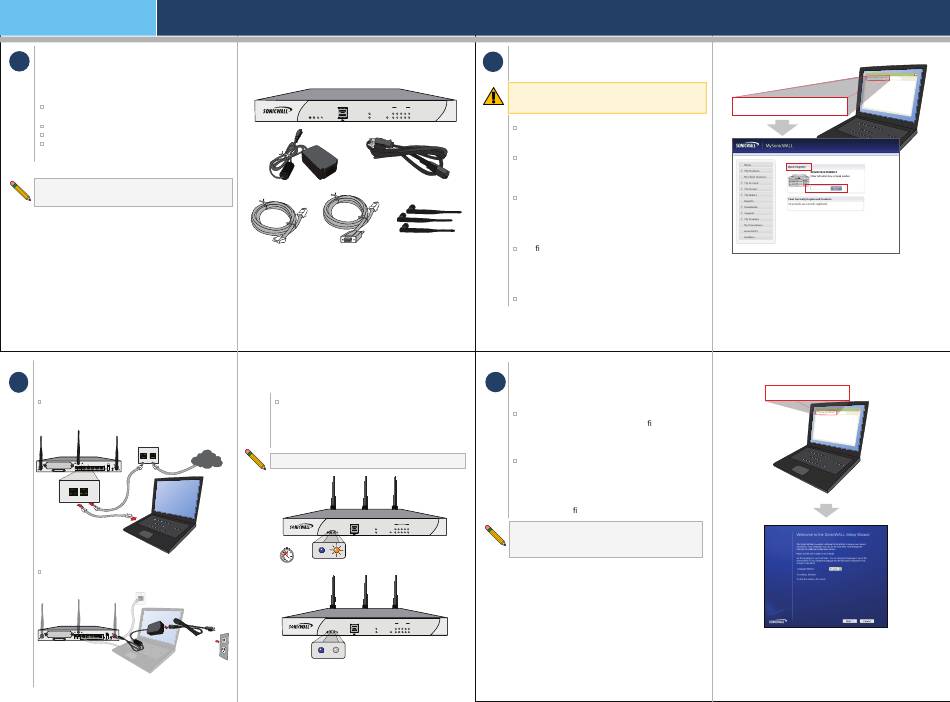

Quick Start Guide
SonicWALL NSA Series Appliances
1
Check Package Contents
Verify that your package includes the following
contents:

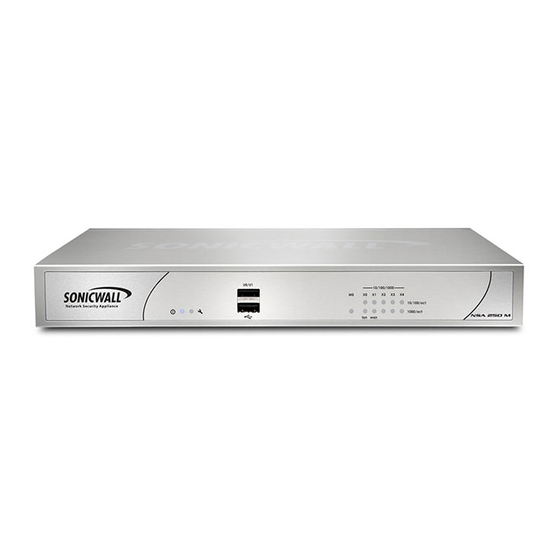

SonicWALL NSA 250M or NSA 250MW Series
Appliance
Ethernet Cable
Standard Power Adaptor and Cord
DB9 -> RJ45 (CLI) Cable
*
Wireless Antennas (3) included with NSA 250MW only
Power cords are included with units in North
America only.
3
Connect the SonicWALL NSA Appliance
Connect the SonicWALL NSA 250M/MW series
appliance to the network using standard
Ethernet cables as shown in the illustration.
Internet router
or modem
lan wan
console
lan wan
X0 X1
Connect the included power cable and adaptor,
and plug into an appropriate outlet.
lan
console
U0/U1
W0
security
Network Security Appliance
on/act
wlan
The NSA 250M/MW series appliance powers on
and the orange "test" LED blinks during the
boot sequence. Continue to Step 4 when the
"test" LED is no longer lit.
Internet This process may take up to 2 minutes.
Service
Provider
U0/U1
W0
security
Network Security Appliance
on/act
wlan
2 min
U0/U1
W0
security
Network Security Appliance
on/act
wlan
120V AC
(U.S.)
2
Register
Registration MUST be completed prior to
connecting to the appliance.
10/100/1000
M0 X0 X1 X2 X3 X4
10/100/act
1000/act
lan wan NSA 250 MW
In a Web browser, navigate to
http://www.mysonicwall.com/
If you do not have a MySonicWALL account,
click the Not a Registered User? link to
create an account.
Under the Quick Register section of your
*
MySonicWALL account, enter the Activation
Key or Serial Number of the SonicWALL NSA
series appliance you are registering.
Con rm your serial number, enter a friendly
name for your appliance, and enter your
authentication code in the Quick Register >
Add New Product section.
Click Register.
4
Configure the Management Host &
Setup Wizard
With your computer connected to the X0 port
on the SonicWALL appliance, con gure your
IP with an address on the 192.168.168.0/20,
such as 192.168.168.20.
Navigate to http://192.168.168.168/
in a Web browser.
The Setup Wizard takes you through several
basic steps to get your SonicWALL NSA series
appliance con gured for your network.
10/100/1000
After the Setup Wizard, the appliance may
M0 X0 X1 X2 X3 X4
10/100/act
1000/act
NSA 250 MW
lan wan reboot. Please wait a few minutes while the
appliance reboots to save the updated settings.
10/100/1000
M0 X0 X1 X2 X3 X4
10/100/act
1000/act
NSA 250 MW
lan wan
