Summary of Contents for Jet JNS-7033

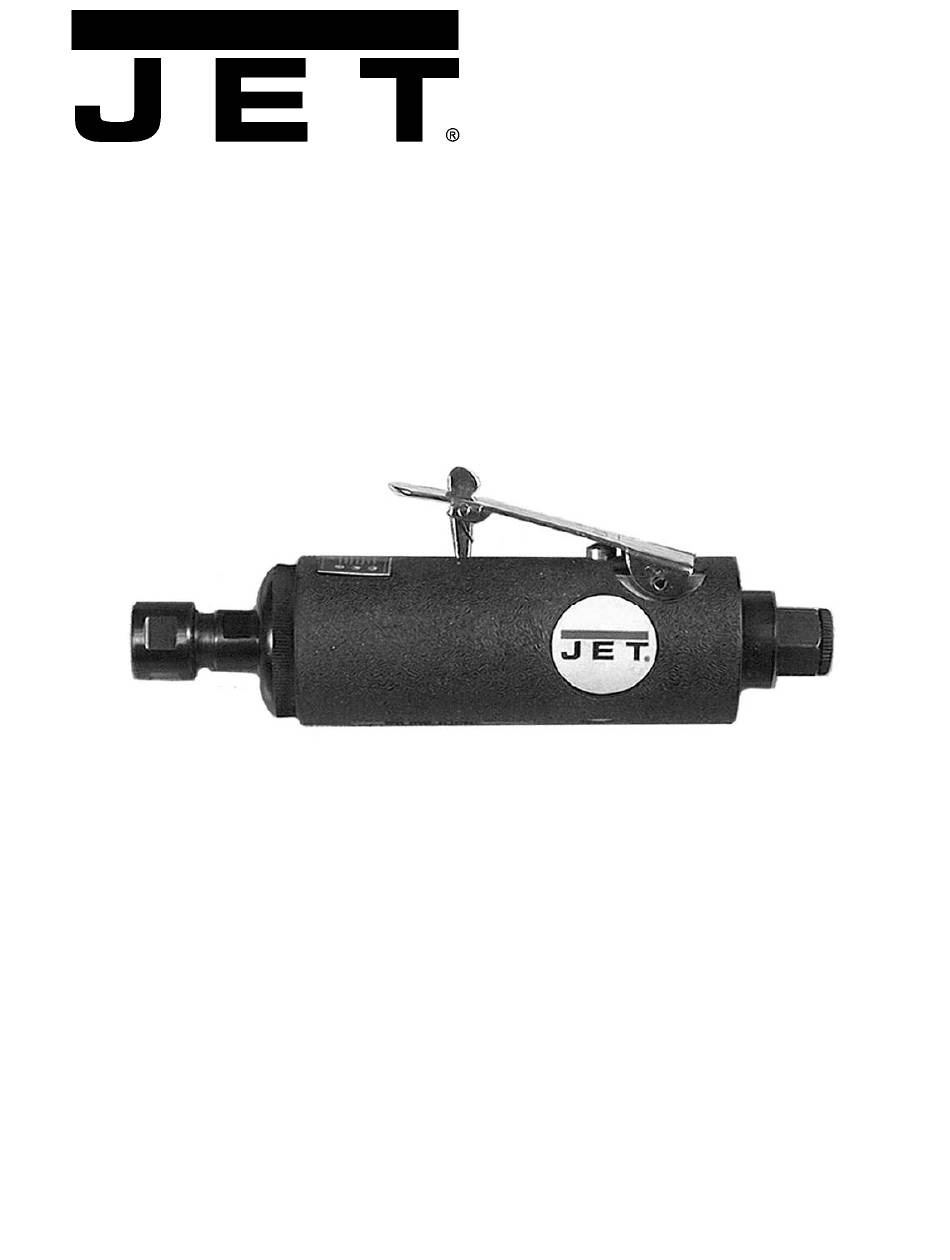

- Page 1 Operating and Maintenance Instructions 1/4-inch Air Die Grinder Model JNS-7033 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-JNS7033 Ph.: 800-274-6848 Revision B1 04/2013 www.waltermeier.com Copyright © 2013 Walter Meier (Manufacturing) Inc.
-
Page 2: Warranty And Service
This warranty covers only the initial purchaser of the product. WHAT IS THE PERIOD OF COVERAGE? The general JET warranty lasts for the time period specified in the product literature of each product. WHAT IS NOT COVERED? This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance. - Page 3 1. Read and understand this entire manual before attempting assembly or operation. 2. Read and understand the warnings posted on the tool and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. Replace the warning labels if they become obscured or removed. 4.
-
Page 4: Specifications
24. Use recommended accessories; improper accessories may be hazardous. 25. Maintain tools with care. Keep the die grinder clean and oiled for best and safest performance. Specifications Stock Number..........................JNS-7033 Collet Size (in.) ............................. 1/4 Horsepower ............................ 1/4 HP Free Speed (no load) (RPM) ......................22,000 Required Air Pressure (PSI)........................ -
Page 5: Operation
2. Place one or two drops of air tool oil* into the air inlet (Figure 3). [*NOTE: Air tool oil not provided. It may be purchased from your JET dealer, or is available at most major hardware and tool stores. SAE #10 weight oil may be used as a substitute. -
Page 6: Air Connection
4. When you are finished operating the die Excess air pressure and/or grinder, before storing it disconnect the air unclean air will shorten the tool’s life and hose and place 4 or 5 drops of air tool oil may create a hazardous situation. into the air inlet;... - Page 7 To order parts or reach our service department, call 1-800-274-6848 Monday through Friday (see our website for business hours, www.waltermeier.com). Having the Model Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately.
- Page 8 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com www.waltermeier.com...
