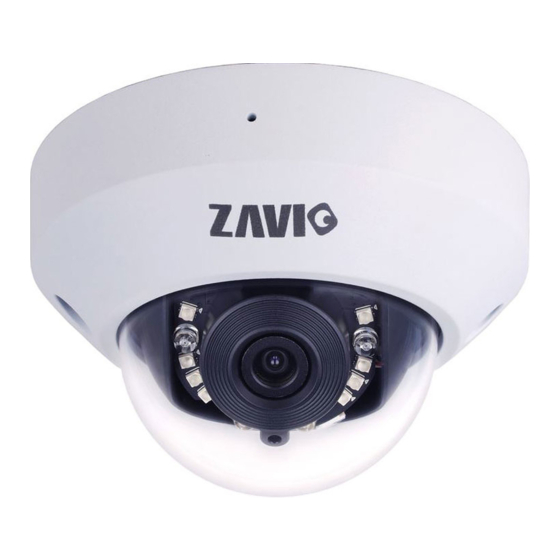

Summary of Contents for Zavio P6210
-
Page 2: Table Of Contents
Safety Instruction .................... 4 Safety Notice ....................4 Electromagnetic Compatibility (EMC) .............. 5 Overview......................6 ZAVIO P6210 Features and Specifications ............6 ZAVIO P6210 Package Contents ..............7 Minimum System Requirement ..............8 Web Interface Main Menu ................9 Setting_Information ..................13 Setting_Basic Setup .................. - Page 3 Setting_Event ....................34 Event Server ................... 34 8.1.1 Event Server ................... 34 8.1.2 SD Card ..................36 Event List ....................38 8.2.1 Event List ..................38 8.2.2 Schedule Recording ................40 Motion Detection ..................41 Tampering Detection ................. 42 Schedule ....................42 Setting_System ....................
-
Page 4: Safety Instruction
Updated versions of this document will be posted to www.zavio.com as they become available. The latest version of this user manual can also be found on the Installation CD accompanying this product, along with user manuals in other languages. -
Page 5: Electromagnetic Compatibility(Emc)
• If the unit emits smoke or an unusual smell. • If water or other foreign objects enter the cabinet. • If you drop the unit or damage the cabinet: -Disconnect the cable and the connecting cables. -Contact your authorized dealer or the store where you purchased the product. Transportation When transporting the camera, repack it as originally packed at the factory or in materials of equal quality. -
Page 6: Overview
• Supports Firefox, Safari and Mac OS • Supports Samba network storage • Multi-lingual user interface ONVIF 2.2 and Profile S compliant • Free 64 channels ZAVIO CamGraba 2.0 NVR software • Supports True Plug and Play Cloud Solution • ZAVIO P6210 Specifications... -
Page 7: Zavio P6210 Package Contents
NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP,3GPP/ISMA RTSP Video Management Software 64 channels ZAVIO CamGraba NVR software included 2.2 ZAVIO P6210 Package Contents You should find the following items in the packaging of your ZAVIO product. • Network dome camera • Quick installation guide • Installation CD -CamGraba2.0 NVR software... -
Page 8: Minimum System Requirement
2.3 Minimum System Requirement Your computer hardware should meet or exceed the following specifications: Item Requirements Minimum Intel® Cord 2 Duo or higher(Core i3 or above is recommended) Graphic Card 256MB RAM graphic cards(or equivalent on-board graphic cards) Minimum 1GB or RAM(2GB or above is recommended) Operating System Window 2000, 2003, XP, Vista or Windows 7 Mac OS Leopard10.5... -
Page 9: Web Interface Main Menu
3. Web Interface Main Menu The Live View Page Toolbar Function Click this button to take you back to the camera home page where you can live view the vide Click this button to open the administrator menu page, which can set up all the configuration... - Page 10 This button opens up the integrated online help providing useful tips on the various features. Click this button to pause or resume from pause the live video stream. The function is also available in VLC mode when you use non-IE browser Clicking this button will stop the video stream and the video display turns black (off).The function is also available in VLC mode when you use non-IE browser...
- Page 11 You can drag the box over the image, and you can adjust the magnification by moving the slider toward “T” (tele-zoom) or “W” (wide-angle). The more you move the slider toward “T,” the further you zoom in and details appear larger.
- Page 12 front of the camera lens and when you see them on the screen. If you want to minimize that delay, you need to set the video buffer to “Off.” Set- Press on set button to remember the current position of the camera, the preset positions will be named with “Preset1”...
-
Page 13: Setting_Information
4. Setting_Information The camera’s administrator menu allows you to configure all aspects of your ZAVIO network camera. This page provides a complete overview of the status of your network camera. -
Page 14: Setting_Basic Setup
5.1 Account The ZAVIO network camera allows the creation of different user accounts with different levels of access to the camera. There are three main user levels. The Viewer account only allows viewing the live video page of the camera. The Operator account allows viewing the live video as well as changing the image setup settings, such as brightness, contrast, etc. -
Page 15: Network
Account List: Here you Click the Add button to create a new user account. A popup window will open up. type in a user name and a password for the new account. Also, you must define the role of the new user account. -
Page 16: Pppoe
It is often the same IP address as the Gateway address. Internet Protocol Version 6(TCP/IPv6): IP address- The IPv6 IP address of ZAVIO camera is automatically assigned by converting the MAC address of the IP camera. User is not able to modify it. - Page 17 PPPoE is the most common form of connection for DSL-based Internet service. You can use this function to connect the camera directly to a DSL modem. A common application for this is where the network camera is installed in a remote location where no network is present.
-
Page 18: Date Time
5.3 Date Time On this page you can define the time settings of the camera. Current Date/Time: Current Date/Time- Displays the camera’s current time. PC Clock- This is the date and time of the computer you are currently using to connect to the camera. - Page 19 of the fact that this option sets the time only one time. From that point forward, the camera time will start to differ from your PC time as time progresses, and occasional re-synchronization will be necessary. Manual Setting- Lets you manually enter the time and date. As with the previous option, the camera’s time will become inaccurate as time passes and you will need to re-synchronize the time periodically.
-
Page 20: Video
5.4 Video The following three menus: Video Setting, Profile and Day/Night, allowing defining all video-related parameters. Note that the Day/Night option as well as other parameters may not be available on all models. 5.4.1 Video Setting Image: Image Rotated- Allows mirroring and rotating the image. Video Clip Format- Select which video profile the camera should be using for video clips it records in such as the network storage device, or SD card. -
Page 21: Profile
Display Position- Define where the overlay should appear on the live image. Privacy Mask: Privacy masking is the ability of the camera to back out (censor) certain parts of the live video. Example: The camera is installed in your company; for example, overlooking the warehouse. In one corner of the warehouse is the break room, where the employees go for their lunch breaks. -
Page 22: Day/Night
The ZAVIO network camera allows the creation of video streaming profiles. For each profile you can define the video resolution, the viewing area and the video codec that is to be used. Click “Add” to create a new profile, “Remove” to delete a profile or “Edit” to modify an existing profile. - Page 23 Some ZAVIO network cameras are equipped with active IR LEDs providing the ability to capture video in complete darkness. Note, that if your camera is not equipped with IR LEDs, this menu will not be available. Also note that some menu items will vary depending on your camera model.
-
Page 24: Audio
IR Mode- Auto-- This ensures that the IR lights go on whenever the IR cut filter has been removed. Active-- Keeps the IR LEDs illuminated regardless of the state of the IR cut filter. To ensure maximum life of the IR LEDs, this option shouldn’t be used, unless your camera is installed in a dark environment which requires IR lighting at all times. - Page 25 Audio Channel: Full Duplex- Select it for simultaneous communication in both direction between the connected administrator and IP Camera. It means both parties can speak and be heard at the same time. Half Duplex- Select it for communication in both directions, but only one direction at a time.
-
Page 26: Setting_Live View
6. Setting_Live View The Live View menu provides access to the video settings, which are exactly the same as described in the last section 5.4 & 5.5. It also provides access to advanced image settings and allows configuring the view areas that we discussed in the previous section. Note that depending on your camera model, the options on the screen may differ from the screen shots in this user manual. -
Page 27: Image Setting
Gain- The ZAVIO camera is equipped with an electronic gain mechanism which helps capture image in dark conditions. The higher the gain, the brighter the image, but the downside is that the image contains more noise. - Page 28 White Dynamic Range: WDR stands for Wide Dynamic Range and allows the ZAVIO network camera to capture video in areas with high contrasting objects; e.g., extremely bright and extremely dark. Activate WDR by setting it to “Auto” and then adjust the level that controls the amount of WDR enhancement.
-
Page 29: Ptz Setting
6.4 PTZ Setting You may set the speed of digital pan/tilt zoom, and also speed for preset/patrol. The range goes 1-100 (slow to fast) 6.4.1 Patrol Settings... -
Page 30: Ptz Control
Control Panel: This can be set up the selected view area in every profile. Besides the viewing window there is a PTZ control panel to go to the direction you want. Note: Before operating this function, you must set the resolution beneath 1920x1080, and move your view area to your desired position. -
Page 31: Setting_Playback
7. Setting_Playback The ZAVIO network camera offers an integrated playback feature, which allows playing back videos from your local HDD, from a network storage server or the optional SD storage card.Note that only IE can playback client PC file. 7.1 Network Storage In the event settings (see section 8) you can define a local network storage drive (NAS) as a location for the camera to save videos. - Page 32 Above: Each day has its own folder. Above: Each hour of the day has its own folder. Above: Individual videos can be played back by selecting them and clicking the play button.
-
Page 33: Local Storage
Above: Playback of one event recording in the web browser (MSIE only). Item Description Move one folder up Refresh the view Delete the selected file Select all items in the folder Playback the selected video Download selected item to your computer’s hard drive. 7.2 Local Storage If your camera is equipped with a local storage option (recording on... -
Page 34: Setting_Event
8. Setting_Event Your ZAVIO network camera supports so-called events. When an event occurs, you can have the camera perform an action, e.g., record a video to a remote location. This section describes how to set up event servers, events, motion detection and the scheduler. - Page 35 Server Setting: Server Type- Select “FTP” Network Address- Type in the address of your FTP server. Server Port- Leave at 21, unless your FTP server uses a different port. User Name and password- Provide valid login credentials for the FTP server. Passive Mode- Select “On”...
-
Page 36: Sd Card
Add a HTTP Server: A HTTP server can be used by the camera to trigger a script on a remote server if an event occurs. User name, password and proxy fields are all optional. Adding a Network Storage: Server Type- Select “Network Storage.”... - Page 37 SD Card: Card status- Indicate the current available capacity and the maximum capacity if the SD card Create Folder- Name a folder to store the video data in SD card, if you leave this column blank, a folder named with date time will be created Overwrite- enable this feature to let video data be deleted when SD card is almost full Noted: Only FAT32 is supported, please do not format the SD card to other format.
-
Page 38: Event List
8.2 Event List Now that we have created an Event Server, we can proceed with setting up actual events. 8.2.1 Event List Click on the “Add” button to begin. Trigger: You need to specify the trigger type. The drop-down list below shows the available options. Note that depending on your camera model, the options will vary. - Page 39 use 3 party motion detection sensors that trigger the camera to start a recording. Periodical- This trigger type can be used if you want the camera to perform the same action over and over again, based on a time period. A typical application would be to have the camera refresh an image on your web site every 60 seconds.
-
Page 40: Schedule Recording
Send Notification- This action type uses the HTTP event server. You can use this to have the camera trigger a script on a server. Activate Digital Output- If your camera is equipped with digital outputs, then you can use them to perform an action. You can specific how long you want the camera to trigger the event once you have selected Digital 1. -
Page 41: Motion Detection
8.3 Motion Detection The ZAVIO network camera is able to monitor the video footage for movements and trigger an alert if motion has been detected. This motion detection does not utilize passive infrared, but instead it relies on a frame by frame comparison of the video footage the camera captures. -
Page 42: Tampering Detection
8.4 Tampering Detection If the image of the camera is obstructed, e.g., because someone covers up the lens or moves the image out of focus, the camera notices this and generates a trigger alert. You can define how long you want the alert state to remain active after the event has occurred. 8.5 Schedule The Network Camera supports event trigger actions that can be based on a schedule. - Page 43 be used, as an example, to only activate motion detection between 9 pm and 6 am during business days and around the clock on the weekends. You can set up individual schedules for each event type, so that motion detection is activated between 7 pm and 7 am, but tampering detection is only activated between 10 pm and 4 am.
-
Page 44: Setting_System
9. Setting_System The system menu provides access to a variety of system settings of your ZAVIO network camera. 9.1 Maintenance... - Page 45 Before you begin, make sure that you have obtained a proper firmware from the ZAVIO web site. If you are not 100% sure about this, do not proceed. Instead, contact the technical support team to verify the firmware version.
-
Page 46: Date Time
9.2 Date time Refer to section 5.3... -
Page 47: Security
9.3 Security 9.3.1 Account Refer to 5.1 9.3.2 IP Address Filter... -
Page 48: Https
Once you enabled it, the listed IP address are allowed or denied access to the network camera. Add the IP address that you’d like to allow or deny, select allow or deny from the list and save 9.3.3 HTTPS Secure Sockets Layer (SSL) is a cryptographic protocol that provides security for communications over networks such as the Internet. -
Page 49: Network Basic
9.4 Network Basic 9.4.1 TCP/IP Refer to section 5.2.1 9.4.2 PPPoE Refer to section 5.2.2... -
Page 50: Network Advanced
9.5 Network Advanced 9.5.1 RTSP General: RTP Port Range- The default value of port range is 5000 ~ 7999 and can be changed from 1124 to 65534. RTSP Port- RTSP stands for Real Time Streaming Protocol. RTSP is supported by most media clients, such as Real Player, VLC and QuickTime. - Page 51 Multicast: Your ZAVIO network camera supports multicast streaming. The differences between multicast and unicast streaming are explained below. Note that for most users the multicast streaming feature will not be of any importance and most likely the required network infrastructure for proper multicast streaming is not in place.
-
Page 52: Upnp
Video Port- You can specify the video ports here, or you can use the auto value, which should be good for most occasions. Audio Port- You can specify the audio ports here, or you can use the auto value, which should be good for most occasions. -
Page 53: Bonjour
you enable UPnP port forwarding, the screen will reveal additional options. These are the ports the camera will instruct the router to open. Depending on the camera model, you may see different ports. The new H.264 Megapixel cameras have a simpler port model and require fewer ports than the other models. -
Page 54: Ddns
9.5.4 DDNS If you are not planning on connecting to the network camera over a remote connection, but only in your local network, you can skip this section. Dynamic DNS is a network service that provides the capability for a networked device, such as a router or computer system, to notify a domain name server to change, in real time (ad-hoc) the active DNS configuration of its configured host names, addresses or other information stored in DNS. -
Page 55: Digital I/O
9.6 Digital I/O If your ZAVIO network camera is equipped with a digital I/O interface, you can configure the connections on this page. The screen shows the current status of input 1 and output 1. The screen also allows you to define the “normal”... -
Page 56: Led
9.7 LED You can enable or disable the operation LEDs on your ZAVIO network camera. Hiding the LED indicator will make the camera appear to be offline while in fact it is operational and captures video. -
Page 57: System Log
9.8 System Log The Network Camera features a log function for system messages. These are system messages about the camera start-up procedure, e-mail deliveries, FTP uploads, motion detection and more. The camera stores the messages in its internal memory and displays them on the system log screen. Since memory is limited, the messages will eventually be truncated. - Page 58 The remote log function uses the System Log Protocol, which is a standard for forwarding log messages in an IP network. System Log is a client/server protocol. The System Log sender (the Network Camera) sends a small (less than 1KB) textual message to the System Log server.
-
Page 59: Video Surveillance Software
Video Surveillance Software The ZAVIO Network Camera ships with a surveillance application that can monitor and record up to 64 network cameras. ZAVIO CamGraba 2.0, the free-bundled network video management software, works perfectly with all ZAVIO network products. ZAVIO CamGraba 2.0 is designed with reliable performance and easy-to-use features offering efficient video management solution for diversely small-to-mid size IP surveillance applications.
