Zavio P6210 Quick Installation Manual

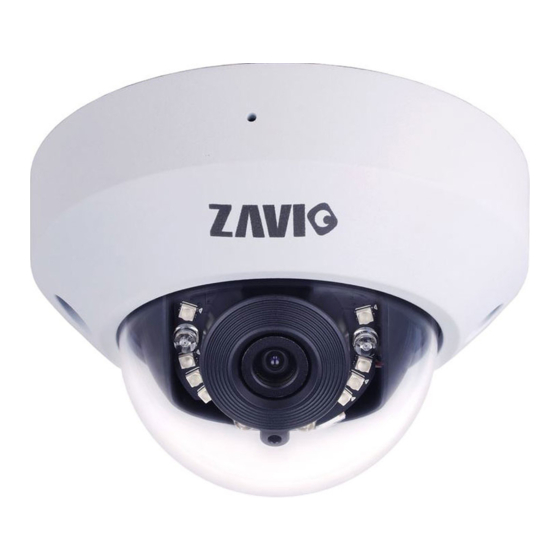

Pan/tilt ir dome ip camera
Hide thumbs Also See for P6210:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
P6210
PN: 86085A1000010
1
86085A1000000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P6210 and is the answer not in the manual?

Questions and answers

Related Manuals for Zavio P6210

Summary of Contents for Zavio P6210

  • Page 1 P6210 PN: 86085A1000010 86085A1000000...

  • Page 3: Table Of Contents

    Zavio P6210 Quick Installation Guide Please follow the installation steps below to set up P6210 Pan/Tilt IR Dome IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.2 I/O Terminal Block Circuit. See P.3 I/O Terminal Block Pin Definition.

  • Page 4: Physical Overview. See

    Physical overview Top cover Dome bubble Slide cover Leave the slide cover if you would like to plug in cables through the side of top cover and through a hole on the ceiling or wall. Built-in Microphone External I/O connector Routing hole DC 12V/1A Lens...

  • Page 5: I/O Terminal Block Circuit. See

    I/O Terminal Block Circuit I/O Terminal Block Pin Definition This Camera provides an external I/O terminal block which is used to connect input/ output devices. The pin definitions are described below. Definition Description Max. V/A Ground 12V DC + 12V DC 1.2W Connect the wires of the audio input device to GND (Pin 1) and Audio Input...

  • Page 6: Led Indicator Definition. See

    LED Indicator Definition Color Indication Network Blue Flash blue while Network activity. Steady red for booting up process Blue Steady blue for booting up completion Power Flash purple during firmware upgrading; when reset button pressed for at least 5 sec. Purple to factory default Unlit...
  • Page 7 c. Connect all cables c1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2. Connect the IP Camera to a normal Hub / Switch / Router. c2. Power over Ethernet (PoE) 1. Connect the IP Camera to a PoE-enabled Hub / Switch / Router. Note: If using a non-PoE switch, please use a PoE power injector to connect the camera.
  • Page 8 d. To adjust the view angle- Pan/Tilt Mechanism Design 1. Turn the lens module right and left to your desired pan position. 2. Turn the lens module up and down to your desire tile position. e. Completion 1. Clean the dome bubble to remove the dust and finger print. 2.

  • Page 9: Access The Ip Camera Using Intelligent Ip Installer. See

    Microsoft OS: Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer 1.
  • Page 10 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.

  • Page 11: Mac Os Using Safari Browser. See

    Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. The monitor image will be displayed in your browser. camera.

  • Page 12: Change The Web Interface Into Your Preferred Language. See

    Lighting environment setting The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting environment of your country. Go to “Setting > Live View > Camera Setting > Image Setting”, select the environment setting you wish. Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface.

  • Page 13: Application Of Ip Camera. See

    Application of IP Camera...
