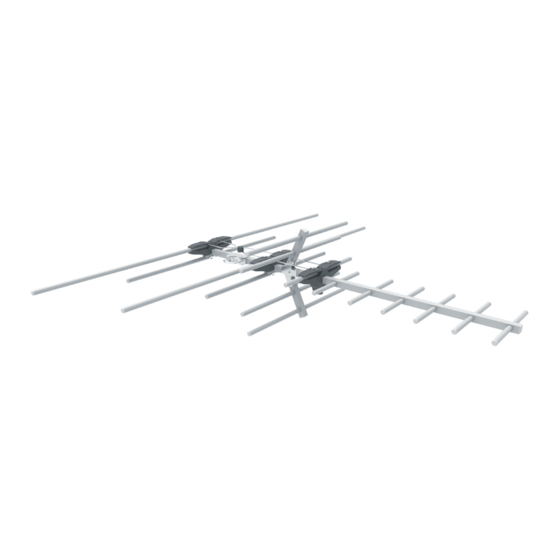

- Page 1 DIGITAL HD TV ANTENNA INSTALLATION GUIDE DESIGNED FOR DIGITAL TV Full HD 1 080 CHANNELS 6 - 12 CHANNELS 28 - 38 AA1200 MEDIUM FOR METRO + OUTER AREAS...
-
Page 2: Safety Points
Thank you for choosing the Antsig range of quality audio video equipment. The D-MAX Range of antenna have been designed and tested in Australia using a state-of-the-art Anechoic Chamber. This ensures that your antenna has been optimised to capture high definition digital TV signals. -
Page 3: Installation
INSTALLATION Follow these instructions to install your prime outdoor antenna: Stage 1. UNFOLDING ANTENNA Grasp a folded element at the back of the antenna, close to the pivot point (within 300mm) and rotate outwards until it clicks firmly into place. Repeat this for the elements on the bottom side. - Page 4 Using the Antsig signal strength meter (AP9000) can greatly improve your success in achieving the optimal direction for maximum signal strength.
- Page 5 DIGITAL HD TV ANTENNA INSTALLATION GUIDE Antenna mast clamp which holds the antenna to the mast has been pre-installed on the antenna. Clamp includes two v blocks, one u-bolt, two washers and Washers two nuts. & Nuts Follow below steps to mount your antenna: 1.
- Page 6 Stage 4. CABLING ANTENNA Dielectric Core Coaxial Cable Connection*: Conductor Follow below steps for coaxial cable connection: 1. Remove cable boot and RG6 male F-connector provided from the sealed poly bag. 2. Slide the cable boot down the coaxial cable and fit the RG6 male F-connector to the end of the cable Strip Cable 10mm...
- Page 7 Stage 5. FINAL INSTALLATION Final installation of the antenna should be done as per example below: ANTENNA BALUN TRANSMITTER ANTENNA MAST ‘F’ CONNECTOR TV OUTLET RG6 QUAD CABLE SPLITTER CABLE DRIP LOOP FLY LEAD ‘F’ CONNECTOR TV OUTLET OPTION 1. OPTION 2.
-
Page 8: Warranty
ANTSIG is proudly produced by Arlec Australia Arlec Australia Pty. Ltd. ACN 009 322 105 (“Arlec”) gives the Warranty.
