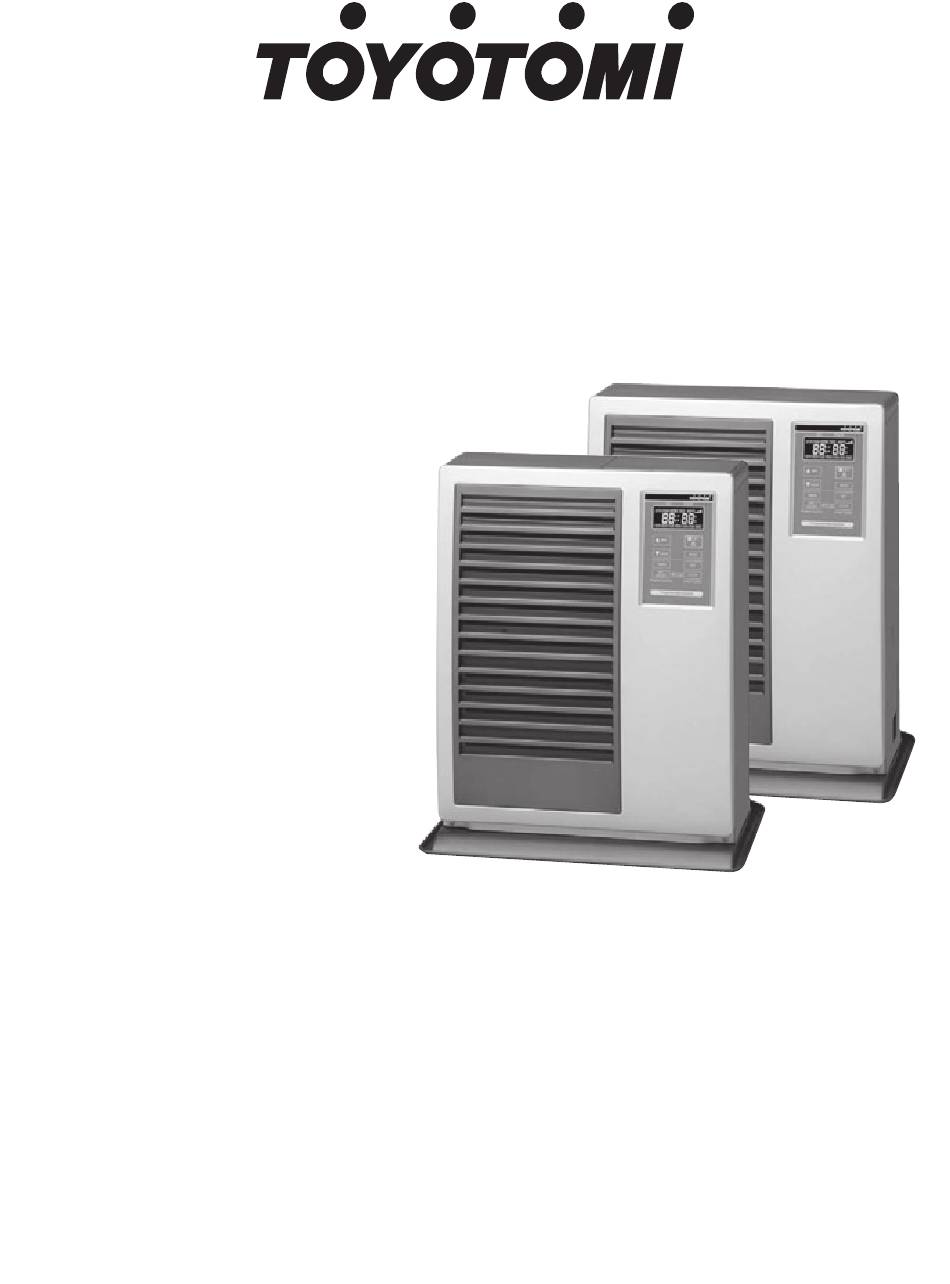

MODEL
FF-V30T/FF-V30
(Type C)
GB
OPERATING MANUAL ........................................................................................... PAGE 1
DE
GEBRAUCHSANWEISUNG ................................................................................... PAGE 17
FR
MANUAL D'UTILISATION ...................................................................................... PAGE 33
NL
GEBRUIKSAANWIJZING ....................................................................................... PAGE 49

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FF V30T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toyotomi FF V30T

Summary of Contents for Toyotomi FF V30T

  • Page 1 MODEL FF-V30T/FF-V30 (Type C) OPERATING MANUAL ................... PAGE 1 GEBRAUCHSANWEISUNG ................... PAGE 17 MANUAL D’UTILISATION ..................PAGE 33 GEBRUIKSAANWIJZING ..................PAGE 49...

  • Page 2: Section A: Specifications

    ENGLISH IMPORTANT 1) READ AND UNDERSTAND INSTRUCTIONS BEFORE INSTALLING OR USING HEATER. 2) RETAIN INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. 3) CHECK LOCAL AUTHORITY & BUILDING CODES FOR INSTALLATION REQUIREMENTS. SECTION A: SPECIFICATIONS Model: FF-V30T/FF-V30 Heater Efficiency: 92.4% (1) Heat Rating: High - 3.00 kW (10,200 BTU/h) Med - 2.04 kW ( 6,950 BTU/h)

  • Page 3: Section B: Safety Tips For Operation

    ENGLISH SECTION B: SAFETY TIPS FOR OPERATION CAUTION: Heater and vent pipe system must be properly installed before operation. Please follow instructions under “Installation”, Section I. RIGHT WRONG Danger PARAFFIN 1. NEVER use any fuel other than Paraffin. NEVER USE GASOLINE. Use of gasoline can lead to uncontrollable flames, resulting in destructive fire.

  • Page 4: Section D: Operating Controls And Part Names

    ENGLISH How to Store It . . . ALWAYS: Store in a clean container, clearly marked PARAFFIN. ALWAYS: Store away from direct sunlight, heat sources or extreme temperature changes. NEVER: In a glass container, or one that has been used for other fuels. NEVER: For longer than six months.
  • Page 5 ENGLISH 12. CHILD LOCK indicator 11. POWER SAVER indicator 13. BURNING MODE indicator 10. TIMER indicator 9. AUTO indicator 16. ON/OFF TIMER indicator 14. ˚F/˚C indicator 15. SUN MON TUE WED THU FRI SAT indicator 8. ON lamp 4. TEMP/TIMER/ 1.

  • Page 6: Section E: Operation

    ENGLISH SECTION E: OPERATION BEFORE IGNITION 1. Filling Fuel FF-V30T: • Do not fill the removable tank in the living room, but in a more suitable place(there can always be some spillage). • Do not refuel the heater while in operation or still hot. Follow the procedure below: 1) Make sure that the heater is switched off.
  • Page 7 ENGLISH NOTE: When pressing the “sMIN.” button at the position of “SAT”, you can hear the beep sound and “SAT” is not changed any more. When pressing the “tHOUR” button at the position of “SUN”, you can hear the beep sound and “SUN” is not changed any more. 2.
  • Page 8 ENGLISH CHILD LOCK OPERATION The childproof lock can be used to prevent children accidentally changing the heater settings. When the heater is burning and the childproof lock is on, the heater can only be switched off. Other functions are blocked then. If the heater has already been switched off, the childproof lock also prevents accidental ignition of the heater.
  • Page 9 ENGLISH 4) Set the temperature of the program The set temperature “21” will be shown on the display and it will flash. 1. Press the “sMIN.” button or the “tHOUR” button to set the temperature of the program. 2. Press the “SET” button to complete the set the temperature of the program and move to the next step (5) Set a day of the week of the program).

  • Page 10: Automatic Cleaning Mode

    ENGLISH MANUAL COMBUSTION IMPORTANT: This feature is for testing purpose only! This heater also can be kept burning at desired combustion mode (High, Medium or low) manually, regardless of room temperature. 1. Press the “sMIN.” button and “tHOUR” button at the same time for more than three (3) seconds when ON / OFF switch is “ON”.

  • Page 11: Turning Heater Off

    ENGLISH TURNING HEATER OFF Press ON/OFF switch to “OFF” position. ON lamp will flash and will go out. Circulation fan and blower motor continue to run for approx. three (3) minutes to cool down the heater. NOTE: ON lamp goes out when the fan stops. NOTE: If ON/OFF switch is pressed during the weekly timer operation mode, the weekly timer operation mode is canceled.
  • Page 12 This inspection should include: a combustion check; flue pipe check; burner assembly check; cleaning all necessary parts and replacing gaskets as needed. Please ask your authorized TOYOTOMI dealer for details and scheduling. AUTOMATIC IGNITER CLEANING SYSTEM The igniter cleaning mode prolongs the igniter life.

  • Page 13: Section G: Troubleshooting

    ENGLISH SECTION G: TROUBLESHOOTING BEFORE REQUESTING A SERVICE CALL The following symptoms are normal during operation of the heater. CONDITION REASON White smoke or smell inside home when the heater Machine oil used in factory assembly, or transit is first used. dust burns off the surfaces of the burner or heat exchanger.

  • Page 14: Section H: Long Term Storage

    ENGLISH SECTION H: LONG TERM STORAGE At the close of each heating season, or when you do not plan to use your heater for an extended period, the following procedures are recommended. 1. As the end of the season approaches, calculate your fuel purchases so that you can use up all the fuel you have on hand.

  • Page 15: Section I: Installation

    STANDARD INSTALLATION PARTS The following standard installation parts are enclosed with heater. For alternate installation methods, you may need to purchase additional accessories which are available from your TOYOTOMI dealer. See “Accessory Parts”. Wall Bracket (2 sets) (PART #17212689) Tapping Screw (2) (PART #17208678)

  • Page 16: Installation Advice

    ENGLISH INSTALLATION ADVICE 1. Intake air and exhaust flue pipe openings of the Flue Pipe must be fully exposed to outside. The Flue Pipe must not vent into a chimney, garage, basement, under-floor or ceiling cavity, or any enclosed area, or be installed vertically, because the Flue Pipe is a “Heat Exchanger”...

  • Page 17: Installation Of Heater And Flue Pipe

    ENGLISH INSTALLATION OF HEATER AND FLUE PIPE A) Before commencing any installation work, check that the proposed installation will comply with Building Code requirements and Local Consent Authority rules that may apply to vented heaters in your area. (Check your Local Authority website, or consult your Installer / Supplier.) B) The Flue Pipe is designed to be installed through the wall of any conventional building cladding, including Brick, Hebel, Linear, Gibraltar and Plaster Board, Tiles, Weatherboard, Plastered Polystyrene, and metal...
  • Page 18 TOYOTOMI CO., LTD. 5-17, Momozono-cho, Mizuho-ku, Nagoya, 467-0855 Japan Printed in Japan http://www.toyotomi.jp Rev. 06/17 8376002060...
